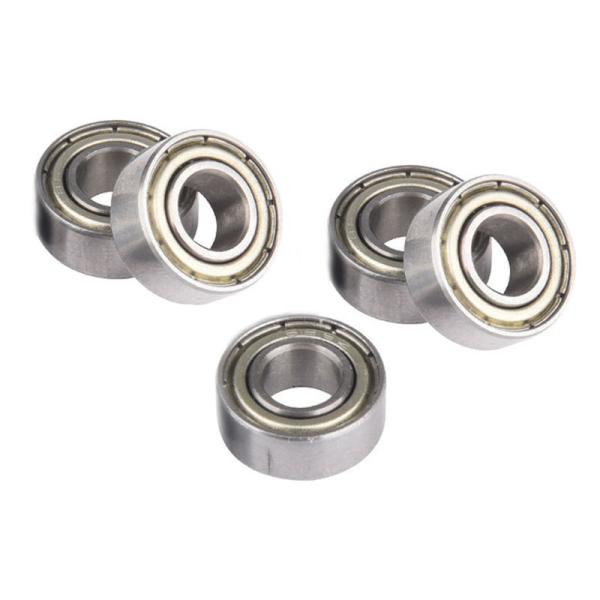

Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm
Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm
Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm
Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm
Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm
Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm
Specifications
Brand Name :
deep dream
Model Number :
683
Place of Origin :
Shaanxi, China
MOQ :
10 PCS
Payment Terms :
Western Union, T/T
Supply Ability :
200000 pcs per day
Packaging Details :
1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag
Product name :
Miniature Ball Bearings
Type name :
683
Service :
OEM or customer logo acceptable
Size :
3*7*3(mm)
Material :
Chrome steel, Gcr15
Package :
According to buyer's request
Feature :
Long Life High Speed
Description

Miniature bearing 683 double-sided sealed deep groove ball bearing 683 ZZ 3*7*3mm

Description: of Deep Groove Ball Bearing 683

Miniature bearings, sometimes referred to as instrumentation bearings or miniature bearings, are used in a variety of applications. Our chrome steel miniature bearings are also available with flanged outer rings. Most of our chrome steel miniature bearings are open or have metal shrouds. Larger sizes available with rubber or PTFE contacting seals or low friction non-contacting rubber seals. Open bearings provide light oil lubrication. Shielded or sealed bearings are usually provided with grease lubrication, but shielded bearings can be supplied with instrument oil for low speed, low friction applications. Thanks to our in-house relubrication facilities, these miniature bearings can be supplied with customer specified oil, grease or dry lubricant.

Specifications: of Deep Groove Ball Bearing 683

Product Name
Double sided sealed bearing 683 small ball bearing deep groove ball miniature bearing 683 ZZ
Brand
OEM
Model No
683
Sizes(mm)1
3*7*3(mm)
Material
Chrome steel, Gcr15, stainless steel
Sealed Type
ZZ (Steel Shield) 2RS (Rubber Seal)
Precision
P0,P6,P5
Clearance

C0 C2 C3 C4
Features
High Temperature Resistance,low noise, long life

内径 (D) 外径 (D) 高 度 倒角(r) 基本 动负荷 CrtNIBasic Dynamic 基本 静负荷 CorlN)Bask Static .扱.限转速 Limiting Speed 型号 Reference
开放型 (B) Open 防尘盖型 (B1 ) Shield 开放员 Open 防尘蓋型 Shield 润滑脂 Grase 润滑剤 Oil 开放型 Open 防尘盖型 Shield
,100( Irpm
3 1 - 0.05 — 80 23 130 150 681 —
1 3 1.5 - 0.05 - -
4 1.6 - 0.1 — 140 36 100 120 691 —
4 1.2 2 0.05 0.05 112 33 100 120 681X 681XZZ
1.5 5 2 2.6 0.15 0.15 237 69 85 100 691X 691Xzz
6 2.5 3 0.15 0.15 330 98 75 90 601X 601 Xzz
5 1.5 2.3 0.08 0.08 169 50 85 100 682 682zz
5 2 2.5 0.1 0.1 169 50 85 100 MR52 MR52zz
6 2.3 3 0.15 0.15 330 98 75 90 692 692zz
d 6 2.5 2.5 0.15 0.15 330 98 75 90 MR62 MR62zz
7 2.5 3 0.15 0.15 385 127 63 75 MR72 MR72zz
7 2.8 3.5 0.15 0.15 385 127 63 75 602 602zz
6 1.8 2.6 0.08 0.08 208 74 71 80 682X 682Xzz
2.5 7 2.5 3.5 0.15 0.15 385 127 63 75 692X 692Xzz
8 2.5 - 0.2 — 560 179 60 67 MR82X —
8 2.8 4 0.15 0.15 550 175 60 71 602X 602XZZ
6 2 2.5 0.1 0.1 208 74 71 80 MR63 MR63zz
7 2 3 0.1 0.1 310 111 63 75 683 683zz
8 2.5 - 0.15 - 560 179 60 67 MR83 MR83zz
8 3 4 0.15 0.15 560 179 60 67 693 693zz
3 9 2.5 4 0.2 0.2 570 187 56 67 MR93 MR93ZZ
9 3 - 0.15 - 570 187 56 67 603 603zz
10 4 4 0.15 0.15 630 218 50 60 623 623zz
13 5 5 0.2 0.2 1300 405 40 48 633 633zz
7 2 2.5 0.1 0.1 310 115 60 67 MR74 MR74ZZ
8 2 3 0.15 0.15 395 139 56 67 MR84 MR84zz
9 2.5 4 0.1 0.1 640 225 53 63 684 684zz
10 3 4 0.2 0.2 585 204 48 56 MR104 MR104ZZ
4 11 4 4 0.15 0.15 960 345 48 56 694 694zz
12 4 4 0.2 0.2 960 345 48 56 604 604zz
13 5 5 0.2 0.2 1300 485 40 48 624 624zz
16 5 5 0.3 0.3 1730 670 36 43 634 634zz


Advantage: of Deep Groove Ball Bearing 683

1. With a High Load-Bearing Capacity
2. Low Noise and More Quiet
3. Long Life,Stable Performance and Durable
4. Have Low Rolling Resistance and Work in Sub-Zero Temperatures

Our Services: of Deep Groove Ball Bearing 683

1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.

Applications: of Deep Groove Ball Bearing 683

Examples include gyroscopes, anemometers, flow meters, micro-gearboxes, small motors, and radio-controlled models.

Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm

Miniature Bearing 683 Double Sided Sealed Deep Groove Ball Bearing 683 ZZ 3*7*3mm

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing

4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
