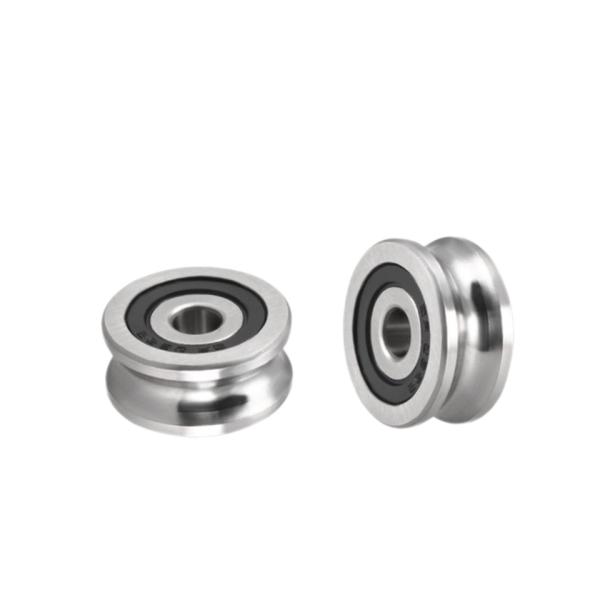

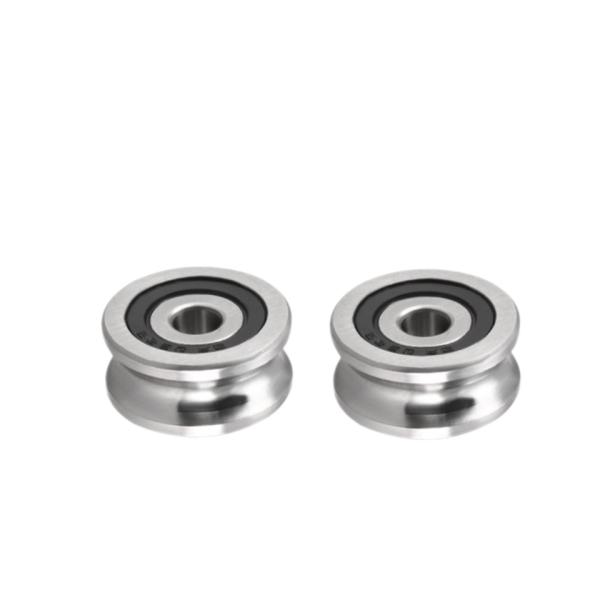

SG15 U Groove Track Roller Bearings 5x17x8mm Guide Roller For Computer Embroidery Machine
SG15 U Groove Track Roller Bearings 5x17x8mm Guide Roller For Computer Embroidery Machine
SG15 U Groove Track Roller Bearings 5x17x8mm Guide Roller For Computer Embroidery Machine
SG15 U Groove Track Roller Bearings 5x17x8mm Guide Roller For Computer Embroidery Machine
Specifications
Brand Name :
deep dream
Model Number :
SG15
Place of Origin :
Shaanxi, China
MOQ :
10 PCS
Payment Terms :
Western Union, T/T
Supply Ability :
200000 pcs per day
Packaging Details :
1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag
Product name :
Track Roller Bearing
Type name :
SG15
Service :
OEM Customized Services
Size :
5x17x8mm
Package :
Original Package
Material :
Chrome Steel GCR15
Quality standard :
ISO9001:2008 SASO CE PVOC
Description

High Quality SG15 SG15-1 SG15-10 5x17x8mm Computer Embroidery Machine U Groove Guide Wheel Track Roller Bearing

Description: of Track Roller Bearing

SG15 (SGB5) guide rollers are mainly used for flat guide rails that have a particularly compact installation space. The fixed bearings matched with the guide rollers will not protrude or seldom protrude to the bearing plane after being installed into the guide rollers. SG15 (SGB5) rollers are of high quality Made of bearing steel, processed by heat treatment and precision grinding, and filled with long-life high-quality grease. we can also provide various rollers with R-angle outer ring, internal thread, concentric shaft, eccentric shaft and corrosion-resistant stainless steel.

SG series provides guide roller models as follows: SG10 (SGB4), SG15 (SGB6), SG15-10, SG15-1, SG20 (SGB8), SG20-1, SG25 (SGB10), SG25-1, SG35 (SGB15)

Specifications: of Track Roller Bearing

Product Name
Track Roller Bearing
Brand
Deep dream&OEM
Model No
 SG15
Sizes(mm)
5x17x8mm
Material
Chrome Steel, Bearing steel; GCr15; carbon steel, brass
Sealed Type
2RS rubber seals/ ZZ metal shields/Open
Precision
P0, P5, P6
Clearance
C0, C2, C3, C4
Packing
Original Package

Model Weight Size (mm)
≈ (g) dw D C
SG15 8 5 17 8
SG15-10 9 5 17 8
SG20 25 6 24 11
SG25 49 8 30 14
SG35 136 12 42 19
SG15N 8 5 17 8
SG20N 25 6 24 11
SG25N 49 8 30 14
SG35N 136 12 42 19
LFR 50/5-4 N 8 5 16 7
LFR 50/5-5 8 5 17 7
LFR 50/5 N 8 5 17 7
LFR 50/8 N 25 8 24 11
LFR 50/8-8 N 25 8 24 11

Advantage:
1. High speed, high precision
2. Long service life
3. Low noise and good performance

Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported

Applications:

SG series guide roller and LFR series guide roller bearing performance, the unique "sink head" design makes SG series guide roller mainly applied to the flat surface, especially compact roller mounting space, and form a complete set of guide roller fixed bearing loaded after the guide roller does not highlight or little highlight to the bearing plane. Used in embroidery machines, CNC equipment.

U-groove bearings are widely used in house

SG15 U Groove Track Roller Bearings 5x17x8mm Guide Roller For Computer Embroidery Machine

FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing


4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
