Precision U Groove Bearing Roller Guide High Quality LFR5208 40KDD 40x98x36mm
Precision U Groove Bearing Roller Guide High Quality LFR5208 40KDD 40x98x36mm
Precision U Groove Bearing Roller Guide High Quality LFR5208 40KDD 40x98x36mm
Precision U Groove Bearing Roller Guide High Quality LFR5208 40KDD 40x98x36mm
Specifications
Brand Name :
deep dream
Model Number :
LFR5208KDD
Place of Origin :
Shaanxi, China
MOQ :
10 PCS
Payment Terms :
Western Union, T/T
Supply Ability :
200000 pcs per day
Packaging Details :
1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag
Product name :
Track Roller Bearing
Type name :
LFR5208KDD
Service :
OEM Customized Services
Size :
40*98*36mm
Package :
Original Package
Material :
Chrome Steel GCR15
Seals type :
ZZ 2RS OPEN
Description

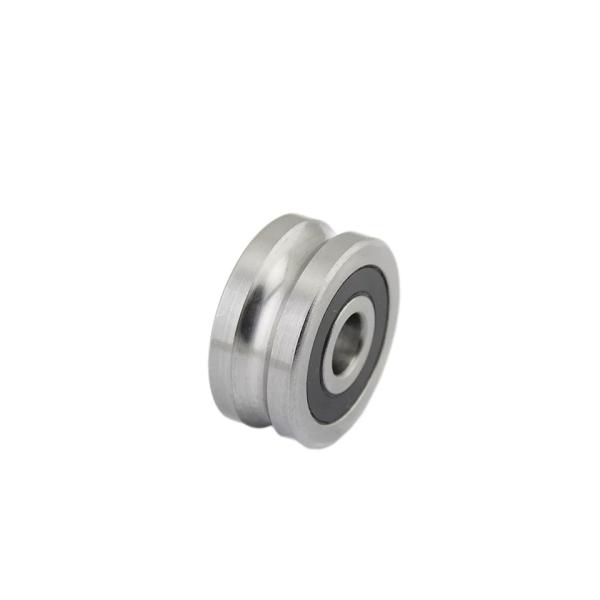

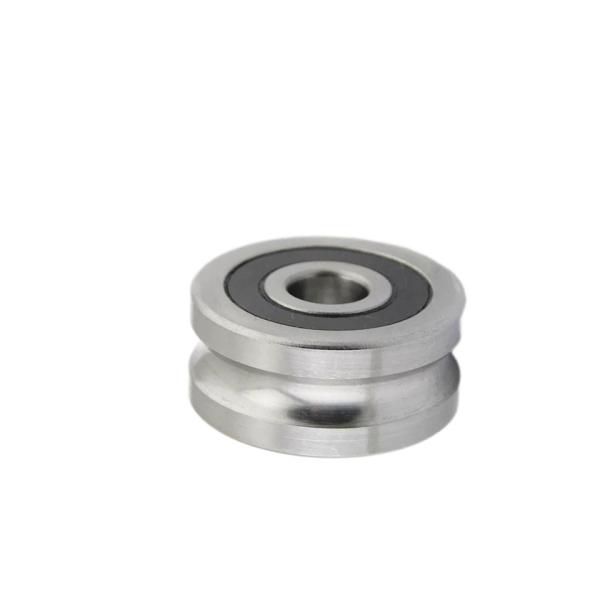

High Quality Precision U Groove Track Roller Bearing LFR5208 40KDD 40*98*36mm

Description: of Track Roller Bearing
1. LFR series roller linear guide rail wheel in the most widely used, economical and practical products that can fit in the cylindrical guide.
2. contacting wheel and rail for two-point contact, having a good contact performance.
3. Roller double row angular contact ball bearing design and thickening of the internal structure of the outer ring, the wheel has a higher carrying capacity.
4. The roller bearing with high-quality steel, heat treatment, precision grind, and are filled with long-life high-quality multi-purpose grease.
Wheel dust metal dust cover (KDD) or rubber seal (NPP).

Specifications: of Track Roller Bearing

Product Name

Track Roller Bearing
Brand
Deep dream&OEM
Model No
LFR5208KDD
Sizes(mm)
40*98*36mm
Material
Chrome Steel, Bearing steel; GCr15; carbon steel, brass
Sealed Type
2RS rubber seals/ ZZ metal shields/Open
Precision
P0, P5, P6
Clearance
C0, C2, C3, C4
Packing
Original Package

Roller NO.
Dimensions(mm)
Load Ratings
W(g)
dw
d
D
C
B
A
Cw(KN)
Cow(KN)
LFR5200KDD
50
8
10
32
14
14
18
5.6
3.6
LFR5201KDD
68
10
12
35
15.9
15.9
20.65
8.5
5.1
LFR5201KDD-12KDD
68
12
12
35
15.9
15.9
21.75
8.5
5.1
LFR5201KDD-14KDD
107
14
12
39.9
20
19
24
8.9
5
LFR5301KDD
130
10
12
42
19
15.9
24
13
7.7
LFR5202KDD
80
12
15
40
15.9
19
23.4
10
7.8
LFR5302KDD
163
10
15
47
19
20
26.65
16.2
9.2
LFR5204KDD
195
16
20
52
20.6
20.6
31
16.8
9.5


Advantage:
1. High speed, high precision
2. Long service life
3. Low noise and good performance

Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported

Applications:
SG series guide roller and LFR series guide roller bearing performance, the unique "sink head" design makes SG series guide roller mainly applied to the flat surface, especially compact roller mounting space, and form a complete set of guide roller fixed bearing loaded after the guide roller does not highlight or little highlight to the bearing plane. Used in embroidery machines, CNC equipment.
U-groove bearings are widely used in house
Precision U Groove Bearing Roller Guide High Quality LFR5208 40KDD 40x98x36mm
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
