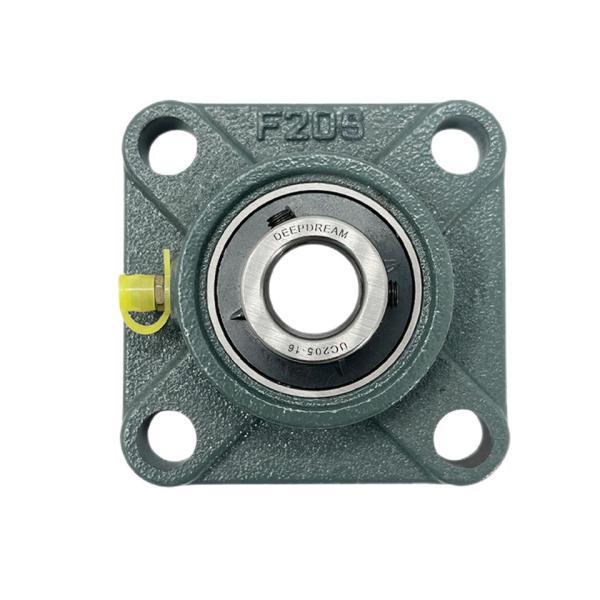

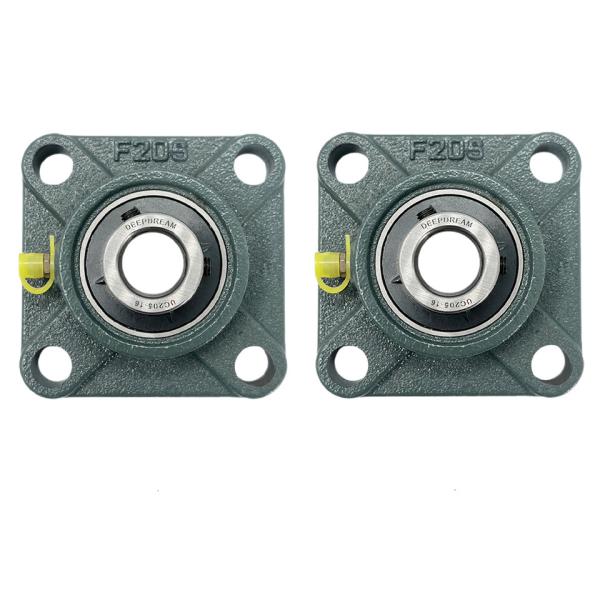

High Quality F205 Flange Units Square Chrome Pedestal Block Bearing UCF205-16
High Quality F205 Flange Units Square Chrome Pedestal Block Bearing UCF205-16
High Quality F205 Flange Units Square Chrome Pedestal Block Bearing UCF205-16
High Quality F205 Flange Units Square Chrome Pedestal Block Bearing UCF205-16
Specifications
Brand Name :
deep dream
Model Number :
UCF205
Place of Origin :
Shaanxi, China
MOQ :
1 PCS
Payment Terms :
Western Union, T/T
Supply Ability :
200000 pcs per day
Packaging Details :
1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag
Product name :
Flange Units
Type name :
UCF205
Service :
OEM Customized Services
Application :
Agricultural,transportation,construction
Material :
Chrome Steel
Feature :
Long Life High Speed
Bearing Inner Diameter Metric/Inch :
25mm/1 in
Description

High Quality Square Flange Units Bearing F205 Pedestal Bearing UCF205-16

Description: of Flange Units

The flange bearing UCF208 is suitable for very high radial loads and for installation in various applications. It is particularly
robust with its gray cast iron housing.

* Resist high levels of contamination
* Designed for high temperatures and speeds
* Accommodate relatively heavy loads
* Cost-effective

Specifications: of Flange Units

Product Name
High quality Flange Units
Brand
Deep dream&OEM
Bearing Inner Diameter Metric/Inch 25mm/1 in
Model No
 UCF205
Material
Chrome Steel, Bearing steel; GCr15; carbon steel, brass
Precision
P0
Clearance
C0, C2, C3, C4
Usage
Used for Mining, metallurgy, agriculture, chemical industry, textile, printing and dyeing, conveying machinery.

Unit No. Dimensions(mm) Bolt Size Bearing No. Housing No
d a e i g l s z t B n
UCF201 12 86 64 15 12 26 12 33 37.5 31 12.7 M10 UC201 F204
UCF202 15 86 64 15 12 26 12 33 37.5 31 12.7 M10 UC202 F204
UCF203 17 86 64 15 12 26 12 33 37.5 31 12.7 M10 UC203 F204
UCF204 20 86 64 15 12 26 12 33 37.5 34 14.3 M10 UC204 F204
UCF205 25 95 70 16 14 27 12 36 40 34 14.3 M10 UC205 F205
UCF206 30 108 83 18 14 31 12 40 44.5 38 15.9 M10 UC206 F206
UCF207 35 117 92 19 16 34 14 44 48.5 43 17.5 M12 UC207 F207
UCF208 40 130 102 21 16 36 16 51 55.5 49 19 M14 UC208 F208
UCF209 45 137 105 22 18 38 16 52 56.5 49 19 M14 UC209 F209
UCF210 50 143 111 22 18 40 16 55 59.5 52 19 M16 UC210 F210
UCF211 55 162 130 25 20 43 19 58 63 56 22.2 M16 UC211 F211
UCF212 60 175 143 29 20 48 19 69 73.5 65 25.4 M16 UC212 F212
UCF213 65 187 149 30 22 50 19 70 74.5 65 25.4 M16 UC213 F213
UCF214 70 193 152 31 22 54 19 75 81.5 75 30.2 M16 UC214 F214
UCF215 75 200 159 34 22 56 19 79 83.5 78 33.3 M16 UC215 F215
UCF216 80 208 165 34 22 58 23 83 88.5 83 33.3 M20 UC216 F216
UCF217 85 220 175 36 24 63 23 88 92.6 86 34.1 M20 UC217 F217
UCF218 90 235 187 40 24 68 23 96 102 96 39.7 M20 UC218 F218

Why Choose Us:

1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported

Applications:

Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry.

High Quality F205 Flange Units Square Chrome Pedestal Block Bearing UCF205-16

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing

4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
