30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality
30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality
30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality
30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality
30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality
30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality
Specifications
Brand Name :
deep dream
Model Number :
1206
Place of Origin :
Shaanxi, China
MOQ :
1 PCS
Payment Terms :
Western Union, T/T
Supply Ability :
200000 pcs per day
Packaging Details :
1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag
Product name :
Self-Aligning Ball Bearing
Type name :
1206
Service :
OEM Customized Services
Size :
30*62*16mm
Package :
Original Package
Material :
Chrome Steel, Stainless Steel
Cage :
nylon, steel
Description

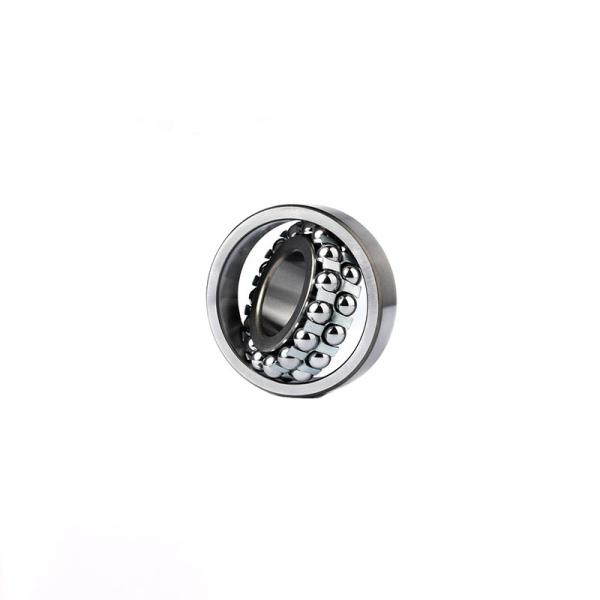

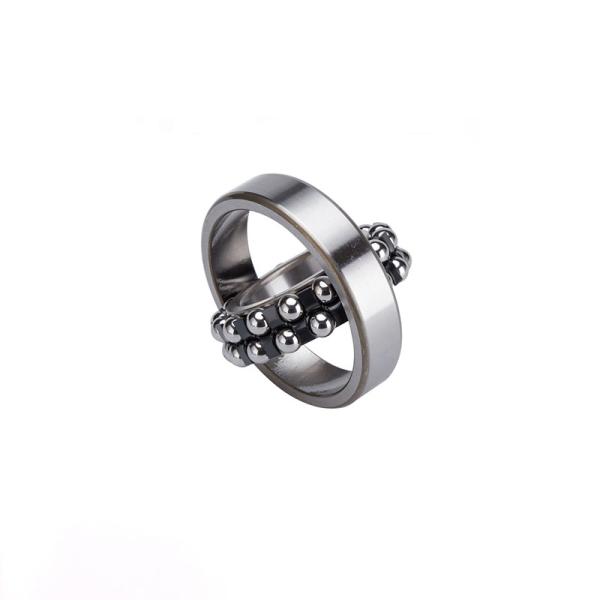

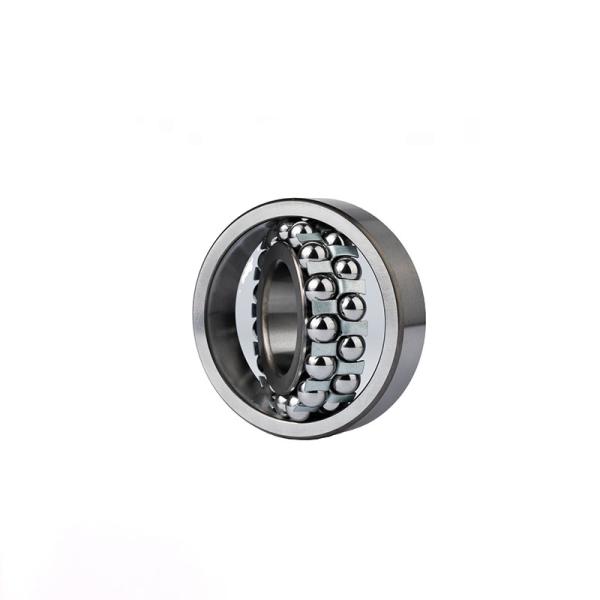

High Precision Double Column High Quality Self Aligning Ball Bearings 1206 Size 30*62*16mm

Description: of Self-Aligning Ball Bearing 1206

The structure of the self-aligning ball bearing is that the inner ring and the ball assembly are contained in the outer ring with a spherical shape. The self-aligning ball bearing has two rows of balls. There is a common spherical raceway whose center of curvature coincides with the center of the bearing. The bearing can rotate even if the inner ring, balls and cage are tilted relative to the outer ring. Self-aligning double row ball bearings are designed for applications where severe misalignment exists, either in mounting or shaft deflection. The concave raceway of the outer ring combined with the two rows of balls can operate in a wide range of contact angles.

Specifications: of Self-Aligning Ball Bearing 1206

Product Name
High quality and high precision double row self-aligning ball bearing 1206
Brand
Deep dream&OEM
Model No
1206
Sizes(mm)
30*62*16mm
Material
Chrome Steel (Gcr 15)
Sealed Type
2RS rubber seals/ ZZ metal shields/Open
Precision
P0 P6 P5 P4 P2
Clearance
C0, C2, C3, C4
Characteristic
Easy to replace and install, well sealed, suitable for high dust environment, multiple fixing methods are optional, and multiple
designs are used.

30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality

Bearing No.
Dimensions (mm)
Weight (kg)
d
D
B
1200
10
30
9
0.034
1201
12
32
10
0.04
1202
15
35
11
0.049
1203
17
40
12
0.073
1204
20
47
14
0.116
1204K
20
47
14
0.116
1205
25
52
15
0.14
1205K
25
52
15
0.14
1206
30
62
16
0.22
1206K
30
62
16
0.22
1207
35
72
17
0.32
1207K
35
72
17
0.32
1208
40
80
18
0.415
1208K
40
80
18
0.415
1209
45
85
19
0.465
1209K
45
85
19
0.465
1210
50
90
20
0.531
1210K
50
90
20
0.531

Advantage

1. Able to Carry High Loads

2. With a High Load-Bearing Capacity

3. Low Noise and More Quiet

4. Long Life,Stable Performance and Durable

5. Have Low Rolling Resistance and Work in Sub-Zero Temperatures

Why Choose Us:

1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported

Applications:

Self-aligning ball bearings are suitable for bearing heavy load and impact load, precision instrument, low noise motor,
automobile, motorcycle, metallurgy, rolling mill, mine, petroleum, paper making, cement, sugar pressing and other industries and general machinery.

30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality

30x62x16mm Double Row Self Aligning Bearing High Precision 1206 High Quality

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing

4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
