Description: of Needle Roller Bearing
Needle Roller Bearings (needle bearing) is a cylindrical roller with roller bearings, relative to its diameter, roller both thin and long. This is called needle roller. Despite having a smaller cross-section,has a higher load bearing capacity, equipped with a thin and long needle bearing roller (roller diameter D≤5mm,L / D≥2.5, L is the length of the roller), so radial structure is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial dimensions limited support structure.

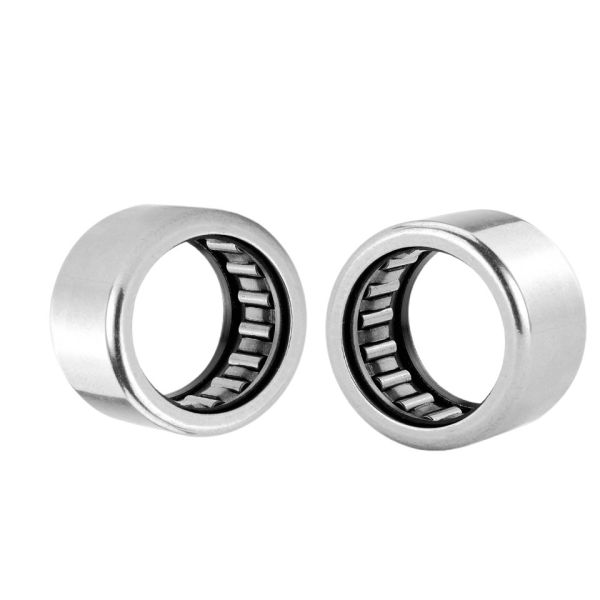

deep dream drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.
Specifications: of Needle Roller Bearing
Product Name | Needle Roller Bearing |
Brand | Deep dream&OEM |
Model No | HK1622 |
Sizes(mm) | 16x22x22mm |
Material | Chrome Steel, Bearing steel; GCr15; carbon steel, brass |
Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
Precision | P0, P5, P6 |
Clearance | C0, C2, C3, C4 |
Packing | Original Package |
designation | Fw | D | C | Weight |
BK 1414 RS | 14 | 20 | 14 | 0,013 |
HK 1414 RS | 14 | 20 | 14 | 0,012 |
HK 1416.2RS | 14 | 20 | 16 | 0,013 |
BK 1512 | 15 | 21 | 12 | 0,013 |
HK 1512 | 15 | 21 | 12 | 0,011 |
HK 1514 RS | 15 | 21 | 14 | 0,012 |
BK 1516 | 15 | 21 | 16 | 0,017 |
HK 1516 | 15 | 21 | 16 | 0,015 |
HK 1516.2RS | 15 | 21 | 16 | 0,015 |
HN 1516 | 15 | 21 | 16 | 0,014 |
HK 1518 RS | 15 | 21 | 18 | 0,016 |
HK 1520.2RS | 15 | 21 | 20 | 0,018 |
HK 1522 | 15 | 21 | 22 | 0,020 |
BK 1612 | 16 | 22 | 12 | 0,014 |
HK 1612 | 16 | 22 | 12 | 0,012 |
HN 1612 | 16 | 22 | 12 | 0,013 |
BK 1614 RS | 16 | 22 | 14 | 0,015 |
HK 1614 RS | 16 | 22 | 14 | 0,013 |
BK 1616 | 16 | 22 | 16 | 0,018 |
HK 1616 | 16 | 22 | 16 | 0,016 |
HK 1616.2RS | 16 | 22 | 16 | 0,014 |
HK 1620.2RS | 16 | 22 | 20 | 0,018 |
BK 1622 | 16 | 22 | 22 | 0,024 |
HK 1622 | 16 | 22 | 22 | 0,022 |
HK 1712 | 17 | 23 | 12 | 0,012 |
Advantage:
1. High speed, high precision
2. Long service life
3. Low noise and good performance
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Wear resistant,Low friction,Minimum lubrication,Easy replacement,Suitable for Motor, conveyor, forklift, mining machinery, rolling mill, auto spare parts
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
Part drawn cup Needle roller bearings catalogue
