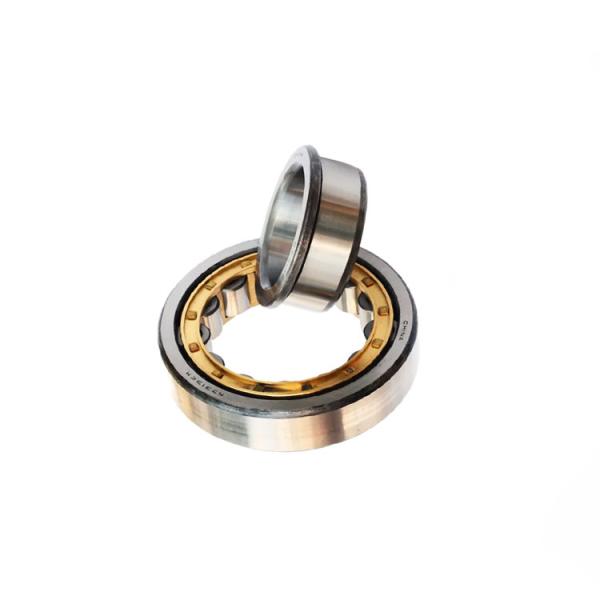

NU203 ECP Cylindrical Bearing Rollers Premium Quality 17x40x12mm Nj 203 Bearing
NU203 ECP Cylindrical Bearing Rollers Premium Quality 17x40x12mm Nj 203 Bearing
NU203 ECP Cylindrical Bearing Rollers Premium Quality 17x40x12mm Nj 203 Bearing
NU203 ECP Cylindrical Bearing Rollers Premium Quality 17x40x12mm Nj 203 Bearing
Specifications
Brand Name :
deep dream
Model Number :
NJ203
Place of Origin :
China Shaanxi
MOQ :
1 Pcs
Payment Terms :
Western Union, T/T
Supply Ability :
200000 pcs per day
Packaging Details :
1.Single box: plastic bag+single box, OEM supply 2.Single wooden box: plastic bag+single wooden box 3.Carton: Standard export carton(30*108*38.1MM) or as your need. 4.Pallet: Wooden pallet with plastic film against moisture. 5.Pallet size: 1.2m*1m 6.Packag
Product name :
Cylindrical Roller Bearing
Service :
OEM Customized Services
Feature :
Long Life High Speed
type :
NJ203
Type :
cylindrical roller
Number of row :
Single Row
Package :
industrial packing
Bore size :
17 mm
Certificate :
ISO9001
Precision Rating :
p0 p6 p5 p4 p2
Description

Premium Quality Bearings NU203 ECP Cylindrical Roller Bearing NJ203 17*40*12mm

Description: of Cylindrical Roller Bearing NJ203

Cylindrical Roller Bearing Cylindrical roller bearings are available in a wide range of designs, series, variants and sizes. The main design differences are the number of roller rows and the inner/outer ring flanges as well as cage designs and materials.They are designed in single row, double row and multi-row types, of which single row cylindrical roller bearings are the most suitable.

NJ210 cylindrical roller bearing with raceway, so the bearing can bear heavy radial load.These bearings are separable shaped bearings for easy installation and removal. Usually these bearings can only bear radial loads, and only single row bearings with ribbed inner and outer rings can bear lighter axial loads.

Specifications: of Cylindrical Roller Bearing NJ203

Type
NJ203
Structure
Cylindrical Roller Bearing
Applicable Industries
machinery repair shop, manufacturing plant, automobile manufacturing, agricultural machinery
Brand Name
deep dream/OEM
Size
17*40*12mm
Accuracy Grade
P0 P6 P5 P4
Seal Type
open
Retainer Type
Copper / Nylon / Steel
Origin
Shaanxi, China
Service
OEM / ODM or customer logo is acceptable

NU203 ECP Cylindrical Bearing Rollers Premium Quality 17x40x12mm Nj 203 Bearing

Bearing Type
Inside Diameter(mm)
Outer Diameter(mm)
Width(mm)
Net Weight(kg)
NJ202
15
35
11
0.06
NJ203
17
40
12
0.07
NJ204
20
47
14
0.14
NJ205
25
52
15
0.16
NJ206
30
62
16
0.24
NJ207
35
72
17
0.3
NJ208
40
80
18
0.35
NJ209
45
85
19
0.52
NJ210
50
90
20
0.587
NJ211
55
100
21
0.69
NJ212
60
110
22
0.9
NJ214
70
125
24
1.36
NJ215
75
130
25
1.4
NJ216
80
140
26
1.53
NJ217
85
150
28
2.17
NJ218
90
160
30
2.72
NJ219
95
170
32
2.9
NJ220
100
180
34
3.5

Cylindrical Roller Bearings :

N Structure:The outer ring of the N type bearing has no flanges, and the two sides of the inner ring have flanges.The displacement of the shaft relative to the bearing pedestal in both axial directions can be allowed. ;
NJ Structure:The outer ring of NJ bearing is provided with flaps on both sides, and the inner ring is provided with flaps on one side.Canwithstand a certain amount of unidirectional axial load.
NU Structure:The NU type bearing has flaps on both sides of the outer ring and no flaps on the inner ring.Displacements in both axial directions between the shafts relative to the bearing pedestals may also be allowed.
NN Structure:The outer ring of NN type bearing has no baffle, and the inner ring has baffle on both sides and a middle baffle on the middle.The axial displacement of the shaft relative to the bearing seat can be allowed in two directions.
NUP Structure:NUP type bearings have flaps on both sides of the outer ring, one side of the inner ring has a (fixed) single flaps, and the other side is a detachable flat flaps.Can withstand a certain amount of bidirectional axial load.
NF Structure:The outer ring of the NF type has a baffle on one side and the inner ring has a baffle on both sides.It can also bear a certain amount of unidirectional axial load.

Why Choose Us: of Cylindrical Roller Bearing NJ203

1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported

NU203 ECP Cylindrical Bearing Rollers Premium Quality 17x40x12mm Nj 203 Bearing
FAQ

1. who are we?

We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,tapered roller bearing,bearings,pillow block bearing

4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
