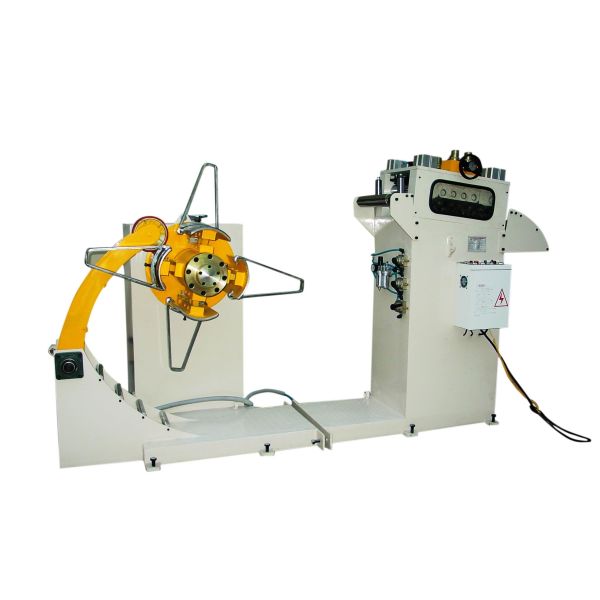

Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Specifications
Brand Name :
RILANT
Model Number :
SZWG-1000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
15 work days
Packaging Details :
Standard export package
Voltage :
380V 50Hz 3phases
Condition :
New
Weight :
2.5T
Tile type :
Steel
Dimension(l*w*h) :
about3000*500*500
Use :
decoiler,uncoil
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Color :
Client's Request
Name :
decoiler for steel sheet
Power(w) :
5.5kw
Product name :
Automatic 3 tons hydraulic sheet decoiler and uncoiler machine
Raw material :
PPGI PPGL GI GL
Control system :
PLC computer control
Plc :
DELTA(TAIWAN)
Usage :
decoiler
Roller material :
45#steel Chrome Plated
Frame :
H beam
Description

Hydraulic Heavy Uncoiling Machine Coil Straightening Machine NC Feeder

Description

A) main frame: after the welding of steel, A3 steel plate and #45 steel forging, it is not deformed by the qualitative treatment of annealing;

The two bearing seats are bored into a single hole to ensure the concentricity of the spindle installation, and no radial pulsation is produced.

B) main shaft: 40Gr round steel drill diameter 85mm through-hole, adjusted and refined, the working face diameter of 190mm, bearing 15 tons.

C) collapsible drum: using the sliding block type of expansion drum;

Four pieces of curved plates, wire cut slide, 460 ~ 520 increases and the diameter ;

The effective working length is 1300mm, and the overall core shaft ensures that the winding drum increases and reduces the concentricity, and the surface of the drum is electroplated hard chromium.

D) brakes: adopt pneumatic disc type brake components, braking power can be adjusted, when the parking brake tight, drag brake operation while driving, ensure the standby and can't loose volume on, in order to avoid loose volume scrape board face.

E) hydraulic power: push and pull up shrinking core axis: hydraulic cylinder model specification: FA - 125 x 130 mm, the rotary joint drainage way;

Pressure is expected to lift hydraulic cylinder FA - 63 x 600 mm.

MODEL MT-200 MT-300 MT-400 MT-500
Material width 200 300 400 500
Loading weight 800 800 1200 1200
Coil inner diameter 450~530mm 450~530mm 450~530mm 450~530mm
Coil outer diameter 1200mm 1200mm 1200mm 1200mm

Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine

Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
Uncoiling Punch Press Servo Feeder 2.5T Servo Feeder Machine
