Specifications
Brand Name :
RILANT
Model Number :
SZR-650
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
45 working days
Packaging Details :
Standard export package
Use :
Roof,furring channel roll foming machine,door frame,cable tray machine,Vineyard Grape Stake
Voltage :
380V 50Hz 3phases
Condition :
New
Dimension(l*w*h) :
6500*1300*1100
After-sales service provided :
Engineers available to service machinery overseas
Weight :
2T
Power(w) :
5.5 KW
Control system :
PLC
Roller material :
coated with chrome,45# steel,45#steel,Cr12,High grade #45 steel with hard chromed
Warranty :
1 Year
Product name :
Roll forming machine prices
Color :
Client's Request
Shaft material :
high grade 45# steel
Usage :
Roof Profile,Construction,roof tile panel
Raw material :
PPGI,PPGI/Galvanized sheet
Cutting blade material :
Cr 12,Cr12Mov with quench HRC58-62°
Thickness :
1.2-2mm
Life time :
10 YEARS
Description

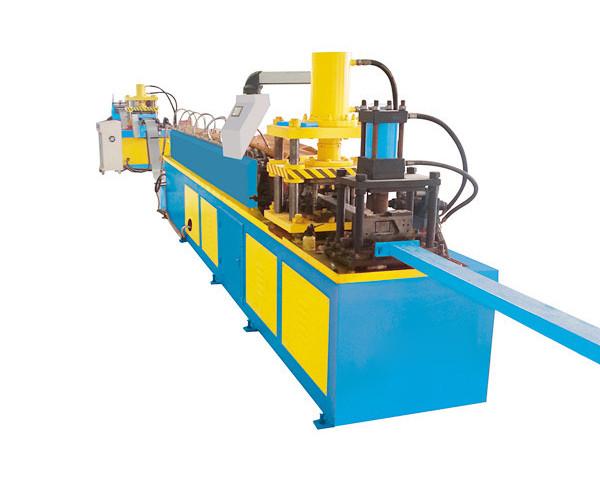

C Profile Track Light Keel Forming Machine Aluminium Ceiling Tile Machine C Channel Roll Forming Machine

(1). Brief Introduction

The High precision light steel stud profiles metal frame roll forming machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.

Suitable material PPGI/Aluminium sheet/galvanized sheet/various sheet plates
Thickness of coil sheet 0.2-0.6mm
Usage Light steel keel
Effective width 75mm
Material of main frame 600H steel
Diameter of Soild shaft 70mm, high grade 45# steel
Roller

High grade 45# steel, quenched and tempered treatment,

hard chrome plated 0.05-0.07mm
Thickness of middle plate 16mm, 45# steel plate
Forming station 14rows
Drive type By chain(1.0 inch), link bearing model 6210
Power of main motor 5.5 kw, Lichao, Shanghai, with reducer
Sidewall connection bar 25mm, zinc plated
Forming speed About 12-18m/min
Hydraulic pump station 4.0 kw, 40# hydraulic oil
PLC DELTA(TAIWAN)/Mitsubishi
Material of razor blades Cr 12, quenching 58-62℃
Switch CHNT
Frequency changer

SAJ
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving(2)

(3).Technical Detail

A Sheet Specifications

1 Coil Type PPGI GI
2 Width 500mm
3 Thickness 0.3-0.8mm
4 Yield stress Q235
5 Effective 235mm

B Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 15, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES

well-adapted to various conditions, such as moisture,

electromagnetic disturbance.
Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

 Omron, made in Japan.
It features with high accuracy and stability.
