1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
1350mm Steel Coil Cut To Length Line 35t Stainless Steel Slitting Machine
Specifications
Brand Name :
RILANT
Model Number :
SZWG-2500N
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2 sets per month
Delivery Time :
45 working days
Packaging Details :
Standard export package
Product Name :
Cold Rolled Steel Coil Slitting Machines Stainless Steel Slitting Line Cut To Length Line
Material :
Carbon Steel,Stainless Steel, cold rolled steel
Keyword :
Steel strip cutting machine,cut to length line
Max. Coil Width :
800-2000 mm
Voltage :
380V,50Hz,3 Phase
Rated Power :
120 KW
Dimension(L*W*H) :
1650*850*1350 mm
Applicable Industry :
Machinery,energy etc
Weight :
20 ton
Description

Cold Rolled Steel Coil Slitting Machines Stainless Steel Slitting Line Cut To Length Line

Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages:Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.

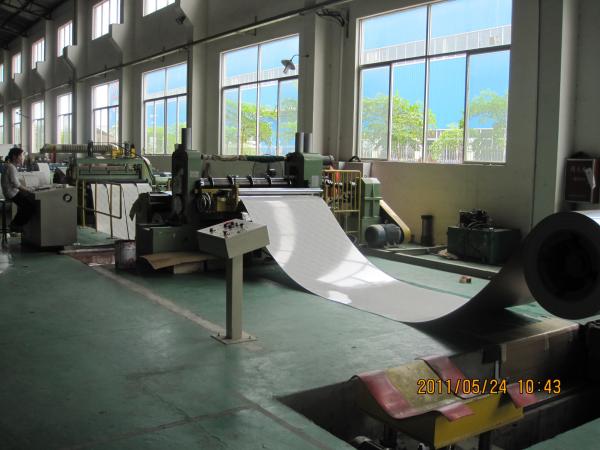

Structure:It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.

Composition: it is composed of feeding car, uncoiler, demolition of the entrainment feeding machine, leveling machine, looper, sizing device, shearing machine, conveyor, chopping board system;
High performance PLC programmable control system control;
Structural design of reliable hydraulic pneumatic system, high strength and high rigidity

No. Com
modity		 Raw
mate
rial		 THK
(mm)		 Width
(mm)		 ID
(mm)		 OD
(mm)		 weight
(T)		 Length
arrarge
(mm)		 Slits
(mm)		 Slit
tole
rance
(mm)		 Smoo
thness
(mm
/m2)		 Speed
(m/
min)		 Capa
city
(KW)		 Flood space
(m)
1 6.0*1600 stain
less
steel
,Cold-Rollrd
,Galv
nized
coil
Q235, Q345,
B510		 1.0-6.0 600- 1600 Φ508/Φ610 ≤Φ2000 ≤35 1000-12000 ≤±0.5 ≤±1.5 ≤1.5 ≤30 ~155 35*8
2 8.0*1600 2.0-8.0 600- 1600 Φ508/Φ610 ≤Φ2000 ≤35 1000-12000 ≤±0.5 ≤±1.5 ≤1.5 ≤30 ~180 35*8
3 9.0*1600 2.0-9.0 600- 1600 Φ508/Φ610 ≤Φ2000 ≤35 1000-12000 ≤±0.5 ≤±1.5 ≤2.0 ≤20 ~195 35*8.5
4 10*1600 2.0-10 800-1600 Φ508-Φ760 ≤Φ2000 ≤35 1000-12000 ≤±0.5 ≤±1.5 ≤2.0 ≤20 ~240 42*8
5 12*2000 3.0-12 1000-2000 Φ508-Φ760 ≤Φ2000 ≤35 1000-12000 ≤±0.5 ≤±1.5 ≤2.0 ≤16 ~255 50*10
6 12*1800 3.0-12 800-1800 Φ508-Φ760 ≤Φ2200 ≤35 1000-12000 ≤±0.5 ≤±1.5 ≤2.0 ≤16 ~255 50*10
7 16*2000 4.0-16 1000-2000 Φ508-Φ760 ≤Φ2200 ≤35 1000-12000 ≤±2.0 ≤±3.0 ≤2.0 ≤12 ~275 50*10.5
8 20*2200 5.0-20 900-2000 Φ508-Φ760 ≤Φ2200 ≤35 1000-12000 ≤±2.0 ≤±3.0 ≤3.0 10-16 ~220 29*9.6
9 22*2200 5.0-20 900-2000 Φ508-Φ760 ≤Φ2200 ≤35 1000-12000 ≤±2.0 ≤±3.0 ≤3.0 10-16 ~220 29*9.6
10 25*2200 5.0-25 900-2000 Φ508-Φ760 ≤Φ2200 ≤35 1000-12000 ≤±2.0 ≤±3.0 ≤3.0 10-16 ~220 3
