Specifications
Brand Name :
RILANT
Model Number :
WL-2000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
45 working days
Packaging Details :
Standard export package
Product name :
Rockwool Production Line Manufacture Electrical Roofing Rockwool Pu Sandwich Panel Machine
Application :
Manufacturing Plant
key words :
sandwich panel, rockwool board, glass wool
Thinckness :
0.4-5 mm
Width(mm) :
600-2000mm
Warranty :
5 years
After sales service :
engineer available for overseas service
Length :
2000-16000mm
Description

Rockwool Production Line Manufacture Electrical Roofing Rockwool Pu Sandwich Panel Machine

Rock wool production lines: machinery for insulation

A complete rock wool production line consists of several machines that process the material, from melting to packaging.

The “hot” part is located at the beginning of the line where the machines melt the raw material and transform it into fiber, followed by the polymerization and processing of the fiber, when the product acquires the final shape (rigid boards, stitched mattresses or felts). The packaging system is located at the end of the line and consists of machines that package the product and prepare it for warehousing or shipment.

Indicative production capacity: 200 Kg/hr to 8 t/h (finished product)

Type of melting furnace: Cupola furnace (for all capacities) or Horizontal Furnace and electric oven (for small and medium lines).

Nominal line width: from 1,200 to 2,400 mm

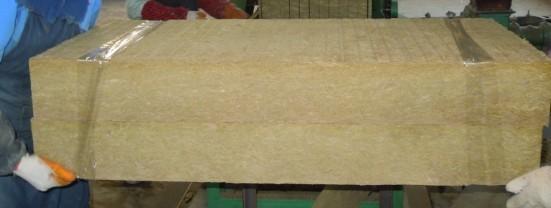

Type of finished product:

• Felts

• Boards

• Stitched mattresses

Product features:

• Density 30 – 200 kg / m3

• Thickness 30 – 200 mm

• Width 400 – 2400 mm

All rock wool products can be coupled with different types of materials (depending on their use) such as paper, aluminum, glass veil.

Sandwich panel standards
Length
Min cut length: 3 m
Max stacker length: 15 m
raw material standards
Coil thickness
0.4~0.6mm (the coil surface should be flat,
no arch and the others surface trouble.)
Material coil yield strength
235MPa
Material coil max width
see detailed profile drawings.
Material coil max weight
5 T
Material coil inner diameter
Φ508,Φ610 mm
EPS core material
density
≥18Kg/m3
straight rate
≤1mm/m
arch degree
≤3mm/m
panel surface
shoule be flat
no flat degree is ≤1.5mm/m,
sandwich panel length
longer than 5 meters
wool material
fiber length
≥100mm
cubage density
≥100Kg/m3
sandwich panel length
≥3 meters

Pu Rockwool Production Line 2000mm Sandwich Panel Making Machine

Pu Rockwool Production Line 2000mm Sandwich Panel Making Machine

Pu Rockwool Production Line 2000mm Sandwich Panel Making Machine

Pu Rockwool Production Line 2000mm Sandwich Panel Making Machine

Pu Rockwool Production Line 2000mm Sandwich Panel Making Machine
