Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Basalt Rockwool Production Line 20000 TPA Rockwool Sandwich Panel Machine
Specifications
Brand Name :
RILANT
Model Number :
WL-2000
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
45 working days
Packaging Details :
Standard export package
Product name :
Rockwool Production Line Manufacture Electrical Roofing Rockwool Pu Sandwich Panel Machine
Application :
Manufacturing Plant
key words :
sandwich panel, rockwool board, glass wool
Thinckness :
0.4-5 mm
Width(mm) :
600-2000mm
Warranty :
5 years
After sales service :
engineer available for overseas service
Length :
2000-16000mm
Description

Rockwool Production Line Manufacture Electrical Roofing Rockwool Pu Sandwich Panel Machine

Rock wool production lines: machinery for insulation

A complete rock wool production line consists of several machines that process the material, from melting to packaging.

The “hot” part is located at the beginning of the line where the machines melt the raw material and transform it into fiber, followed by the polymerization and processing of the fiber, when the product acquires the final shape (rigid boards, stitched mattresses or felts). The packaging system is located at the end of the line and consists of machines that package the product and prepare it for warehousing or shipment.

Indicative production capacity: 200 Kg/hr to 8 t/h (finished product)

Type of melting furnace: Cupola furnace (for all capacities) or Horizontal Furnace and electric oven (for small and medium lines).

Nominal line width: from 1,200 to 2,400 mm

Type of finished product:

• Felts

• Boards

• Stitched mattresses

Product features:

• Density 30 – 200 kg / m3

• Thickness 30 – 200 mm

• Width 400 – 2400 mm

All rock wool products can be coupled with different types of materials (depending on their use) such as paper, aluminum, glass veil.

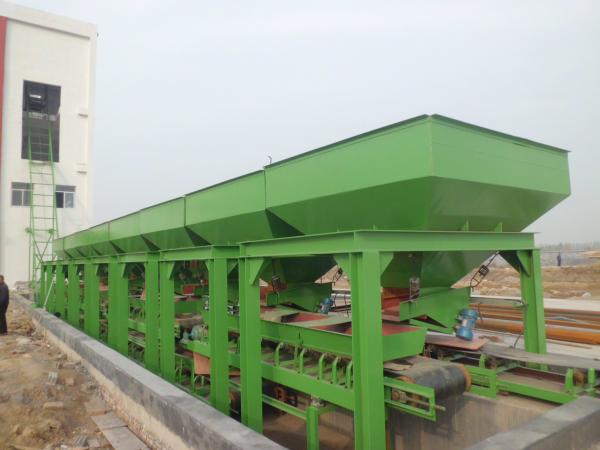

1 Raw material system 1)Feeding system
2) Automatic proportioning machine
3)Control cabinet (PLC is adopted)
4)Feeding machine
2 Melting system 1) Furnace platform
2)Cupola furnace
3) Material level control system
4)Dust catcher
5)Waste gas burning furnace
6)Waste gas intake pipe
7)Waste gas intake fan
8)Heat ex-changer
9)Control cabinet
10) Melting furnace cooling system
11)Wind supply fan for the melting furnace
12)Wind supply pipeline for melting furnace
3 Fiber-forming system 1) High speed centrifuge
2)Fan
3)Fiber blowing bellows
4)Lubricating system of centrifuge
5)Water pump and water cooling system
6)Electrical control cabinet(PLC)
7) Residue-remover
4 Wool collecting and allocation system &
Board making system		 1)Wool collector and Pendulum wool allocation machine
2) Control cabinet
3) Air-intake fan for wool collecting
4)Dust filtering system of wool collecting part
5) Wool allocation conveyor
6)Compressing pleating machine

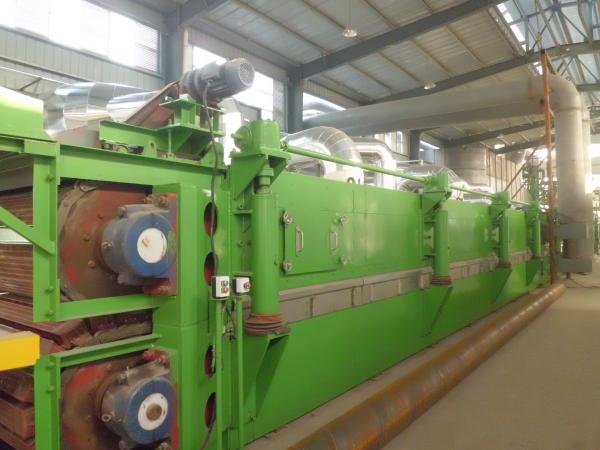

7) Curing oven
8)Main power assembly
9) Control cabinet
5 Curing oven explosion-proof system 1) Natural gas inspect system
2)Explosion-proof fan
3)Explosion-proof pipes
4)Control cabinet

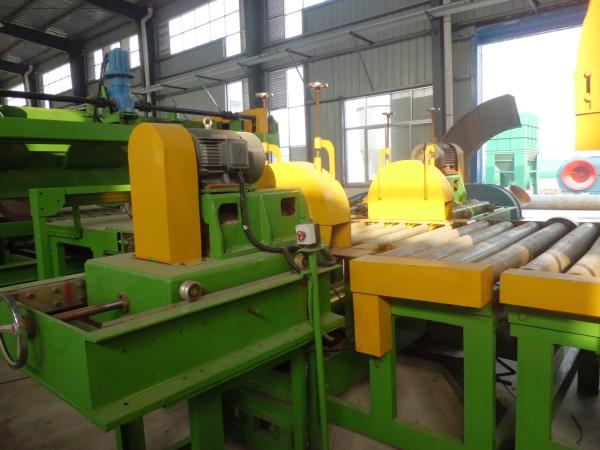

6 Cutting system 1)Cooling conveyor2) Cooling fan
3) Thickness saw
4)Cooling cutter
5)Metering device of cutting
6)Control cabinet
7)Cutting machine driving system
7 Dust-removing system of cutting part 1)Bag-type dust filter
2)Dust-removing pipes
3)Dust-removing fan
8 Scrap recycling machine 1)Crusher
2)Scrap-recycling fan
3) Scrap-recycling pipeline
