Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Galvanized Sheet 800mm Steel Coil Slitting Machine 15T Ss Coil Slitting Machine
Specifications
Brand Name :
RILANT
Model Number :
SZWG-2000N
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2 sets per month
Delivery Time :
45 working days
Packaging Details :
Standard export package
Product Name :
High Precision Coil Steel Strip Cutting and Slitting Machine
Material :
Carbon Steel,Stainless Steel
Keyword :
Steel strip cutting machine
Max. Coil Width :
800-2000 mm
Voltage :
380V,50Hz,3 Phase
Rated Power :
120 KW
Dimension(L*W*H) :
1650*850*1350 mm
Applicable Industry :
Machinery,energy etc
Weight :
20 ton
Description

High Speed Galvanized Sheet Steel Coil Slitting Machines

Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages:Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.

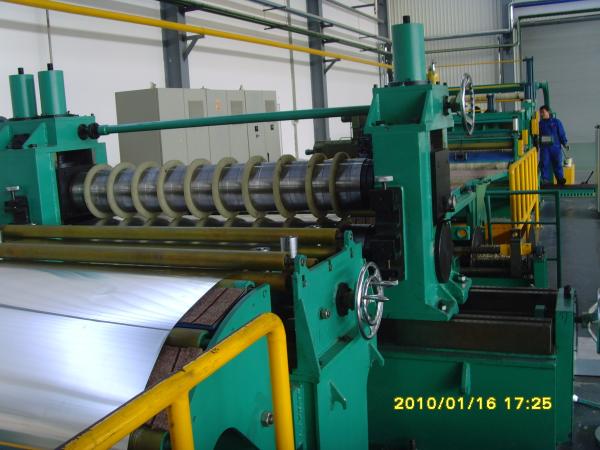

Structure:It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized

steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

Steel coil parameters Material HR,CRS and GI
Tensile strength δb≤450Mpa,δS≤260Mpa
Steel thickness 0.3-3mm
Steel width 500-1600
Steel coil I.D φ480-520 mm
Steel coil O.D φ1600mm(Max)
Steel coil weight 15T

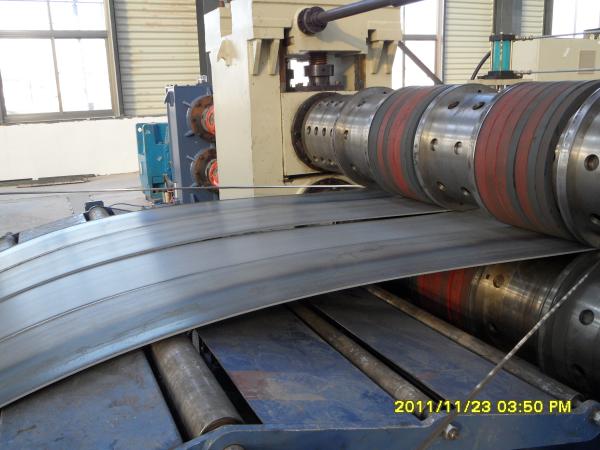

Slitter parameters knife pivot diameter Ф200 mm
Knife pivot material 40Cr
Blades specification Φ200mmXφ340mmX15mm
Blade material 6CrW2Si
Slit parameter Max slit quantity 5 pcs (3mm) 25 pcs(0.3mm)
Width precision ≤±0.05mm/2M
Mini slit strips width 20mm
Other parameters Power 380V/50Hz/3Ph
Line speed 0-100m/min
Capacity 210 Kw
Whole line Dimension 25m(L)X8m(W)
Operator needed 1 mechanical engineer ,2 common workers
Line direction From right to left(Face to machine)
Machine color White grey
