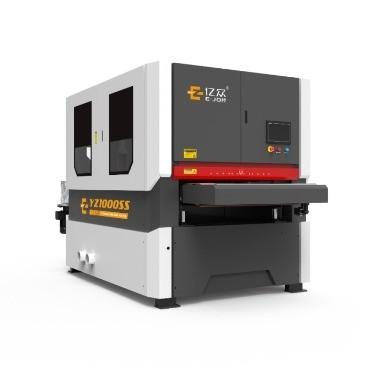

YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
Specifications
Place of Origin :
Tianjin, China
Brand Name :
EJON
Price :
$24,500.00/sets 1-2 sets
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
MULTI-FUNCTIONAL
Warranty of core components :
1 Year
Core Components :
PLC, Motor, Roller brushes, sanding belt
Power (kW) :
5
Weight (KG) :
3200
Key Selling Points :
Multifunctional
Warranty :
1 Year
Applicable Industries :
Manufacturing Plant, Laser cutting parts, Flame cutting parts, Precision sheet parts, metal sheet parts, stamping parts, automatic steel plate
Showroom Location :
Brazil, Japan, Singapore
Product name :
Automatic Metal Sanding Deburring Machine
Usage :
Metal Plates Deburring Polishing Sanding Chamfering
After-sales Service Provided :
1 Year
Max. processing range :
W:1000 mm; H: 80 mm
Sanding belt width :
1020 mm
Fixed form :
Roller press+magnetic adsorption+Negative pressure adsorption
transport speed :
0.5~1.0 m/min
Compressed air pressure :
0.6 MPa
Rated voltage :
AC 380V/50Hz
The weight :
3000 kg
Description
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
CLICK HERE TO ASK MORE
FEATURES AT A GLANCE
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
1. Full automatic operation
2. PLC program controlled
3. Simple touch-screen operation
4. Best quality, best service
5. Save labor, improve efficiency
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
Interface operation
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine

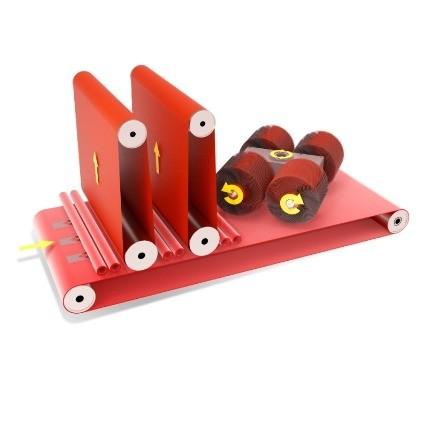

Grinding unit
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
Dust control interface
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
PRODUCT SPECIFICATIONS
No
Item
Data
1
Dimensions
3300(L)*1650(W)*2060(H)mm
2
Width of sanding belt
1020mm
3
Conveyor speed
0.5-25m/min
4
Brush roller number
4
5
Main power
34.5kW
6
Fix form
roller press + magnetic adsorption + negative pressure adsorption
7
Rated voltage
AC 380V/50Hz
8
The weight
3000kg
Application
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
Equipment Application
Supporting laser cutting machine, CNC stamping, various CNC processing or other machining deburring production line.
Through straight line processing and the alternate rotation and auto-rotation of multiple groups of roller brushes, the equipment can uniformly remove burrs, slag, oxide skin, film coating of sheet metal parts, as well as achieve even chamfers on the contour edge and hole edge of parts.

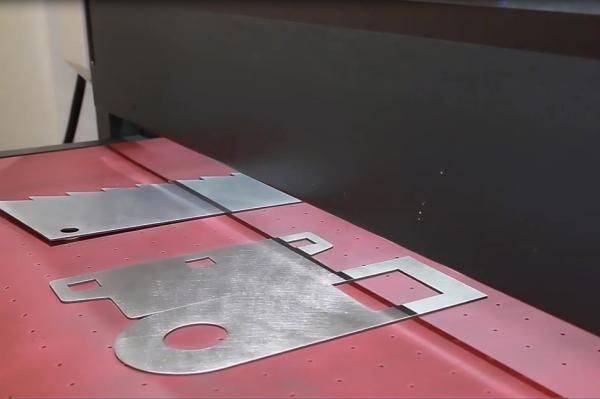

Polishing Effect
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
BEFORE
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
AFTER
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
BEFORE
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine
AFTER
Our Advantages
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine

TRADITIONAL METHOD

Manually apply angle grinder and chamfering machine, the process quality is unstable, the chamfer is inconsistent, the edge is uneven, and it is easy to cause damage to the workpiece; The inner hole edge is not polished properly, resulting in machining dead corners.
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine

DEBURRING MACHINE SOLUTION

The deburring machine does 360-degree omni-directional machining without dead corner, and the inner and outer edges are fully covered; can achieve uniform chamfering, consistent angles, smooth edges and no harm to the workpiece.
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine

TRADITIONAL METHOD

Manual operation can only process one workpiece each time. When chamfering machine is used for larger workpieces, the operation is slow, and for oversized/ overlong workpieces need two people to work together, which has low efficiency and high labor cost.
YZ1000SS All IN ONE Belt Brush Grinding Deburring Finishing Machine

DEBURRING MACHINE SOLUTION

The maximum transmission width of the deburring machine is 1020 mm, and multiple workpieces can be placed at the same time for batch uninterrupted processing, and the transmission speed (0.5~25 m/min) can be set according to the demand to achieve efficient production.

MAIN CHARACTERISTICS OF EJON YZ916

1. More convenient setting. Integrated function setting+LED touch screen.
2. Lower material cost. Universal sand belt wheel can last 2~3 months; multiple sand belt wheels (80~120 molybdenum) are available.
3. Safe. No need to contact with materials during operation, metal debris is blocked in the cabinet and will not splash freely.
4. Clean. Dust and debris can be connected to the dust removal system.
5. Multiple choices. For magnetic-capable material processing, magnetic adsorption function is standard configuration, greatly reduce device power consumption; For materials that cannot be magnetically attracted, vacuum negative pressure workstation can be selected for adsorption processing.
6. Parameters visual adjustment. The grinding and stroke parameters can be freely adjusted visually, can only grind the contour and sharp edge of the workpiece without damaging the surface.
