EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
Specifications
Place of Origin :
Tianjin, China
Brand Name :
EJON
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
High end machine
Warranty of core components :
1 Year
Core Components :
Motor
Material / Metal Processed :
Plastic, PVC, Aluminum, Stainless steel, aluminum profile
Automation :
Automatic
Warranty :
1 Year
Weight (KG) :
550
Key Selling Points :
High-accuracy
Applicable Industries :
Retail, Advertising Company, signage
Showroom Location :
Egypt, Viet Nam, India, Russia, Spain, Thailand, UAE, Malaysia
Raw Material :
Sheet / Plate Rolling
Power :
CNC
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
Bending machine
Application :
Stainless Plate Bending
Certification :
ce
Packaging Details :
fumigation wooden box
Port :
Tianjin port
Supply Ability :
1000 Set/Sets per Year
Price :
$12,000.00/sets 1-2 sets
Description
Product Description

Product Application

T20: 4 sets of servo motors control system.

1. Aluminum profile frame and chrome-faced.

2. The specially designed extra long alternate feeding mechanism.

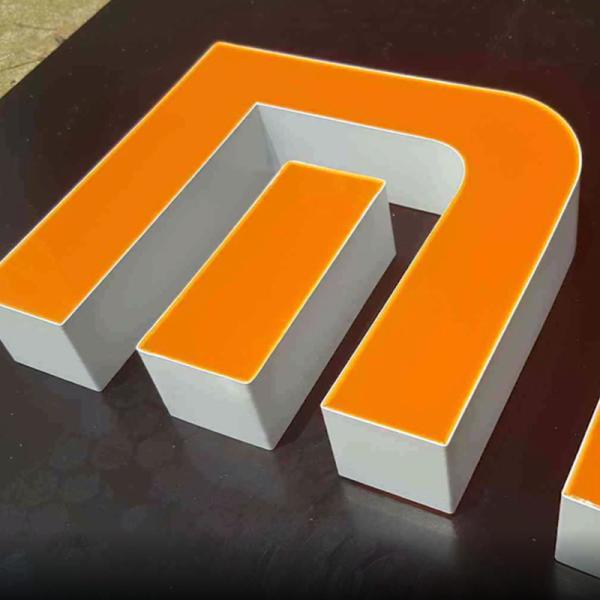

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision. It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding device
Slotting System
Plane cutter and alloy milling cutter system
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height
20~200mm
Material Thickness
0.4-2mm
Control System
4 axis servo control system
Min. Bending Angle
R6
File Format
Dxf.Plt.Ai
Power
AC220V、50Hz、3.0Kw
Air Supply
0.6m3/Min
Total Weight
500Kg
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Panasonic servo control system,SMC pneumatic component,chrome-faced,computer and air pump.

Detailed Images
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE

Machine Parts

The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel; using milling cutter for Aluminum plate and Aluminum profiles.

Our Service
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE

Pre-Sales Service

* Machines videos.

* Sample testing support.

* Factory video review.

EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE

After-Sales Service

* Machine operation video and manual.

* Engineers available to service machinery overseas.

* Online support and Videl call support.

Packing & Delivery
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
Packaging
Size
1600(L) * 750 (W) * 1620(D)
Weight
550KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
EJON T20 Stainless Steel Aluminum LED Letter Channel Letter Bending Machine with CE
Packaging
Size
660(L) * 660(W) * 1110 (D)
Weight
45KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
