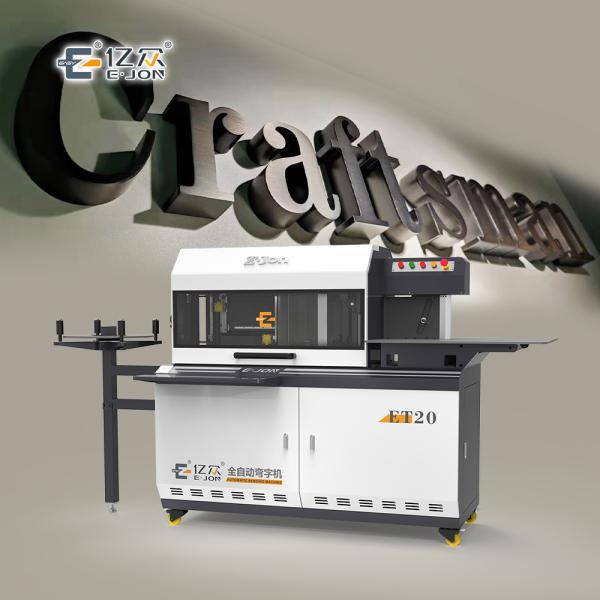

Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Specifications
Place of Origin :
Tianjin, China
Brand Name :
EJON
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Motor
Material / Metal Processed :
Aluminium alloy, Aluminum, ALLOY, Brass / Copper, Stainless steel, Carbon steel, Stainless steel,Galvanized sheet,Aluminum plate,
Automation :
Automatic
Year :
2020
Warranty :
1 Year
Weight (KG) :
700
Key Selling Points :
Multifunctional
Applicable Industries :
Advertising Company, Restaurant, Construction works , Building Material Shops
Showroom Location :
Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, India, Russia, Spain, Thailand, South Korea, Ukraine, Malaysia
Machine Type :
Roller-Bending Machine
Product name :
channel letters bender machine
Thickness :
0.4-1.2mm
Height :
20-200mm
slotting :
front and back both sides slotting
Certification :
ce
After-sales Service Provided :
Online support
Packaging Details :
The export wooden box
Port :
tianjin,qingdao,weihai,shanghai
Supply Ability :
1000 Set/Sets per Year
Price :
$13,500.00/sets 1-2 sets
Description
Product Description

Product Application

EJON Luminous signs brimless letter ET20 200MM multifunctional stainless steel aluminum profile channel letter bending machine tps cnc channel letter bending machine 3d letters bending machine automatic notching flanging and cutting

Multifunction channel letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.tps cnc channel letter bending machine

SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding system
Slotting System
Plane cutter and alloy milling cutter (double sides cutting)
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate,
Material Height
20-200mm
Material Thickness
0.4~1.0mm for stainless steel, 2mm for aluminum
Accuracy
±0.1mm
Min. Bending Angle
R6
File Format
Dxf.
Power
AC220V、50Hz、2.0Kw
Weight
700KG
Control System
7 axis control system (3 servo axis control)
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges

Main Features

1) ;The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

2) The casting on Clamping increases the grasping force, meanwhile does not scratch the material;

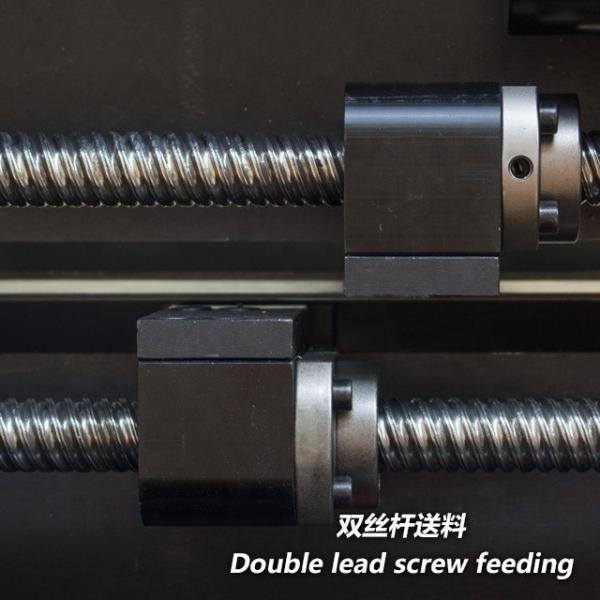

3) The double ball screw of feeding design ensures the feeding speed and precision as well as stability;

Detailed Images
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges

Machine Parts

The double feeding holder ensures the smooth feeding and avoid warping.

Main Features

The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges

Machine Parts

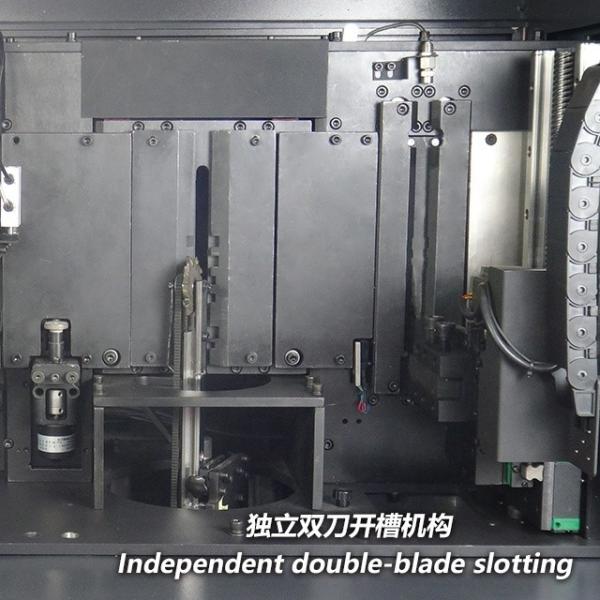

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

Steel coupling ensures the bending molding and bending speed.

Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Supporting Facility
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Packaging
Size
1330(L) * 740 (W) * 1500(D)
Weight
350



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Automatic ET20 Aluminum Channel Letter Bender Machine for Front and Back Slotting Edges
Packaging
Size
1330(L) * 740 (W) * 1500(D)
Weight
350KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
