600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
Specifications
Place of Origin :
Tianjin, China
Brand Name :
EJON
MOQ :
5 sets
Price :
$12,000.00/sets >=5 sets
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2024
Warranty of core components :
1 Year
Core Components :
Motor
Material / Metal Processed :
Aluminium alloy, Aluminum, ALLOY, Brass / Copper, Stainless steel, Carbon steel, Stainless steel,Galvanized sheet,Aluminum plate,
Automation :
Automatic
Warranty :
1 Year
Weight (KG) :
600
Key Selling Points :
Multifunctional
Applicable Industries :
Retail, Printing Shops, Advertising Company, Restaurant, Construction works , Building Material Shops
Showroom Location :
Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, Pakistan, India, Russia, Spain, Thailand, South Korea, Ukraine, Malaysia
Machine Type :
Roller-Bending Machine
Function :
Auto Feeding+bending+slotting
Precision :
0.1mm/100Meter
Description
Product Description

Product Application

1.The double independent cutting tools system can meet the processing technology of different materials.
2.Cutting use rotary milling cutter which can meet the cutting point of various angles and perfect match with the literal .
3.Automatic intelligent adjustment of milling cutter cutting depth ensure the up-down side consistency of cutting.
4.The casted cutting structure is equipped with the exclusive customized Delta servo motor, with high-quality ball screw and
high-precision square rail drive, forming a high-strength and high-speed cutting system, capable of stably processing wide and thick materials for a long time, and more.
5.The bending system is casted by ductile iron, good vibration absorption and high structural strength which reduces the number of jointed parts, equipped with high power servo motor, to ensure that the bending mechanism is permanent without deformation under high-speed bending work.

SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding system
Slotting System
Plane cutter and alloy milling cutter (double sides cutting)
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate, Aluminum profile
Material Height
20-200mm
Material Thickness
0.4~1.0mm
Accuracy
±0.1mm
Min. Bending Angle
R6
File Format
Dxf.
Power
AC220V,50Hz,2.0Kw
Weight
600KG
Control System
7 axis control system (3 servo axis control)
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending

Main Features

1) ;The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

2) The casting on Clamping increases the grasping force, meanwhile does not scratch the material;

3) The double ball screw of feeding design ensures the feeding speed and precision as well as stability;

Detailed Images
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending

Double ball screws feeding system

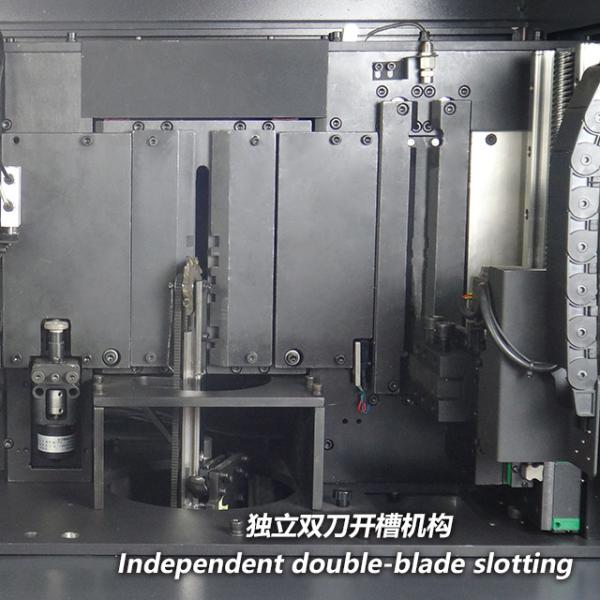

Double cutting system, double sides cutting for aluminum profile

600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending

Double alternative bending system

Servo control

600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
Supporting Facility
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
600KG Weight Roller-Bending Machine ET20 3D Letter For Precise Aluminum Bending
Packaging
Size
1410(L) * 780 (W) * 1600(H)
Weight
600
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
