Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Specifications
Slider Stroke (mm) :
250 mm
Automatic Level :
Fully Automatic
Throat Depth (mm) :
0 mm
Machine Type :
Synchronized
Length of Working Table (mm) :
1300
Width of Working Table (mm) :
1000 mm
Condition :
New
Place of Origin :
Tianjin, China
Brand Name :
EJON
Material / Metal Processed :
Brass / Copper, Stainless steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
Automation :
Automatic
Extra Services :
Slotting & Notching
Weight (KG) :
550
Motor Power (kw) :
3 kw
Key Selling Points :
High Safety Level
Warranty :
2 years
Applicable Industries :
Hotels, Printing Shops, Energy & Mining, Advertising Company
Showroom Location :
Egypt, Viet Nam, Russia, Spain, UAE
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Function :
multifunctional
Protect gas :
compressed air
Power type :
220V/50Hz
After-sales Service Provided :
Engineers available to service machinery overseas
Application :
Stainless Plate Bending, aluminium
Certification :
ce
Packaging Details :
fumigation wooden box
Port :
Tianjin port
Supply Ability :
500 Set/Sets per Year
Price :
$9,800.00/sets 1-2 sets
Description
Product Description

Product Application

T13: 4 sets of servo motors control system.

1. Aluminum profile frame and chrome-faced.

2. The specially designed extra long alternate feeding mechanism.

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

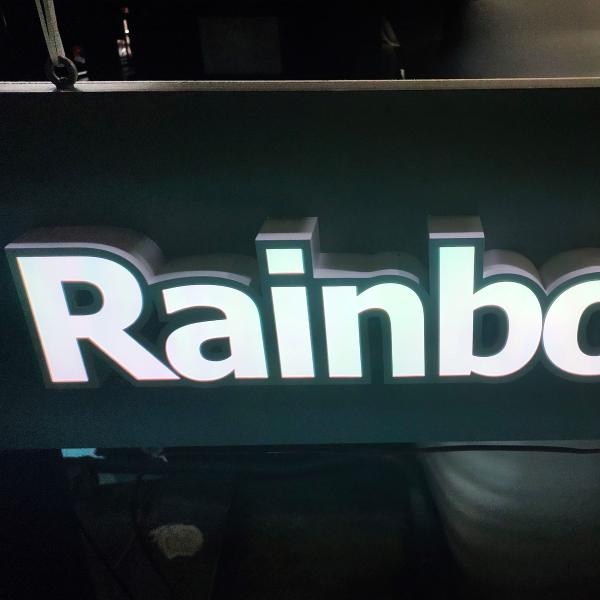

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding device
Slotting System
Plane cutter and alloy milling cutter system
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height
Stainless steel、Galvanized steel、Aluminum plate:20~130mm/
Aluminum profile:20-100mm
Material Thickness
0.4-1.2mm
Control System
4 axis servo control system
Min. Bending Angle
R6
File Format
Dxf.Plt.
Power
AC220V、50Hz、3.0Kw
Air Supply
0.6m3/Min
Total Weight
550Kg
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of servo control system.

Detailed Images
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

Machine Parts

The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel; using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Supporting Facility
Our Service
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Packaging
Size
150* 77 * 160cm
Weight
500KG



Packaging Details
1.The normal package is wooden box(Size: L*W*H).
2. Customers special request.
Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized
Packaging
Size
65* 65 * 110cm
Weight
50KG



Packaging Details
1.The normal package is wooden box(Size: L*W*H).

2. Customers special request.
