Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
Specifications
Brand Name :
FASEC
Model Number :
FB05
Certification :
IS09000
Place of Origin :
China
MOQ :
100 PCS
Price :
USD5~500 PER PC
Payment Terms :
L/C, , T/T,, Western Union
Supply Ability :
50,000 PCS per month
Delivery Time :
15 working days
Packaging Details :
standard seaworthy package
Product Name :
Scaffolding Shoring ICFs Bracing
MaterialGrade: :
Q235 Q345 & Q355B steel
Surface treatment: :
Hot Dip Galvanized and Painted
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support
Performance: :
Safety, convenient, install easily etc.
Description

Product name:ICF wall construction Steel Bracing
Type:modular building
Material:steel
Application:House Building
Function:Energy-saving
surface treatment:Hot dip galvanized

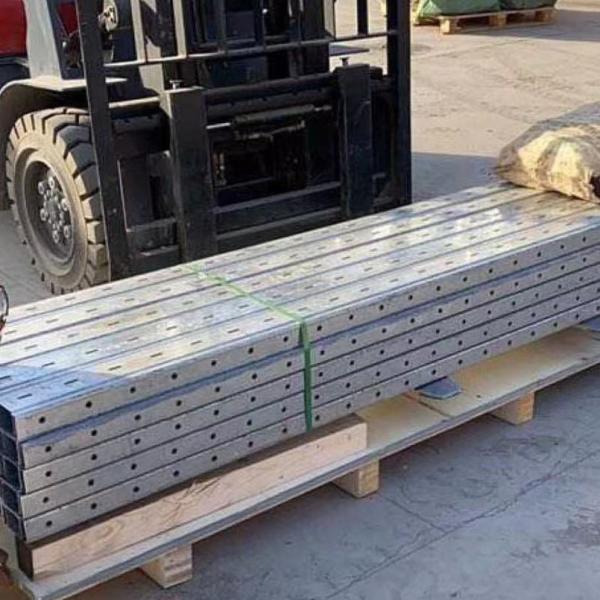

ICF bracing system:
U channel length :2700 mm,width:135 mm,both side height:60 mm,wall thickness: 3 mm,welded a plate with 16mm hole at bottom end
Support foot :Φ 38 mm,length1500 mm+Φ32mm,1500mm length,wall thickness :2 mm(total 3000mm length)
Triangle bracket: 40 mm x 40 mm,wall thickness :2 mm
Guardrail post:40*40* L:1100 mm * wall thickness 2 mm
Self-locking Pins:3pcs
Expansion bolts:3PCS
Reinforce bolts:2pcs

Product name Telescopic Construction Building Formwork Scaffolding Shoring ICFs Bracing
Material Q235 Steel
Application Building Construction
Surface treatment Dip paint, Pre Galvanized, Hot dip galvanized
Color Customized
Product Keywords scaffolding prop,adjustable steel prop scaffolding,formwork props scaffold

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
