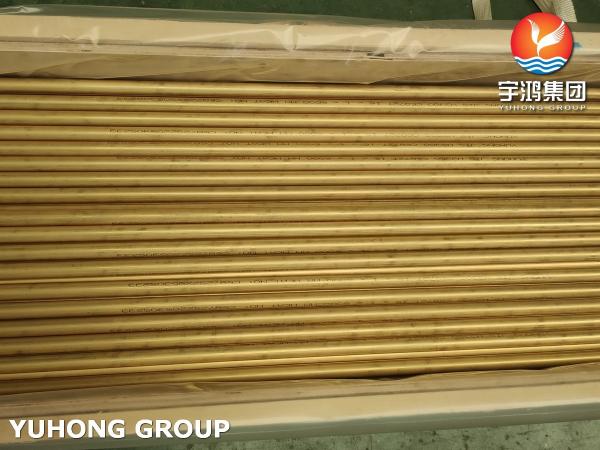

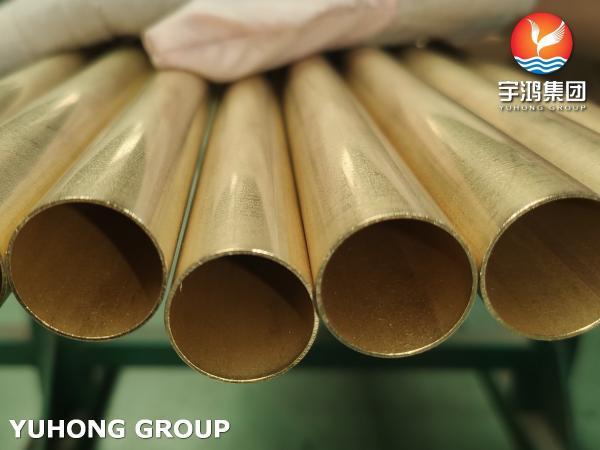

JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry
Specifications
Brand Name :
YUHONG
Model Number :
Seamless tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 60 Days
Packaging Details :
Ply-Wooden Case & Woven Bag
Material Grade :
C6872T
Standard :
JIS H3300
Ends :
PE
Testing :
UT, ET, HT, PMI
Size :
OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc
Application :
Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle
Description

JIS H3300 C6872T Copper Alloy Steel Heat Exchanger Tube In Petrochemical Industry

Copper alloys like C6872T offer excellent resistance to corrosion, especially in marine and chemical environments, making them ideal for use in heat exchangers exposed to aggressive fluids. The alloy is designed to provide good mechanical strength while maintaining the inherent flexibility and ductility of copper, allowing for high pressure and temperature tolerance.

The specific dimensions (e.g., diameter, wall thickness, and length) of JIS H3300 C6872T heat exchanger tubes depend on the application and client requirements, but they are generally available in a wide range of sizes to suit different heat exchanger designs.


Chemical Composition:

Grade

Cu

 Zn Al As

JIS H3300 C6872T

76.0–79.0%

 Remainder 1.8–2.5% 0.02–0.06%

Mechanical Properties:

Grade

Tensile Strength

Yield Strength

Elongation

Hardness

Operating

Temperature Range

JIS H3300 C6872T

≥ 295 MPa

≥ 105 MPa

≥ 35%

80–100 HV

Stable in environments

up to 200°C (392°F)

Applications:

  1. Marine Industry: For seawater heat exchangers, cooling systems in ships, and offshore platforms due to its corrosion resistance in saltwater environments.
  2. Chemical Processing: In heat exchangers handling aggressive chemicals or fluids where corrosion resistance is crucial.
  3. Power Plants: Used in condensers and cooling systems where high thermal conductivity and durability are necessary.
  4. Refrigeration and Air Conditioning: In evaporators, condensers, and heat exchangers that require efficient heat transfer and low maintenance.
  5. Petrochemical Industry: For heat exchangers in systems handling oils, gases, and other petrochemical fluids.
  6. HVAC Systems: In heating, ventilation, and air conditioning systems that need reliable, long-lasting performance in heat exchangers.
