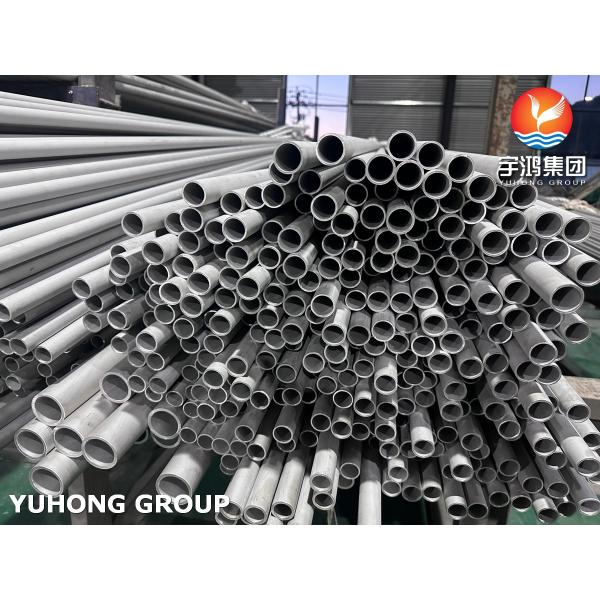

ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
ASME SA213 TP347H Seamless Stainless Steel Heat Exchanger Tube
Specifications
Brand Name :
YUHONG
Model Number :
TP347, TP347H
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 60 Days
Packaging Details :
Ply-Wooden Case & Woven Bag
Material Grade :
TP347H, TP347
Standard :
ASME SA213, ASTM A213
Ends :
PE
Testing :
UT, ET, HT, PMI
Size :
OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc
Application :
Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle
Description

Stainless Steel Heat Exchanger Tube,ASME SA213 TP347H Seamless Tube , Heat Exchanger Application

TP347H exhibits superior strength and creep resistance at elevated temperatures, making it suitable for high-stress applications. Can withstand temperatures up to approximately 1,200°F (650°C), making it ideal for high-temperature applications. ASME SA213 TP347H Stainless Steel Heat Exchanger Tube is designed for high-temperature applications, offering enhanced corrosion resistance and mechanical strength. Made from TP347H stainless steel, it contains higher carbon content and is stabilized with niobium to prevent carbide precipitation.


Chemical Composition:

Grade

Cr

Ni

Nb

 C

TP347H

17.0-19.0%

9.0-13.0%

≥ 10x C content,

typically 0.2–0.7%

 0.04-0.10%

Mechanical Properties:

Grade

Tensile Strength

Yield Strength

Elongation

Hardness

TP347H

≥ 205 MPa (30 ksi)

≥ 515 MPa (75 ksi)

≥ 35% in 50 mm

Typically ≤ 95 HRB

Applications:

1. Chemical Processing

  • Heat Exchangers:Ideal for handling high-temperature and corrosive chemicals.Ensures consistent performance and longevity.
  • Reactors:Maintains stability and efficiency in chemical reactions.

2. Power Generation

  • Boilers and Superheaters:Effective in high-temperature steam service.Enhances plant efficiency and longevity.

3. Petrochemical Industry

  • Refinery Applications:Suitable for systems handling high-pressure steam and corrosive substances.Provides long-term reliability and efficiency.

4. Aerospace Industry

  • Exhaust Components:Withstands high temperatures and corrosive conditions.Ensures long-lasting performance in aerospace applications.

5. Industrial Heating

  • Furnaces and Kilns:Withstands severe thermal cycling.Provides long-lasting support in high-heat environments.
