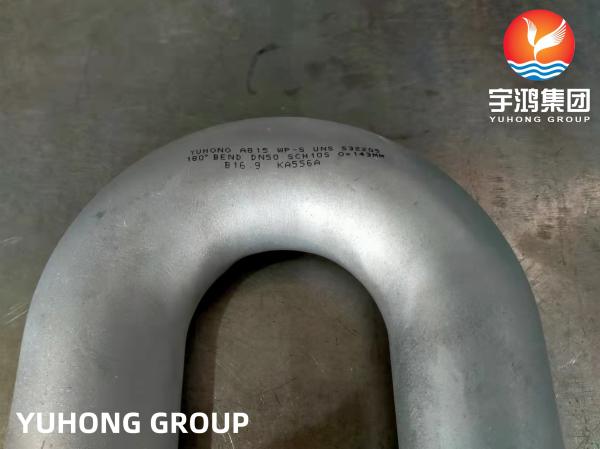

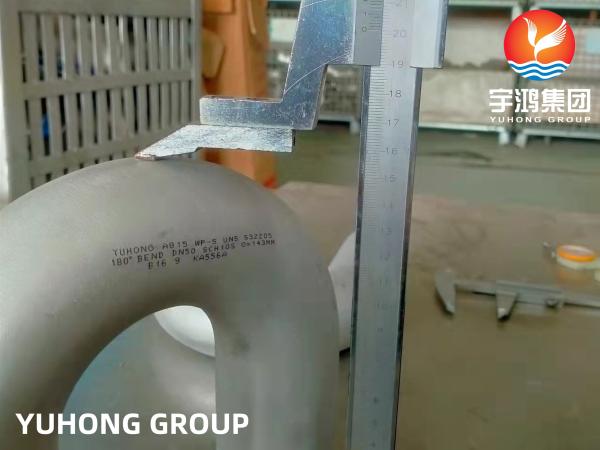

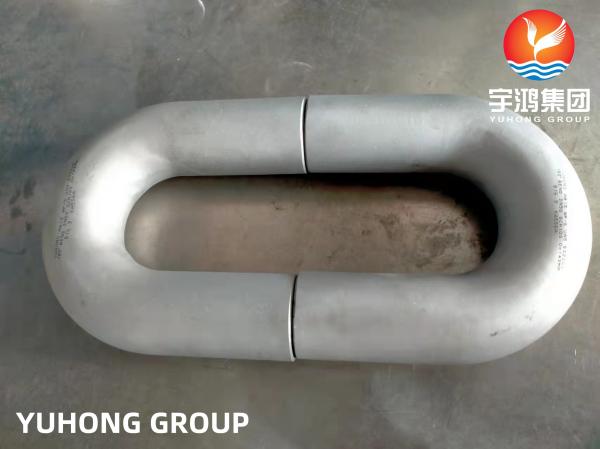

ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler
Specifications
Brand Name :
YUHONG
Model Number :
180 DEG. ELBOW
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case
Material :
UNS S32205
Standard :
ASTM A815
Radius :
LR ( Long Radius ) , SR ( Short Radius )
Testing :
UT , PT , PMI
Size :
1/2 inch - 98 inch
Application :
Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section
Description

ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler

ASTM A815 UNS S32205 Duplex Stainless Steel Pipe U Bends can be welded or seamless and they are made up of a corrosion-resistant, strong and high-temperature capable duplex steel material. These Duplex Stainless Steel U Bends are known for their increased tensile strength and better resistance to pitting and crevice corrosion compared to other duplex steel grades. The higher molybdenum content makes them more durable than standard stainless steel alloys, making them be used in harsh environments without influencing quality. Our YUHONG GROUP is a manufacturer, supplier of Duplex S31803 / S32205 Stainless Steel Pipe U Bends which repel localized corrosion, especially crevice corrosion and pitting, and are more durable than stainless steel.

EQUIVALENT GRADES:

STANDARD

UNS

WERKSTOFF NR.

Duplex 2205

S31803 / S32205

1.4462

Dimensions

ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560,

Thickness

SCH10 - SCH XXS available with NACE MR 01-75

Sizes

DN15-DN1200

Connection

Welding

Bending Radius

R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom

Manufacturing process

Press, Forge, Push, Cast, etc.

Types

Tees, Crosses, Reducers, Elbows, Stub Ends, Pipe Bends, End Caps, Etc.

Chemical Propeties:

C

Mn

Si

N

P

Cr

Fe

Ni

S

Mo

0.03 max

2 max

1 max

0.8 to 0.2

0.03 max

21 to 23

63.54 min

4.5 to 6.5

0.02 max

2.5 to 3.5

Mechanical Properties:

Density

Melting Point

Yield Strength (0.2%Offset)

Tensile Strength

Elongation

7800 kg/m3

1350 °C (2460 °F)

80000 Psi, 550 MPa

116000 Psi, 800 MPa

15 %

Applications:

  • Plumbing
  • Oil and Gas Pipeline
  • Chemical Industry
  • Water Supply Systems
  • Fabrication Industry
  • Food Processing Industry
  • Structural Pipe
  • Petroleum Industry
  • Power sector
  • Hardware tools
  • Metallurgy Industry
  • Construction Industry
  • Shipbuilding Industry
