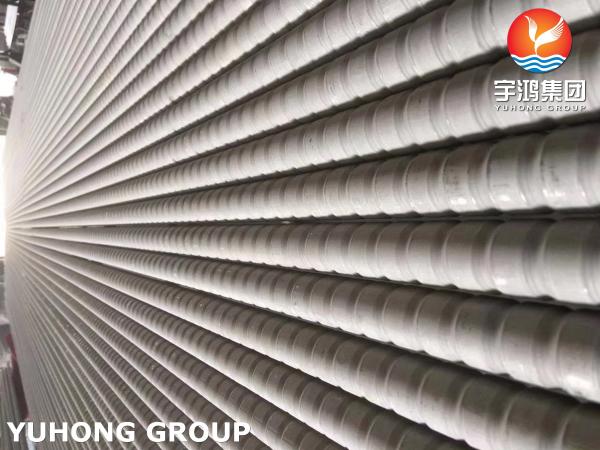

Stainless Steel Corrugated Finned Tube For Heat Exchanger Industrial Cooling System
Stainless Steel Corrugated Finned Tube For Heat Exchanger Industrial Cooling System
Stainless Steel Corrugated Finned Tube For Heat Exchanger Industrial Cooling System
Stainless Steel Corrugated Finned Tube For Heat Exchanger Industrial Cooling System
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA213 TP321
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100 KGS
Price :
Negotiate
Payment Terms :
T/T,L/C
Supply Ability :
4150 Ton Per Month
Delivery Time :
20-80 days
Packaging Details :
Plywooden case with Iron Frame
Product name :
Corrugated Finned Tube
Application :
Heat Exchanger, Fluid Cooling
Dimensions :
19.05mm, 25.4mm, etc.
Length :
1-12000mm
Fin height :
2-8mm
Tube material :
Stainless Steel, Copper Etc
Description

Stainless Steel Corrugated Finned Tube For Heat Exchanger Industrial Cooling System


Product Overview:


Our stainless steel corrugated finned tubes represent the pinnacle of heat exchange technology, offering superior thermal performance and corrosion resistance.

The corrugated design significantly enhances heat transfer efficiency while maintaining structural integrity.


Technical Specifications:


Base Tube Specifications:

Parameter

 Outer Diameter Wall Thickness Length Material
Range 19.05-38.1mm 1.65-3.05mm Up to 12000mm SS304/SS304L/SS316/SS316L



Fin Specifications:

Parameter Fin Height Fin Thickness Fin Density Fin Pattern
Value 8-25mm 0.4-0.8mm 3-11 FPI Corrugated/Wave



Chemical Composition (SS316):

Element C Mn P S Si Cr Ni Mo
% ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤1.00 16-18 10-14

2-3



Mechanical Properties:

Property Tensile Strength Yield Strength Elongation Hardness
Value ≥515 MPa ≥205 MPa ≥40% ≤187 HB



Key Features:


  1. Enhanced heat transfer efficiency (30-50% higher than smooth tubes)
  2. Excellent corrosion resistance
  3. Lower pressure drop
  4. Compact design
  5. Extended service life
  6. Superior mechanical bonding


Manufacturing Process:


  1. Base tube preparation
  2. Surface cleaning
  3. Fin forming
  4. Fin attachment
  5. Quality inspection
  6. Surface treatment
  7. Final testing


Quality Assurance:


  • 100% Helium Leak Testing
  • Hydrostatic Testing
  • Ultrasonic Testing
  • X-ray Inspection
  • Thermal Performance Testing


Performance Advantages:


  • Operating Temperature: -196°C to 550°C
  • Working Pressure: Up to 150 bar
  • Heat Transfer Coefficient: Up to 50% higher than smooth tubes
  • Fouling Resistance: Significantly reduced
  • Design Life: >20 years


Standards Compliance:


  • ASME Section VIII
  • TEMA Standards
  • PED 2014/68/EU
  • ISO 9001:2015
  • API Standards


About Yuhong Holding Group Co., Ltd:


With over 20 years of export experience to 80+ countries, Yuhong Holding Group ranks among China's top 5 finned tube exporters. Our 20,000 m² facility houses 55 production lines operated by 110+ skilled professionals. As an ISO-certified manufacturer, we combine advanced technology with rigorous quality control to deliver superior heat exchange solutions worldwide. Our commitment to excellence and continuous innovation has established us as a trusted partner in the global industrial market.


Contact us today to discuss your specific requirements and discover how our corrugated finned tubes can optimize your heat exchange applications.
