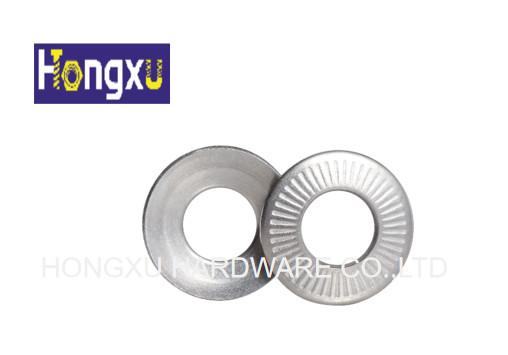

SS 304 Nfe25511 Sun Steel Flat Washer Tapered Antiskid Washer ISO Passed
SS 304 Nfe25511 Sun Steel Flat Washer Tapered Antiskid Washer ISO Passed
Specifications
Model Number :
M3-M20
Certification :
ISO
Place of Origin :
CHINA
MOQ :
Can Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 tons per Month
Delivery Time :
it depends
Packaging Details :
In carton,then into pallets
Material: :
stainless Steel
Size: :
M3-M20
Standard: :
Nfe25511
Usage :
Fasteners for mechanical industry
Description

SS 304 Nfe25511 sun washer tapered washer antiskid washer Stainless steel M3-M20 Fasteners for mechanical industry


Description:

Product Name: French washer

Product standard: nfe25511

Product specification: M4-M20

Product material: stainless steel

When the gasket is installed to the press level, it can ensure that the stress distribution on the screwed parts is uniform.

Because of the striation on the washer, it can prevent the thread of bolt or nut from loosening.

Because of their elasticity, they can make up for the sinking of the assembly material

Nfe25-511 lock washr (also known as anti-skid gasket) of French standard is made of 65Mn or stainless steel with high quality, which is strictly hardened, with 500 heours of salt spray Dacromet coating and 48 hours of salt spray environmental protection zinc. It is widely used in electric control cabinet, electrical equipment, communication equipment, elevator, railway, rolling stock assembly, medical machinery matching and special equipment assembly industries.

Product use and installation: in consideration of the locking effect of the strip gasket, the thickness of the strip gasket is specified so that the corrected load is slightly lower than the service pressure of grade 8.8 screw. In this case, the pressure distribution on the parts to be tightened is slightly uneven. If it is necessary to make the gasket reach a large elastic reaction force in the assembly, it is necessary to apply a suitable smooth conical gasket. When installing the Striped tapered gasket, the concave must be facing the side of the tightening part.

Specification:

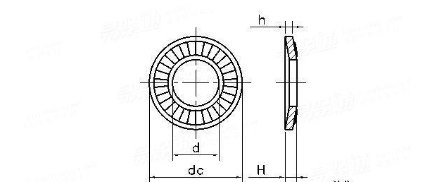

SS 304 Nfe25511 Sun Steel Flat Washer Tapered Antiskid Washer ISO Passed

SS 304 Nfe25511 Sun Steel Flat Washer Tapered Antiskid Washer ISO Passed

Available Standard Nfe25511 French sun washer
Specification Standard or customization
Material steel
Finish SS304
Packing Plastic Bags+Chipboard Cartons+Plywood Pallet
Application Fasteners for mechanical industry
Remarks Samples are free.

Application:

SS 304 Nfe25511 Sun Steel Flat Washer Tapered Antiskid Washer ISO Passed

It is widely used in electric control cabinet, electrical equipment, communication equipment, elevator, railway, rolling stock assembly, medical machinery matching and special equipment assembly industries.
