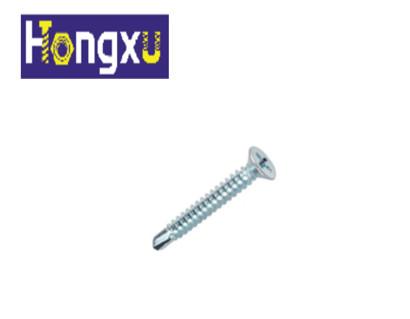

DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess
DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess
DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess
DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess
Specifications
Model Number :
All frequent sizes
Certification :
ISO
Place of Origin :
CHINA
MOQ :
Can Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 tons per Month
Delivery Time :
60days
Packaging Details :
Bulk Packed(25kgs) / Small Box ,In Cartons,Then inyo pallets
Item Name :
Self Drilling Screw
Material :
Carbon steel
Surface :
Zinc Plated
Sample :
as you request
Size :
All frequent sizes
Packing :
Bulk Packed(25kgs) / Small Box
Description

DIN 7504P Flat head,C1022 hardened self drilling screw with philips recess,zinc plated

Product Description:

With standard cross groove, the sliding head phenomenon is not easy to appear in the installation process, which can make the tool install quickly and save time.

The surface thread is smooth and complete, the screw mouth is deep, and the force is uniform, so it is not easy to remove teeth. The surface is smooth and smooth without burrs, and the connection with threads is smooth. It is fast and convenient.

Thread has a tightening effect, no residual burr, the diseased threads are complete and clear, and few teeth are missing.

DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess

Specification:

DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess

Name Cross flat head machine screw
Groove type Cross
Standard DIN7504P
Surface Zinc plated
Material Carbon steel
Packing Plastic Bag + Carton

SIZE ST2.9 ST3.5 (ST3.9) ST4.2 ST4.8 ST5.5 ST6.3
d
P Pitch 1.1 1.3 1.3 1.4 1.6 1.8 1.8
dk MAX 5.5 6.8 7.5 8.1 9.5 10.8 12.4
MIN 5.2 6.44 7.14 7.74 9.14 10.37 11.97
k ≈ 1.7 2.1 2.3 2.5 3 3.4 3.8
Slot number 1 2 2 2 2 3 3
dp MAX 2.3 2.8 3.1 3.6 4.1 4.8 5.8
Drilling range (plate thickness) 0.7~1.9 0.7~2.25 0.7~2.4 1.75~3 1.75~4.4 1.75~5.25 2~6

Application:

DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess

Products are widely used in

1.electronics

2.hardware

3.toys

4.private

5.medical

6.sports

7.equipment

8.other industries.

DIN 7504P Flat Head C1022 Hardened Self Drilling Wood Screws With Philips Recess
