Specifications
Brand Name :
GMC
Certification :
CE and Patent Certificate
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5-500 set a year
Delivery Time :
70 days
Packaging Details :
Customized packaging
Voltage :
380V 50Hz 3phases,380V
Condition :
New
Tile type :
Glazed,Aluminum
After-sales service provided :
Field maintenance and repair service
Name :
Pu Sandwich Panel Equipment,Double Liner Aluminium Roof Tile Cold Roll Forming Equipment,galvanized steel sheet machinery
Product name :
Hydraulic decoiler metal deck roll forming machine,shanghai high speed high precision stud and track roll forming machine
Description

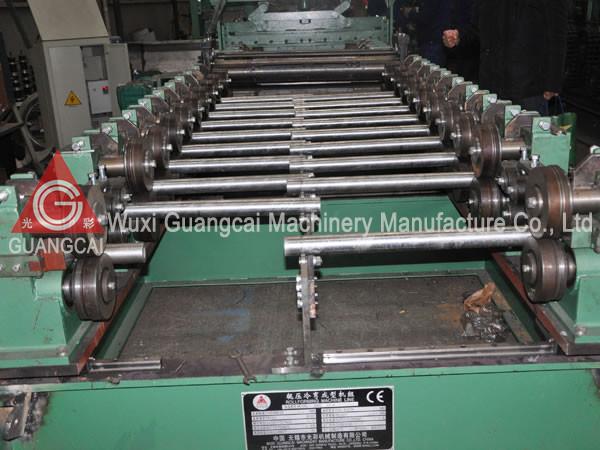

Folding and Roll Forming Machine

Features
1. The folding and roll forming machine produces folded panels that are applicable to make doorframe, file cabinet, electrical cabinet, household appliances, etc.

2. Our machine adopts stepless variable speed drive to adjust final product's specification, and any specification is available but the bottom width should be within 300-1200mm.

3. Holes or notches may be punched on the material first, and then independent bending process can be carried out after roll forming operation is finished.

4. This folding and roll forming machine can be designed according to the drawings provided by our client.

Processing Flow
Passive decoiling → guided material feeding → roll forming → folding edges with fixed length and cutting → offloading

Composition

1. 3T passive decoiler
2. Shape forming machine
3. Hydraulic shear

4. Hydraulic station
5. PLC control cabinet
6. Run out table

Specifications

Model GWC300-1200 Note
Applicable material Galvanized plate and color plate This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width ≤1250mm
Processing thickness 0.4-1.2mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 5.5kW / 5.5kW These parameters can be set according to the required production capacity.
Forming passes 10
Forming speed 5-15 meters/minute
Machine dimensions 5×1.5×1.2m
Machine weight 4T
