Specifications
Place of Origin :
Shandong, China
Brand Name :
safebuild
Product name :
Highway Guardrail
Material :
Stainless Steel
Color :
Customized
Application :
Roadway Safety
Usage :
Road Traffic Safety
Feature :
Anti-corrosion
Type :
Straight Barrier
Surface treatment :
Galvanized + Powder Coated
Certificate :
ISO9001:2008
Packing :
Carton
Packaging Details :
Export standard bundle or as clients request
Port :
Qingdao, Tianjin port, China
Supply Ability :
200000 Piece/Pieces per Year
MOQ :
200 pieces
Price :
$50.00/pieces 200-1999 pieces
Description
Products Description

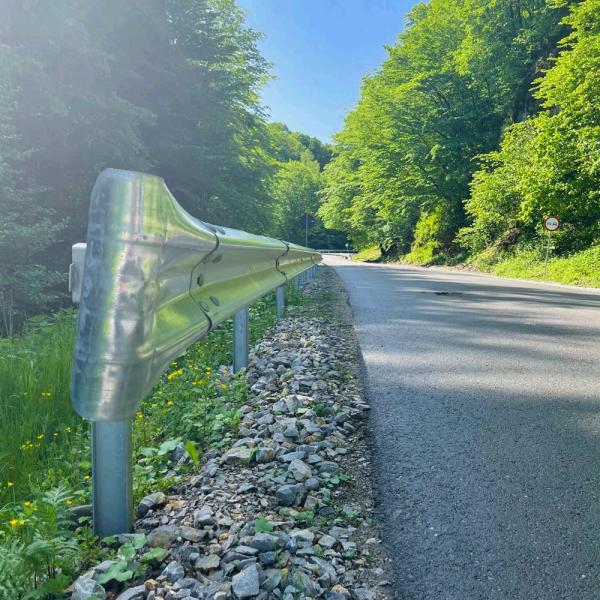

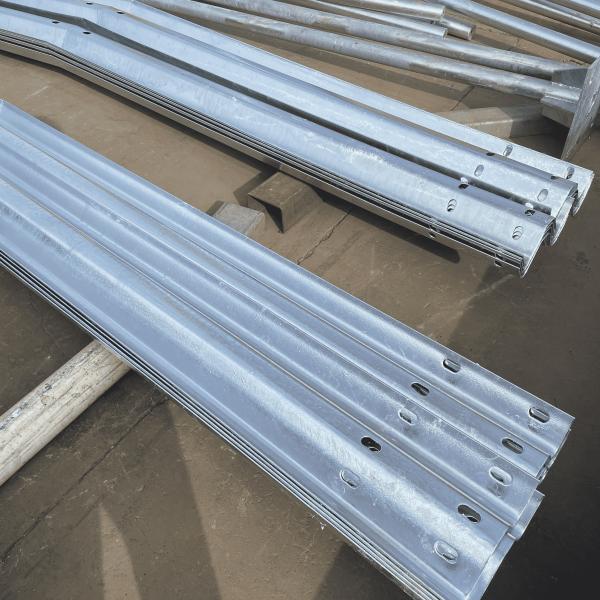

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways,dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited. All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA 1350 Standard and etc.
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Product Paramenters
American AASHTO-M180 Technical Standard W-beam highway guardrail
TYPE
Overall Length
(mm)
Effection Length
(mm)
Norminal Uncoated Thickness
(mm)

TYPE Ⅰ
4130
3810
2.67

TYPE Ⅱ
4320
4000
2.67

MECHANICAL PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.
NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.
Manufacturing Technique
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Details Images
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Company Profile
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Established in 2015, Shandong Safebuild Traffic Facilities Co., Ltd. is located in Economic Development Zone of guan County, Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line. We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant! Post pile driver machine, signs, sign posts, reflectors, separation barrier, movable barrier, bridge barrier, highway guardrail, road reflectors, road studs, anti-crash pad with direction signs, wire fence, anti-glare panel, highway noise barrier, block, bracket, post cap, guardrail accessories, transportation equipment, road-marking machine, engineer machine, safety products, the above products producing,and selling. Import and export business of various commodities and technologies. (With the exception of the commodities and technologies that are restricted by the state or prohibited from import and export by the company)
1. who are we?
We are based in Shandong, China, start from 2019,sell to Domestic Market(34.00%),Africa(25.00%),South America(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Northern Europe(5.00%),South Asia(5.00%),Eastern Europe(3.00%),Eastern Asia(3.00%),Western Europe(3.00%),Southern Europe(3.00%),North America(2.00%),Central America(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
guardrail,w beam guardrail,road barrier,road reflector,wire fence

4. why should you buy from us not from other suppliers?
The company is mainly engaged in traffic safety protection facilities, with professional technical personnel, standardized production management system, quality control system, perfect after-sales service team, and many years of overseas export experience.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian,Korean
Recommend Products
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety

Road Studs

Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety

C POST FOR GUARDRAIL

Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety

TERMINAL CONNECTOR

Packing & Delivery
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
Our Advantages
Customized Hot Dipped Galvanized Metal 3D Welded Corrugated Beam Guardrail for Safety
◆Professional manufacturers and suppliers of safety protection products;
◆The company has many years of export experience, the export share is about 50%;
◆According to customer requirements, design,research and development, customized products;
◆Provide one-to-one online installation guidance and 24-hour service hotline : +86-635-7070701;
