Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Specifications
Place of Origin :
Shandong, China
Brand Name :
Safebuild
Material :
Q235 Q345
Product name :
Highway Guardrail
Color :
Customized
Zinc coating :
550-600g/㎡,Customized
Technology :
Hot Galvanized+cold Rolled
Surface treatment :
Galvanized ,Powder Coated
Standard :
AASHTO M-180
Certificate :
CE/BV/ISO 9001/ISO14001/ISO 18001
Application :
Roadway Safety
Usage :
Outdoor Security
Packaging Details :
Export standard bundle or as clients request
Port :
Qingdao Tianjin Ningbo Shanghai Port, China
Supply Ability :
12000 Ton/Tons per Month
MOQ :
20 tons
Price :
$760.00/tons 20-199 tons
Description
Products Description

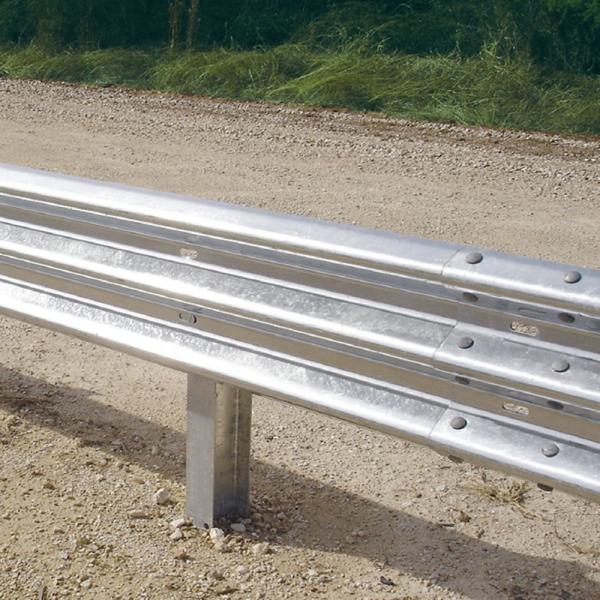

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited. All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA 1350 Standard and etc.
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Product Paramenters
American AASHTO-M180 Technical Standard W-beam highway guardrail
TYPE
Overall Length
(mm)
Effection Length
(mm)
Norminal Uncoated Thickness
(mm)
TYPE Ⅰ
4130
3810
2.67
TYPE Ⅱ
4320
4000
2.67

MECHANICAL PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.

NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.


Manufacturing Technique
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Details Images
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
C POST+BOX SPACER
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
CHANNEL POST+CHANNEL SAPCER
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
C POST+C SPACER
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
U POST+U SPACER
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
H POST+ BRACKET
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
C POST+TRAPEZOIDAL SPACER
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
SIGMA POST+ BRACKET
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
H POST+H SPACER
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Z POST+STEEL CLIP
Company Profile
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
BENDING MACHINE
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
DECOILER
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
PUNCHING MACHINE
Recommend Products
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
C POST FOR GUARDRAIL
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
H POST FOR GUARDRAIL
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
U POST FOR GUARDRAIL
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
Z POST FOR GUARDRAIL
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
BOX SPACER FOR GUARDRAIL
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
FISHTAIL END FOR GUARDRAIL
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
TERMINAL CONNECTOR
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
BEND GUARDRAIL
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
RADIAN GUARDRAIL
Product packaging
Focusing on the transportation facilities, the company has a variety of packaging for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.
Our Advantages
Outdoor Security Customized Hot Dip Galvanized W Beam and Thrie Beam Highway Guardrail
◆Professional manufacturers and suppliers of safety protection products;
◆The company has many years of export experience, the export share is about 50%; ◆According to customer requirements, design, research and development, customized products; ◆Provide one-to-one online installation guidance and 24-hour service hotline : + 86-635-7070701;
