Specifications
Place of Origin :
Shandong, China
Brand Name :
Safebuild
Product name :
Highway Guardrail
Material :
Stainless Steel
Color :
Customized
Application :
Roadway Safety
Usage :
Road Traffic Safety
Feature :
Anti-corrosion
Surface treatment :
Galvanized + Powder Coated
Name :
Galvanized Highway Guardrail
Certificate :
ISO9001:2008
Keyword :
Crowd Control Barrier Fence
Packaging Details :
Export standard bundle or as clients request
Port :
Qingdao, Tianjin port, China
Supply Ability :
200000 Piece/Pieces per Year
MOQ :
200 pieces
Price :
$10.00/pieces 200-1999 pieces
Description
HIGHWAY GUARDRAIL
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
The ”end“ of the highway guardrail is found at the end of the road guardrail or at the joint section, which is composed of an "end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to
accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types:
1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End

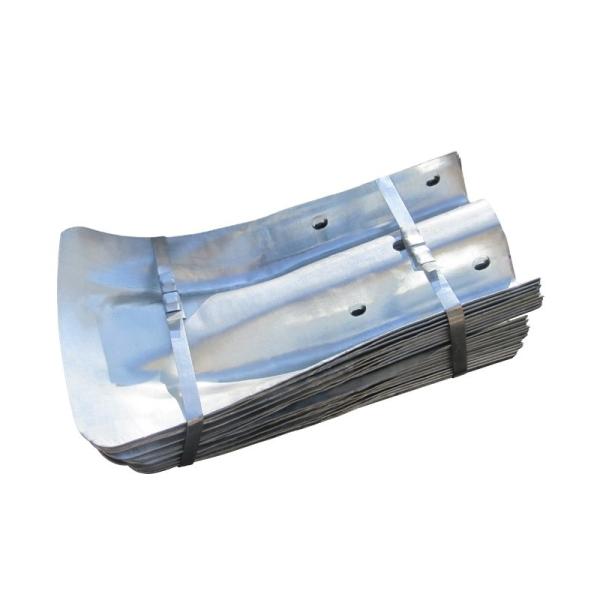

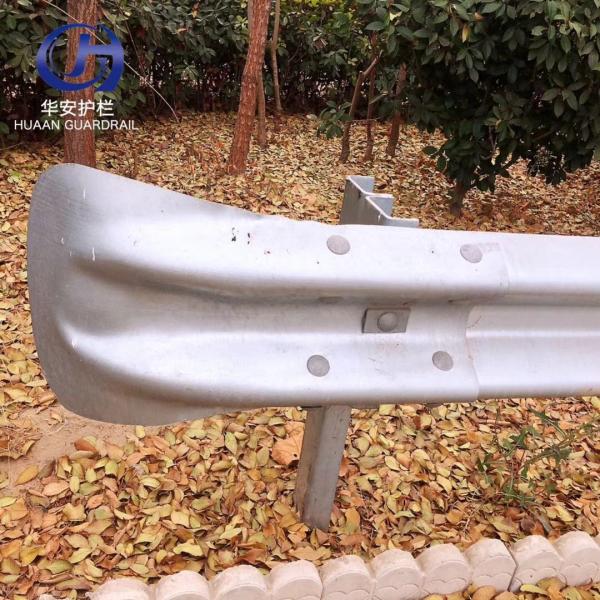

The fashtail end, is a European and American countries design concept, it is shaped like a fish's tail, so it is called the fashtail end, it can also be called an endwing. It consists of the strip which is formed after punching and forming a molding.

This product is simple and easy to assemble, and through the surface hot galvanizing processing it undergoes it as gained a strong anti-corrosion ability, it can play a guiding role to the cars on the road, it reduces the effect of collisions and it effectively prevents the vehicle from leaving the road.

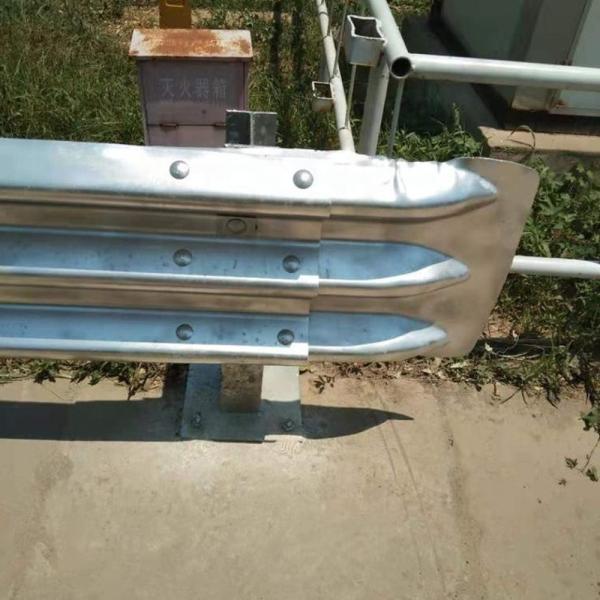

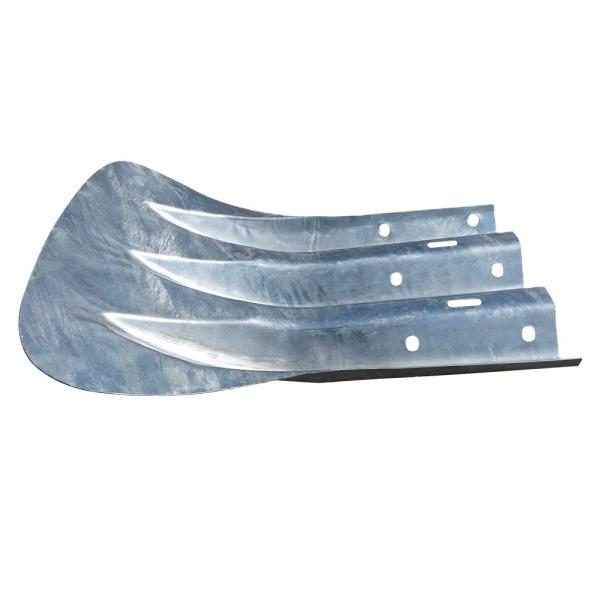

The fishtail end is divided into two types of specifications and models with W beam and Thrie beam. W beams are used with a W beam guardrail plate, and Thrie beams are used with a Thrie beam guardrail plate.
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
Specifications:
Materials: Steel(Q235 or Q345 Grade)
Length: 700,710,730 mm or customized
Wave Width: 310, 506,460mm or customized
Wave Height: 83,85,310mm or customized
Thickness: 2.75mm,3mm,4mm or customized
Zinc Coating: 350- 550g/m2Surface treatment:Hot dipped Galvanized or powder coating
Features:Great corrosion resistant, high intensity, long and durable
American AASHTO-M180 Technical Standard W-beam Highway Guardrail
TYPE
Overall Length
(mm)
Effection Length
(mm)
Norminal Uncoated Thickness
(mm)
TYPE I
4130
3810
2.67
TYPE II
4320
4000
2.67
MECHANICAL
PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.
NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
Item
Data
Solar cell
(monocrystalline silicon) 2.5V/ 120mAh
Working time
72 hours for 8 hours at a time;
Energy storage element
Rechargeable battery 1.2V/ 600mAh
Material
cast aluminum alloy shell + bulletproof PC
Working environment
-20℃ ~ 70℃;
Starting light intensity
positive light is less than 500Lux;
Display colors
red, yellow, white, blue and green
Visual distance
greater than 1000m
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
Crowd Control Barrier Fence W Beam Guardrail Beam Dimensions Fishtail Terminal End
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China.We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.

Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance,moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors andother road safety products such as road suds.

Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
