Specifications
Brand Name :
NL
Model Number :
TCWSR
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
50 Meter/Meters (Min. Order)
Price :
$39.50 - $259.50 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 -20 Est. Time(days) 15
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Material :
PTFE
Size :
3/8"~2"
Length :
20~200m/roll
Thickness :
0.75~1.05mm
Processing Service :
Moulding, Cutting
Temp. Range :
-40℃~ 150℃
Description

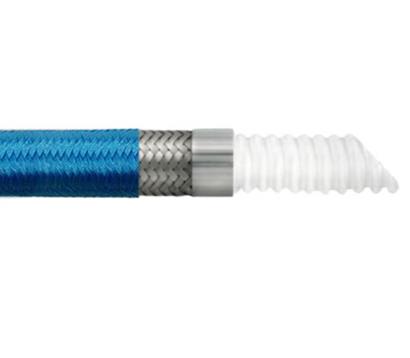

Rubber Cover TCWS

Construction: A helically convoluted PTFE (Polytetrafluorethylene) suction/pressure hose, with external vacuum wire with EPDM vulcanized high tensile stainless steel braid. The hose has very good vacuum and kink resistance.
Temp. Range: -40°C and +150°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength. EPDM vulcanized stainless steel braid ensures a high flexibility and easy cleanability. Making it ideal for Food, Bio,and Cosmetic industry.
Certification: FDA.

Part no. ID Mini OD Tube Wall thickness Bending
radius 		Work pressure Bursting pressure
in. mm mm mm mm bar bar
TCWSR010 3/8" 9.5 22.7 0.75 25 110 440
TCWSR013 1/2" 12.7 25.7 0.75 35 100 400
TCWSR016 5/8" 15.9 29.5 0.75 45 85 340
TCWSR019 3/4" 19 33 0.90 50 80 320
TCWSR025 1" 25.4 39 1.00 70 60 240
TCWSR032 1-1/4" 32 49.7 1.00 85 45 180
TCWSR038 1-1/2" 38 55 1.00 110 35 140
TCWSR051 2" 50.8 68.5 1.10 140 25 100

ID38mm OD55mm Rubber Cover Ptfe Convoluted Tubing For Hot Air Oil

Packaging & Shipping

ID38mm OD55mm Rubber Cover Ptfe Convoluted Tubing For Hot Air Oil

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
