Specifications
Brand Name :
NL
Model Number :
TCGS
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
100 Meter/Meters (Min. Order)
Price :
$22.50 - $99.50 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 -100 Est. Time(days) 15
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Material :
PTFE
Size :
3/8"~2"
Length :
20~200m/roll
Thickness :
0.75~1.10mm
Processing Service :
Cutting, Assembly
Temp. Range :
-70℃~ 260℃
Description

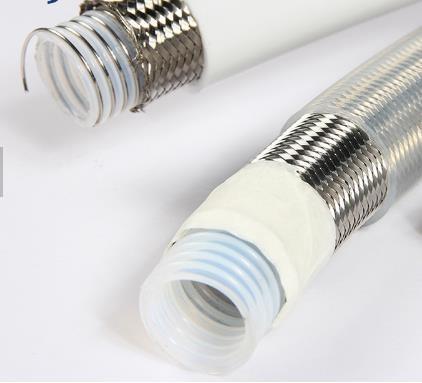

Stainless Steel Braid Cover Convoluted PTFE Tube(glass fiber reinforced)

Construction: Type TCGS is manufactured from convoluted PTFE tube, glass fiber reinforced, with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on.
Virgin and anti-static liners are available.
Certification: FDA

Part no. ID OD Tube Wall thickness Bending
radius
Work pressure Bursting pressure
in. mm mm mm mm bar bar
TCGS010 3/8" 9.5 15.9 0.75 20 110 440
TCGS013 1/2" 12.7 18.9 0.75 30 100 400
TCGS016 5/8" 15.9 22.7 0.75 60 85 340
TCGS019 3/4" 19 26.2 0.90 60 80 320
TCGS025 1" 25.4 32.2 1.00 70 60 240
TCGS032 1-1/4" 32 42.9 1.00 95 45 180
TCGS038 1-1/2" 38 48.2 1.00 130 35 140
TCGS051 2" 50.8 61.7 1.10 170 25 100

Packaging & Shipping

Glassfiber Reinforced 50.8mm Id Ptfe Lined Fuel Hose 61.7mm OD

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
