Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm
Specifications
Brand Name :
NL
Model Number :
SQ
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
50 Meter/Meters (Min. Order)
Price :
$16.00 - $155.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 -50 Est. Time(days) 10
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Material :
Silicone
Color :
White
Size :
1/4"~4"
Length :
4m or 6m/roll
Temp. Range :
-60℃~200℃
Processing Service :
Moulding, Cutting
Description

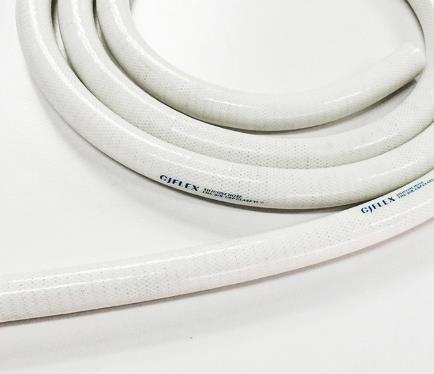

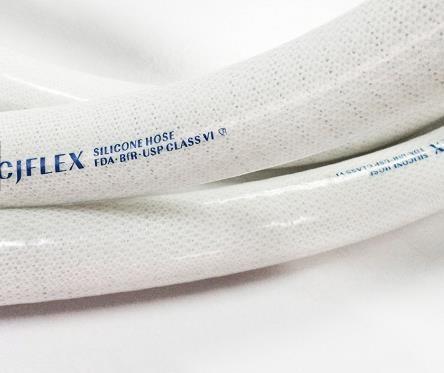

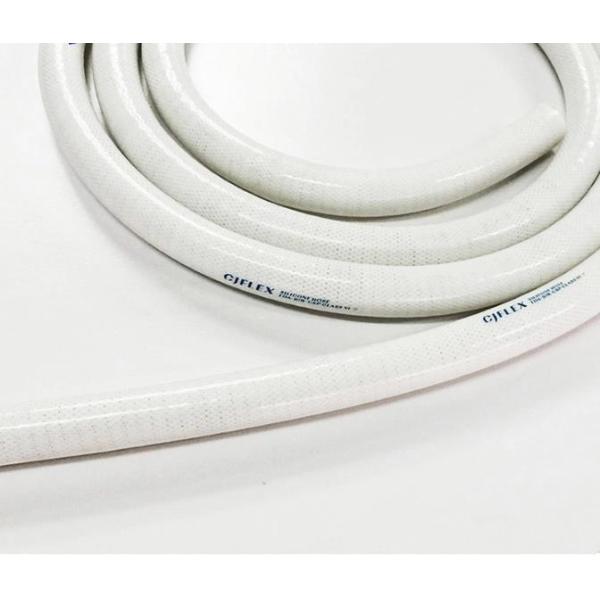

Stainless Steel Helix and Polyester Reinforced Silicone Hose

Construction: Type SQ is manufactured from High purity platinum cured Silicone with single stainless steel helix and 4 layers of polyester reinforcement.

Temp. Range: -60℃ and 200℃. (+260℃ on request)

Colour: Translucent (Colored covers available)

Applications:

Smooth inner and outer surface to resist Material adhesion.

Suitable for pressure and vacuum.

Suitable for CIP and SIP cleaning

Odourless, Tasteless, Non-Toxic

Certification: FDA, USP,BFR, USDA, ISO 10993

Length: Standard length is 4 or 6 meters.

** PRESSURE DECREASE BY 1% FOR EVERY 1℃ ABOVE 100℃.

Part no. ID OD Bending radius Work pressure Bursting pressure Vacuum
in. mm mm mm bar bar bar
SQ006 1/4" 6.4 17.5 29 13 39 0.91
SQ008 5/16" 7.9 19 31 12 36 0.91
SQ010 3/8" 9.5 20.5 35 11 33 0.91
SQ013 1/2" 12.7 24 40 10 30 0.91
SQ016 5/8" 15.9 27 50 9 27 0.91
SQ019 3/4" 19 30 60 8.5 25.5 0.91
SQ022 7/8" 22 33 70 8 24 0.91
SQ025 1" 25.4 36 80 7.5 22.5 0.91
SQ032 1-1/4" 32 43 110 6.5 19.5 0.91
SQ038 1-1/2" 38 49 160 5.5 16.5 0.91
SQ045 1-3/4" 45 56 200 5 15 0.91
SQ050 2" 50.8 62 250 4.5 13.5 0.91
SQ063 2-1/2" 63.5 75 350 4 12 0.91
SQ076 3" 76.2 88 550 3 9 0.91
SQ089 3-1/2" 89 102 700 2.5 7.5 0.91
SQ102 4" 102 114 800 2 6 0.91

Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm

Packaging & Shipping

Polyester Reinforced 4m/roll 5/16 Id Food Safe Silicone Tubing OD19mm

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
