Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe
Specifications
Brand Name :
NL
Model Number :
TSO
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
50 Meter/Meters (Min. Order)
Price :
$15.00 - $120.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 -50 Est. Time(days) 3
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Material :
Silicone
Color :
Transparent
Size :
1/4"~4"
Length :
4m or 6m/roll
Thickness :
4.8mm~32mm
Temp. Range :
-60℃~200℃
Processing Service :
Moulding, Cutting
Description

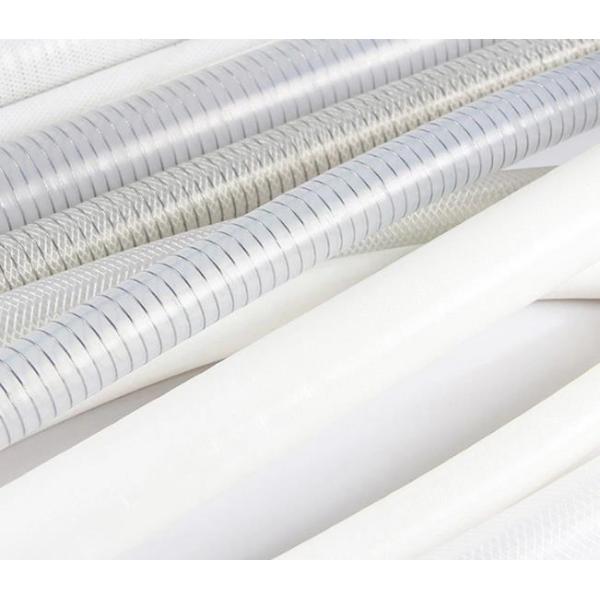

Transparent Stainless Steel Helix Reinforced Silicone Hose

Construction: Type TSO is manufactured from High purity platinum cured Silicone with stainless steel helix reinforcement.

Temp. Range: -60°C and 200°C. (+260°C on request)

Colour: Transparent

Applications:

Smooth inner and outer surface to resist material adhesion

Suitable for pressure and vacuum.

Suitable for CIP and SIP cleaning

Odourless, Tasteless, Non-Toxic

Certification: FDA, USP,BFR, USDA, ISO 10993

Length: Standard length is 4 or 6 meters.

** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Part no. ID OD Bending radius Work pressure Bursting pressure Vacuum
in. mm mm mm bar bar bar
TSO006 1/4" 6.4 16.4 33 11 33 0.91
TSO008 5/16" 7.9 17.9 35 10 30 0.91
TSO010 3/8" 9.5 19.5 40 9 27 0.91
TSO013 1/2" 12.7 22.7 50 8.5 25.5 0.91
TSO016 5/8" 15.9 25.9 60 8 24 0.91
TSO019 3/4" 19 29 70 7.5 22.5 0.91
TSO022 7/8" 22 32 75 6.5 19.5 0.91
TSO025 1" 25.4 35.4 85 5.5 16.5 0.91
TSO032 1-1/4" 32 42 110 5 15 0.91
TSO038 1-1/2" 38 48 160 4.5 13.5 0.91
TSO045 1-3/4" 45 57 200 4.5 13.5 0.91
TSO051 2" 50.8 60.8 250 3.5 10.5 0.91
TSO064 2-1/2" 63.5 73.5 350 2.5 7.5 0.91
TSO076 3" 76.2 86.2 550 2 6 0.91
TSO089 3-1/2" 89 99 700 1.7 5.1 0.91
TSO102 4" 102 112 800 1.5 4.5 0.91

Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe

Packaging & Shipping

Heat Resistant 6m/Roll OD112mm Transparent Silicone Tubing 4 Inch Food Grade Pipe

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
