Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum
Specifications
Brand Name :
NL
Model Number :
TSPO
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
50 Meter/Meters (Min. Order)
Price :
$25.00 - $130.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 -50 Est. Time(days) 7
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Material :
Silicone
Color :
White
Size :
3/16"~1-1/4"
Length :
6m or 10m/roll
Thickness :
4.8mm~32mm
Temp. Range :
-60℃~180℃
Processing Service :
Moulding, Cutting
Description

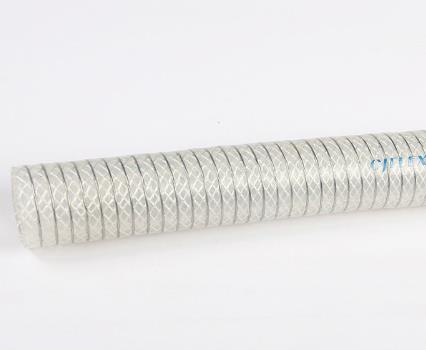

Transparent Stainless Steel Helix and Polyester Fiber Braid Reinforced Silicone Hose

Construction: Type TSPO is manufactured from High purity platinum cured Silicone with single stainless steel helix and polyester fiber reinforcement.
Temp. Range: -60°C and 180°C. (+260°C on request)
Colour: Transparent (Coloured covers available)
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard length is 6 or 10 meters.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Part no. ID OD Bending radius Work pressure Bursting pressure Vacuum
in. mm mm mm bar bar bar
TSPO005 3/16" 4.8 11 25 18 54 0.91
TSPO006 1/4" 6.4 13 38 17 51 0.91
TSPO008 5/16" 7.9 15 45 15 45 0.91
TSPO010 3/8" 9.5 17 57 14 42 0.91
TSPO013 1/2" 12.7 22 70 11 33 0.91
TSPO016 5/8" 15.9 25 80 10 30 0.91
TSPO019 3/4" 19 31 95 7 21 0.91
TSPO022 7/8" 22 34.5 145 6.5 19.5 0.91
TSPO025 1" 25.4 38 160 6 18 0.91
TSPO032 1-1/4" 32 46 200 5 15 0.91

Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum

Packaging & Shipping

Braided 10m/roll 5/16 id Food Safe Silicone Tubing For Pressure And Vacuum

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
