Specifications
Brand Name :
NL
Model Number :
SP
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
50 Meter/Meters (Min. Order)
Price :
$15.00 - $120.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 -50 Est. Time(days) 7
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Material :
Silicone
Color :
White
Size :
1/4"~4"
Length :
4m or 6m/roll
Thickness :
4.8mm~32mm
Temp. Range :
-60℃~200℃
Processing Service :
Moulding, Cutting
Description

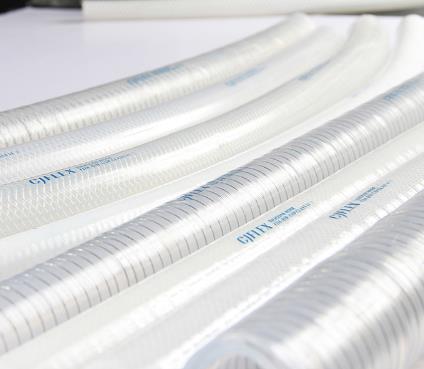

Four Layers Polyester Reinforced Silicone Hose

Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.

Temp. Range: -60℃ and 200℃. (+260℃ on request)

Colour: Translucent (Colored covers available)

Applications: For transporting liquids at medium pressure where a closed Bending radius is not required. It is not recommended for Vacuum. Suitable for CIP and SIP cleaning.

Certification: FDA, USP, BFR, USDA, ISO 10993

Length: Standard length is 4 or 6 meters

**PRESSURE DECREASE BY 1% FOR EVERY 1℃ ABOVE 100℃

Part no. ID OD Work pressure Bursting pressure
in. mm mm bar bar
SP006 1/4" 6.4 16.4 11.5 34.5
SP008 5/16" 7.9 18 10.5 31.5
SP010 3/8" 9.5 19.5 9.5 28.5
SP013 1/2" 12.7 22.7 8.5 25.5
SP016 5/8" 15.9 25.9 8 24
SP019 3/4" 19 29 7.5 22.5
SP022 7/8" 22 32 7 21
SP025 1" 25.4 35.4 6.5 19.5
SP032 1-1/4" 32 42 5.5 16.5
SP038 1-1/2" 38 48 5 15
SP045 1-3/4" 45 55 4.5 13.5
SP050 2" 50.8 60.8 4 12
SP063 2-1/2" 63.5 73.5 3.5 10.5
SP076 3" 76.2 86.2 2.5 7.5
SP089 3-1/2" 89 99 2 6
SP102 4" 102 112 1.7 5.1

OD25.9mm 5/8 id Food Safe Silicone Tubing Four Layers Polyester Reinforced

Packaging & Shipping

OD25.9mm 5/8 id Food Safe Silicone Tubing Four Layers Polyester Reinforced

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
