DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2 Hose Coupler With Fixed Flange
Specifications
Brand Name :
NL
Model Number :
PLDL
Certification :
Standard
Place of Origin :
China
MOQ :
20 Piece/Pieces (Min. Order)
Price :
$85.00 - $310.00 / Piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200 Piece/Pieces per Week
Delivery Time :
Quantity(Pieces) 1 - 20 Est. Time(days) 15
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Type :
Flange to Coupling
Pipe Size :
3/4" - 4"
Material :
SS304+PFA
Technics :
Forged and Casting
Connection :
Flange
Shape :
Equal
Head Code :
Round
Fitting Standard :
A-A-59326/DIN 2828
Remark :
Can be customized
Description

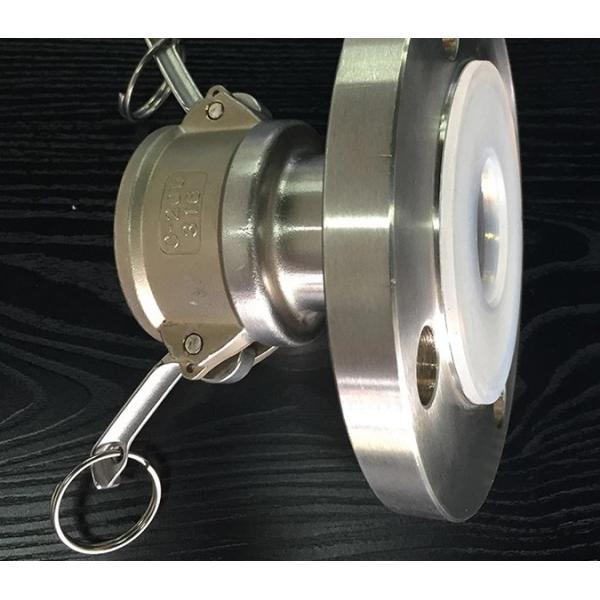

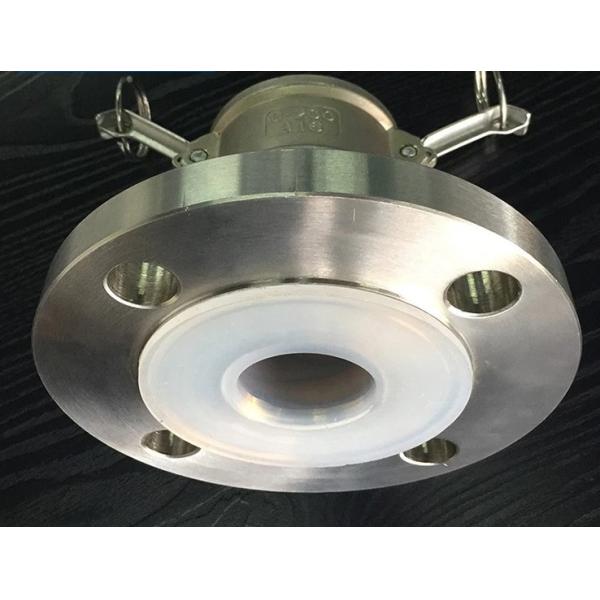

PFA lined coupler with fixed flange

Camlock standard: A-A-59326/DIN 2828

FEP or PTFE liners are available.

Virgin and anti-static liners are available.

Remark: Can be customized.

Part no. Fitting material Size Flange standard D±0.1 D2 min
mm mm
PLDL019S4 SS304+PFA 3/4" EN PN16 32.4 90.0
PLDL025S4 SS304+PFA 1" EN PN16 37.3 96.0
PLDL032S4 SS304+PFA 1-1/4" EN PN16 46.0 111.0
PLDL038S4 SS304+PFA 1-1/2" EN PN16 54.0 115.0
PLDL050S4 SS304+PFA 2" EN PN16 63.8 122.0
PLDL063S4 SS304+PFA 2-1/2" EN PN16 76.5 125.0
PLDL076S4 SS304+PFA 3" EN PN16 92.2 132.0
PLDL102S4 SS304+PFA 4" EN PN16 120.3 137.0

DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2

DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2

Packaging & Shipping

DIN 2828 PTFE Lined Pipe Fittings SS304 1-1/2

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
