2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available
Specifications
Brand Name :
NL
Model Number :
PLPL
Certification :
Standard
Place of Origin :
China
MOQ :
10 Piece/Pieces (Min. Order)
Price :
$259.00 - $1,099.00 / Piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200 Piece/Pieces per Week
Delivery Time :
Quantity(Pieces) 1 - 20 Est. Time(days) 15
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Type :
Flange
Pipe Size :
1"2"
Material :
SS304+PFA
Technics :
Forged
Connection :
Flange
Shape :
Equal
Head Code :
Round
Flange Standard :
EN PN16
Remark :
Can be customized
Description

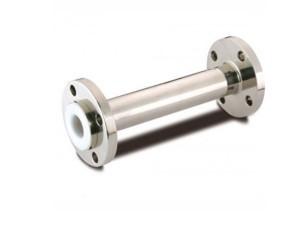

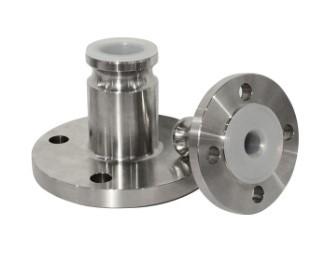

PFA lined pipe with flange

Flange standard: EN PN16.
FEP or PTFE liners are available.
Virgin and anti-static liners are available.

Remark: Can be customized.

Part no. Size Flange data Liner Thickness-H Length
DN Flange OD Diameter of Circleof Holes Hole Face
Diameter		 Flange
Thickness		 Tube Data FEP PFA L
mm inch D D1 z-φd D2 F b OD-d1 Thickness-d1 mm mm mm
PLPL025S4-EN16-X 25 1 115 85 4-14 65 2 16 33 3 3 3 100-2000
PLPL032S4-EN16-X 32 1-1/4 140 100 4-18 76 2 18 39 3 3 3
PLPL040S4-EN16-X 40 1-1/2 150 110 4-18 84 2 18 46 3 3 3
PLPL050S4-EN16-X 50 2 165 125 4-18 99 2 20 59 3.5 3 3 150-2000
PLPL065S4-EN16-X 65 2-1/2 185 145 4-18 118 2 20 78 4 3 3
PLPL080S4-EN16-X 80 3 200 160 8-18 132 2 20 91 4 3 3
PLPL100S4-EN16-X 100 4 220 180 8-18 156 2 22 110 4 3 3
PLPL125S4-EN16-X 125 5 250 210 8-18 184 2 22 135 4 4 4 200-2000
PLPL150S4-EN16-X 150 6 285 240 8-22 211 2 24 161 4.5 4 4
PLPL200S4-EN16-X 200 8 340 295 12-22 266 4.5 26 222 6 4.5 4.5
PLPL250S4-EN16-X 250 10 405 355 12-26 319 4.5 28 276 8 4.5 4.5
PLPL300S4-EN16-X 300 12 460 410 12-26 370 4.5 32 328 8 4.5 4.5

Packaging & Shipping

2 Inch SS304 EN PN16 Flange PFA Lined Pipe customized available

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
