Specifications
Brand Name :
NL
Model Number :
UCSD
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
61 Meter/Meters (Min. Order)
Price :
$9.90 - $49.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 - 61 Est. Time(days) 10
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Size :
3/4"~4"
Length :
61m/roll
Thickness :
6.5~10mm
Material :
UHMWPE
Temp. Range :
-40℃~+ 120℃
Processing Service :
Moulding, Cutting
Color :
Blue\Black
Description

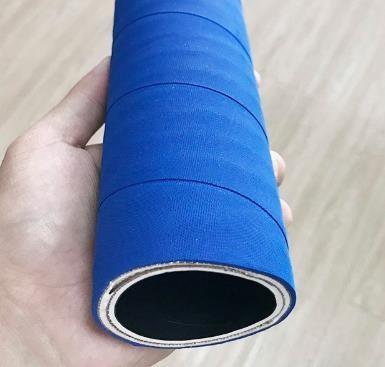

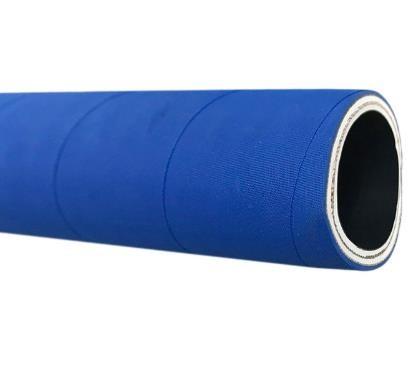

Anti-static chemical flexibility hose

Applications:
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.

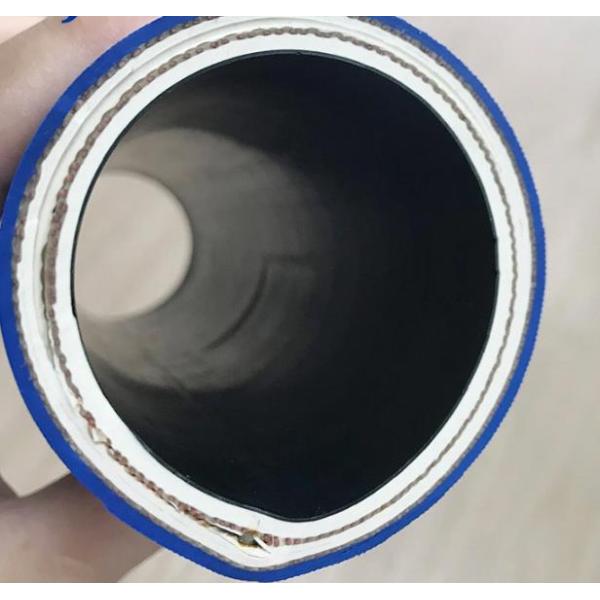

Construction:
Tube: Conductive black UHMWPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: High tensile textile cords with embedded steel helix wire, antistatic wire.
Cover:
Corrugated black or blue EPDM compound. - abrasion and ozone resistant
Temperature range: -40 °C
~+120 °C (-40 °F +248 °F)

Standard/Approval:
FDA 21 CFR 177.2600.

Part no. ID OD Bending radius Work pressure Length
inch mm mm mm psi bar m
UCSD019 3/4" 19.05 32.0 89 200 13.8 61
UCSD025 1" 25.4 37.3 100 200 13.8 61
UCSD032 1-1/4" 31.8 45.0 130 200 13.8 61
UCSD038 1-1/2" 38.1 52.0 154 200 13.8 61
UCSD051 2" 50.8 66.3 208 200 13.8 61
UCSD063 2-1/2" 63.5 76.1 252 200 13.8 61
UCSD076 3" 76.2 96.2 305 200 13.8 61
UCSD102 4" 101.6 120.6 407 200 13.8 61

Antistatic 61m/Roll UHMWPE Chemical Resistance Hose / Chemical Transfer Hose

Packaging & Shipping

Antistatic 61m/Roll UHMWPE Chemical Resistance Hose / Chemical Transfer Hose

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
