Specifications
Brand Name :
NL
Model Number :
FSC-B
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
100 Meter/Meters (Min. Order)
Price :
$4.80 - $42.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 - 61 Est. Time(days) 10
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Size :
3/8"~3"
Length :
40m, 60m and 100m/roll
Thickness :
3.75~9.0mm
Material :
NBR
Temp. Range :
-30°C~120°C
Processing Service :
Moulding, Cutting
Color :
Blue
Description

Food grade rubber hose

Applications:

For hot water washing in food processing plants. Also for transfer of hot liquid foodstuffs. ID 9.5 to 25.4mm, suitable for reel mounted applications.

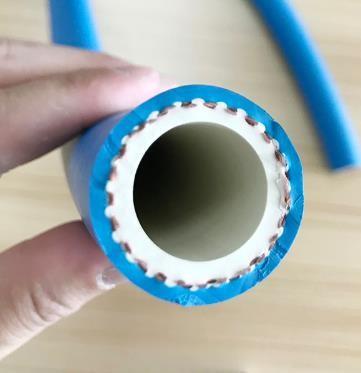

Construction:

Tube: White NBR, oil resistant, smooth.

Reinforcement: Synthetic textile.

Cover: Blue CSM, oil and weather resistant, smooth for ID 9.5 to 25.4 mm, fabric impression for ID 32 to 76mm.

Temperature range: –30°C~+120°C

Standard/Approval: FDA 21 CFR 177.2600.

Part no. ID OD Bending radius Work pressure Bursting pressure Length
inch mm mm mm bar bar m
FSC010 3/8" 9.5 17 55 20 60 100
FSC013 1/2" 12.7 22.0 65 20 60 100
FSC016 5/8" 15.9 25.0 85 20 60 60
FSC019 3/4" 19.0 30.0 100 20 60 60
FSC025 1" 25.4 37.0 125 20 60 60
FSC032 1-1/4" 32.0 44 250 10 40 40
FSC038 1-1/2" 38.0 51 300 10 40 40
FSC051 2" 50.8 66 400 10 40 40
FSC064 2-1/2" 63.5 80 500 10 40 40
FSC076 3" 76.0 94 600 10 40 40

Packaging & Shipping

NBR OD94mm Food Grade Suction Hose 3 inch Flexible Steam Hose

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
