19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll
Specifications
Brand Name :
NL
Model Number :
UASD
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
100 Meter/Meters (Min. Order)
Price :
$19.00 - $59.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 - 61 Est. Time(days) 10
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Size :
3/4"~6"
Length :
61m/roll
Thickness :
6.5~10mm
Material :
Conductive black UHMWPE
Temp. Range :
-40℃~+ 120℃
Processing Service :
Moulding, Cutting
Color :
Gray
Description

TYPE UASD

Conduction band UPE chemical hose

Applications:
hard wall hose suitable for a wide range of chemicals, petroleum product and oils, suitable for acid and chemicals in high concentration up to 98%.
Construction

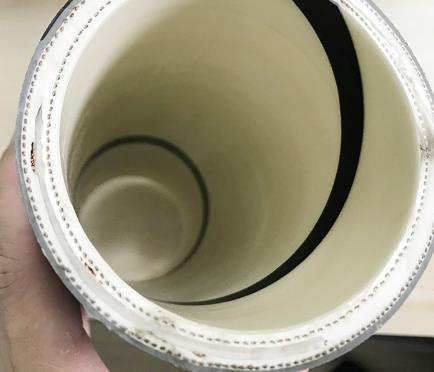

Inner tube: Transparent, UPE, smooth, conductive through a black UPE helix stripe (R<106Ω), food grade.

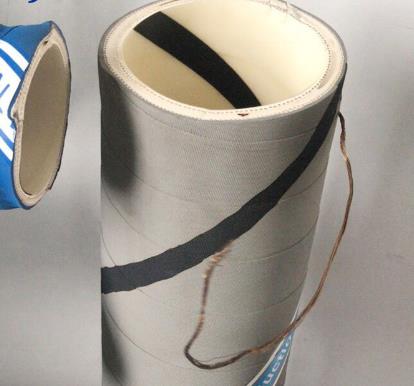

Reinforcement: Plies of high strength synthetic cord, embedded steel wire helix, copper wires.

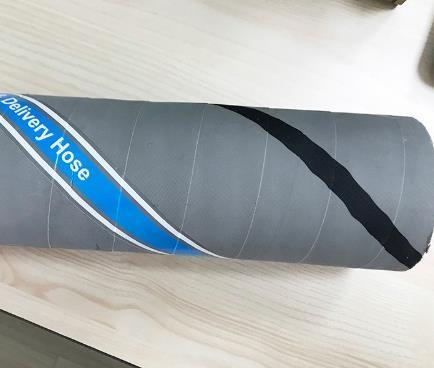

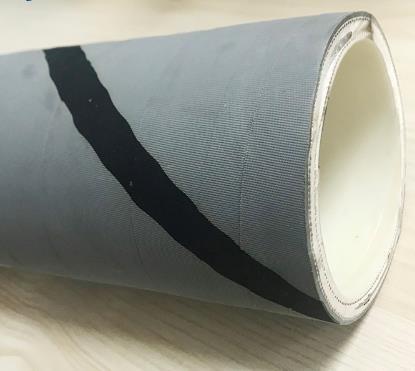

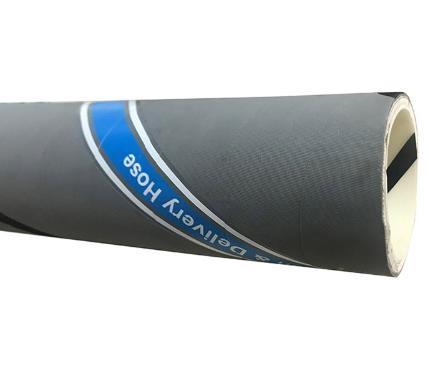

Cover: Gray EPDM rubber, smooth, conductive through a black helix stripe, abrasion, ozone and weather resistant, cloth finish (other color available upon request).
Temperature range: -40 °C~+100 °C

Standard/Approval: Meets FDA

Part no. ID OD Bending radius Work pressure Length
inch mm mm mm psi bar m
UASD019 3/4" 19.05 30 130 240 16 100
UASD025 1" 25.4 36 150 240 16 100
UASD032 1-1/4" 31.8 43 200 240 16 100
UASD038 1-1/2" 38.1 49 225 240 16 100
UASD051 2" 50.8 62 275 240 16 100
UASD063 2-1/2" 63.5 76 275 240 16 100
UASD076 3" 76.2 89 400 240 16 100
UASD102 4" 101.6 116 800 240 16 100
UASD127 5" 127 144 1300 240 16 100
UASD152 6" 152 171 1600 240 16 100

19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll

19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll

Packaging & Shipping

19.05mm Id Food Grade Suction Hose Acid Resistant Flexible Hose 61m/roll

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
