Specifications
Brand Name :
NL
Model Number :
TSS
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
50 Meter/Meters (Min. Order)
Price :
$3.70 - $26.70 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 -100 Est. Time(days) 15
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Material :
PTFE
Size :
1/8"~1"
Length :
20~200m/roll
Thickness :
0.75~1.05mm
Processing Service :
e: Cutting, Assembly
Temp. Range :
-70℃~ 260℃
Description

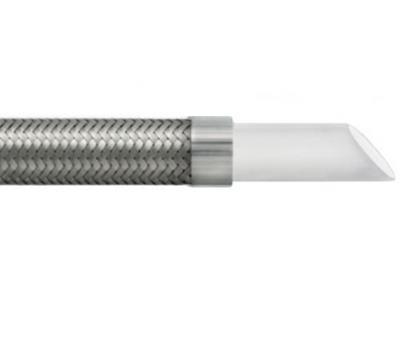

Stainless Steel Braid Cover Smooth PTFE Tube

Construction:

Type TSS is manufactured from smooth PTFE tube with stainless steel over braid.

Temp. Range: -70℃~260℃.

Applications:

For transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed Bending radius is not required. Not recommended for steam-cold water cycling.

Virgin and anti-static liners are available.

Certification: FDA.

We also can provide Type PSS (PFA tube).

Part no. ID OD Tube Wall thickness Bending
radius		 Work pressure Bursting pressure
in. mm mm mm mm bar bar
TSS003 1/8" 3.2 6.2 1.00 60 250 750
TSS005 3/16" 4.8 7.7 0.75 60 200 600
TSS006 1/4" 6.4 9.2 0.65 75 185 555
TSS008 5/16" 7.9 11.2 0.75 100 180 540
TSS010 3/8" 9.5 12.4 0.75 125 170 510
TSS013 1/2" 12.7 15.9 0.75 140 130 390
TSS016 5/8" 15.9 19.3 0.90 160 100 300
TSS019 3/4" 19 22.8 0.90 200 75 225
TSS022 7/8" 22 26.0 1.00 300 65 195
TSS025 1" 25.4 29.5 1.05 400 65 195

20~200m/roll 1.05mm Ptfe Stainless Steel Braided Hose For Transporting Corrosive Chemicals

Packaging & Shipping

20~200m/roll 1.05mm Ptfe Stainless Steel Braided Hose For Transporting Corrosive Chemicals

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
