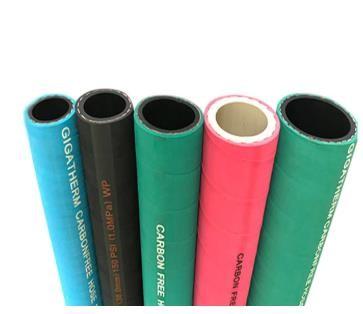

100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV
100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV
100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV
100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV
100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV
100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV
Specifications
Brand Name :
NL
Model Number :
JY10
Certification :
HG/T2184
Place of Origin :
Shanghai, China
MOQ :
200 Meter/Meters
Price :
$2.90 - $15.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 - 200 Est. Time(days) 10
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Temp. Range :
-40℃~+ 120℃
Material :
EPDM
Size :
1/2"~3"
Length :
100m/60/40 per roll
Description

Water cooling system hose - carbon free hose for voltage of 10 KV​

Applications:

It is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage of 10KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.

Construction:

Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.

Reinforcement: high strength polyester fiber.

Cover: white or green, pure carbon - free, high - insulation EPDM synthetic rubber. Smooth for ID≤1", fabric impression for ID>1”.

Electrical resistance: high insulation, excellent low leakage current. At 10KV DC/AC voltage, the leakage current is less than 20 Micro Amp.

Temperature range: -40 °C +120 °C

Environmental standards: EU pahs-2, REACH, ROHS directive.

Technical standard: HG/T2184

Part no. ID OD Bending radius Work pressure Bursting pressure Weight Length
inch mm mm mm PSI PSI kg/m m
JY10013 1/2" 12.7 22.0 100 300 1200 0.31 100
JY10016 5/8" 15.9 25.0 120 300 1200 0.35 60
JY10019 3/4" 19.0 29.0 150 300 1200 0.46 60
JY10022 7/8" 22.2 33.0 170 300 1200 0.58 60
JY10025 1" 25.4 38.0 200 300 1200 0.76 60
JY10032 1-1/4" 31.8 50.0 250 250 1000 1.1 40
JY10038 1-1/2" 38.1 56.0 300 250 1000 1.38 40
JY10042 42mm 42.0 60.0 336 250 1000 1.46 40
JY10045 45mm 44.5 62.5 360 250 1000 1.6 40
JY10050 2" 50.8 68.8 400 250 1000 1.9 40
JY10063 2-1/2" 63.5 81.5 500 200 800 2.5 40
JY10076 3" 76.2 94.2 600 150 600 3.2 40

100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV

Packaging & Shipping

100m/roll Epdm Water Hose / Epdm Coolant Hose For Voltage Of 10KV

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factories in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
