Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment
Specifications
Brand Name :
NL
Model Number :
PL
Certification :
ROHS, ISO19013, AS1869
Place of Origin :
Shanghai, China
MOQ :
100 Meter/Meters
Price :
$3.00 - $11.00 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 - 100 Est. Time(days) 7
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Temp. Range :
-30℃~+ 120℃
Material :
NBR
Size :
1/4"~1"
Length :
100/60
Description

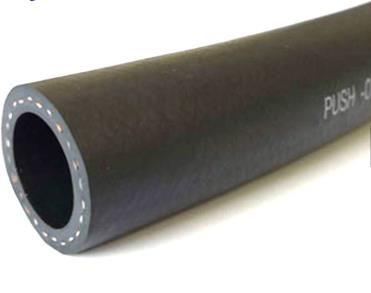

PUSH-ON HOSE

Applications:
The high-quality multi-purpose push-on hose is specially designed for manipulators and automation equipment, with flexibility, durability and high tensile strength. It is especially suitable for transporting gas, oils, air, water and emulsified liquid at rigorous occasions in the assembly line, mould, robot and T-grade welding. It is non-conducting and can withstand 6000V or above voltage.

Advantage:
The hose stands 5 million times of bending tests, is applicable to rolling-up of the spindle, in particular to occasions needing to be repeated bending or friction; It has excellent anti-UV property, can be used around the clock. By dedicated push-on connectors, it can be fastened without clamps.

Construction:
Tube: black RMA-A super oil-resistant and gas-tight NBR synthetic rubber;
Reinforcement: High-strength synthetic fiber braided layer;
Cover: Oil-resistant, wear-resistant and super anti-ageing CSM synthetic rubber (The color can be customized).
Temperature range:-30 °C +120 °C(Free clip fastening temperature -30 to 80 ℃)
Standard/Approval:ROHS, ISO19013, AS1869

Part no. ID OD Bending radius Work pressure Bursting pressure Weight Length
inch mm mm mm PSI PSI kg/m m
PL006 1/4" 6.4 12.6 50 300 1200 0.14 100
PL008 5/16" 7.9 14.5 60 300 1200 0.17 100
PL010 3/8" 9.5 16.5 70 300 1200 0.21 100
PL013 1/2" 12.7 20.5 120 300 1200 0.31 100
PL016 5/8" 15.9 24 150 300 1200 0.38 60
PL019 3/4" 19 28 170 300 1200 0.5 60
PL025 1" 25.4 35.6 200 300 1200 0.73

Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment

Packaging & Shipping

Multi Purpose ID6.4mm Push On Hose For Manipulators And Automation Equipment

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factories in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
