100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4 Pvc Braided Hose Pipe
Specifications
Brand Name :
NL
Model Number :
FVSD
Certification :
FDA
Place of Origin :
Shanghai, China
MOQ :
1000 Meter/Meters (Min. Order)
Price :
$2.80 - $15.80 / Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Meter/Meters per Week
Delivery Time :
Quantity(Meters) 1 - 1000 Est. Time(days) 10
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time.
Size :
1/4"~4"
Length :
30m, 40m, 50m and 100m/roll
Thickness :
2.0~4.5mm
Material :
PVC
Temp. Range :
-10°C~60°C
Processing Service :
Moulding, Cutting
Description

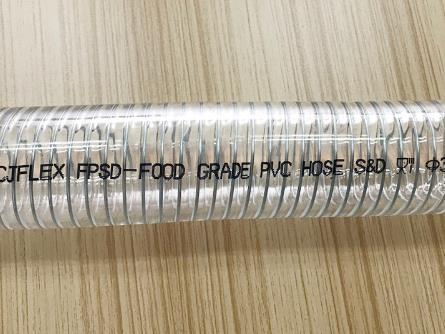

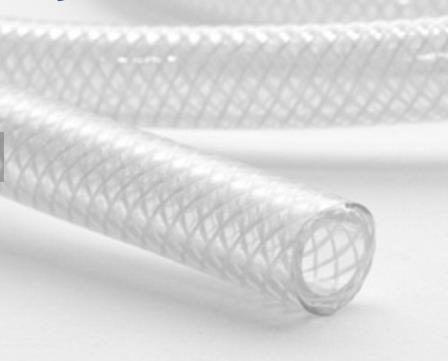

FOOD GRADE PVC FIBER HOSE

APPLICATIONS: ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration. It is often used for filling machines and dispensers.

Features: flexible hose reinforced with high tenacity polyester.

Resistant to several chemicals and to weather conditions.

Colour: transparent with polyester reinforcement

Temperature range: -10°C + 60°C

Standards: FDA, EU, REACH

Part no. ID OD Work pressure Bursting pressure Weight Length
inch mm mm bar bar kg/m m
FVD006 1/4" 6 10 10 40 0.07 100
FVD008 5/16" 8 12 10 40 0.08 100
FVD010 3/8" 10 14 9 35 0.10 100
FVD012016 1/2" 12 16 7 20 0.12 50
FVD012017 1/2" 12 17 8 24 0.15 50
FVD013 1/2" 13 17 7 20 0.13 50
FVD015 5/8" 15 19 6 20 0.14 50
FVD016020 5/8" 16 20 6 20 0.15 50
FVD016021 5/8" 16 21 7 21 0.19 50
FVD019023 3/4" 19 23 4 12 0.17 50
FVD019024 3/4" 19 24 4 12 0.22 50
FVD020 3/4" 20 24 4 12 0.18 50
FVD022 7/8" 22 27 4 12 0.25 50
FVD025029 1" 25 29 3 9 0.22 50
FVD025030 1" 25 30 4 12 0.28 50
FVD032 1-1/4" 32 38 3 10 0.43 40
FVD038 1-1/2" 38 45 3 10 0.59 40
FVD045 1-3/4" 45 55 3 10 1.02 30
FVD050 2" 50 59 3 10 1.01 30

Packaging & Shipping

100m/Roll 4.5mm Thick Pvc Fiber Reinforced Hose 1/4

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union

Product tags

pvc braided hose pipe

,

braided pvc hose

,

pvc nylon braided hose pipe
