Specifications
Brand Name :
Kaiheng Wire Mesh
Model Number :
kh129
Certification :
ISO9001
Place of Origin :
Anping Hengshui Hebei China
MOQ :
negotiation
Price :
real-time quotes
Payment Terms :
T/T, D/A, Western Union, L/C, MoneyGram
Supply Ability :
300㎡ per day
Delivery Time :
negotiation
Packaging Details :
Standard Sea Shipping Package
product name :
G605/40/80FG heavy steel grid
material :
q235 q135 etc. or as your required
grid color :
silver,self color,
specification :
as required
performance :
beautiful , light structure，corrosion resistant, durable
surface :
hot dip galvanizing, or untreatment,or painted
origin :
Anping,Hebei，China
packing :
Steel Pallet,Wooden Pallet Or As The Customar require
standard :
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
Description

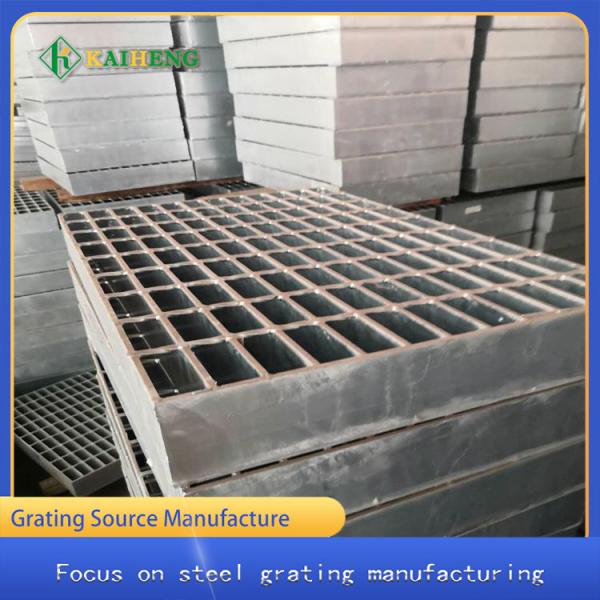

G605/40/80FG heavy steel grating for industry usage Q235 galvanizing

Introduction of heavy steel grating plate


The heavy steel grating plate is pressure welded with the cross bar by using the load flat steel with large thickness and width. The purpose of producing this heavy and large-size grating plate is mainly to carry large vehicles and machinery, large equipment or higher demand fields. This is not supported by ordinary grid plate.


Property sheet of heavy steel grating

name

heavy steel grating plate
color silver white,or self color
material carbon steel,zinc
surface hot dip galvanizing
bearing bar pitch(mm) 40
cross bar pitch(mm) 80
bearing bar 60*5
standard ISO9001-2015
transport shippinig

G605/40/80FG Q235 Galvanizing safety Heavy Duty Steel Grate For Industry
Performance of heavy steel grating


Heavy steel grating can bear tens or even hundreds of tons per square meter. In addition to its outstanding high load performance, it also has the characteristics of conventional grid plate. For example, the structure of grid hole can be free from cleaning and maintenance, and the heavy steel grating with galvanized treatment can be corrosion-resistant, oxidation-resistant, beautiful and simple. Heavy steel grating is mainly used for platform, which is easy to lay.

G605/40/80FG Q235 Galvanizing safety Heavy Duty Steel Grate For Industry
Application scenario of heavy steel grid plate


Hot dip galvanized heavy-duty steel grating plate is used in occasions with high load requirements, such as large vehicles, large equipment, airports, power plants, power stations, sewage plants, highways, industrial platforms, ports and wharfs and other occasions with special needs.

G605/40/80FG Q235 Galvanizing safety Heavy Duty Steel Grate For Industry
Customization of heavy steel grating plate


The heavy-duty steel grating can be customized according to your load-bearing requirements. If there is the best design scheme and drawing, Kaiheng can provide different types of heavy-duty steel grating products according to your load requirements. Demand receiving mailbox: info@cnkaiheng.com

G605/40/80FG Q235 Galvanizing safety Heavy Duty Steel Grate For Industry
