T2 Welded Fixing Without Nosing Stair Tread For Steel Ladder 60mm Bearing Bars Pitch

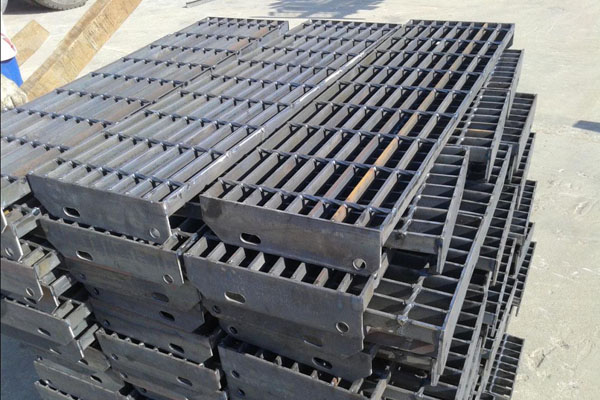

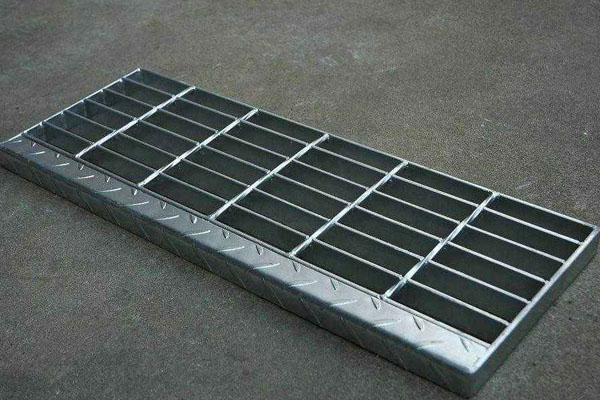

Brief introduction of galvanized steel grating step plate with spacing of 60mm for T2 flat steel

The steel grating with the spacing of 60mm flat steel of T2 model is a step plate fixed with bolts, and there is no front guard plate, because there are design bolt holes. The flat steel specification used for the side plate of this type of step plate is 65mm * 5mm, which is mostly used for the layer by layer connection of the steel structure platform built in the factory, with good anti-skid and bearing capacity.

Attribute table of tread plate with 60 mm flat steel spacing of T2 type

Performance of T2 60mm flat steel spacing steel ladder step plate

The tread plate designed by flat steel with a spacing of 60mm has good bearing performance, and the grid plate itself has impact resistance, which is suitable for the vibration scene of the plant. After galvanized surface treatment, its corrosion resistance is very good, which is also the reason why the refinery and chemical plant require the use of hot-dip galvanized grid tread plate, which has a long service life. The steel ladder steps of steel structure are mostly in outdoor scenes. This kind of step board will not accumulate rain and snow and is maintenance free.

Use error and installation method of T2 60mm flat steel spacing steel ladder step plate

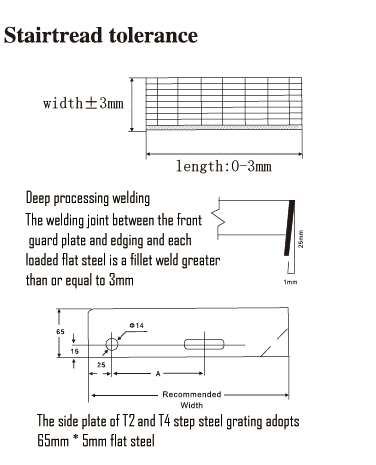

The width error range of tread plate is: - 3mm to 3mm, and the length error range is 0-3mm; The welding joint between the front guard plate and the edging and each loaded flat steel is a fillet weld greater than or equal to 3mm.

The installation method is bolt fixation, which has the advantage of not damaging the zinc layer and convenient installation and disassembly.
If you need to customize the manufacturing of tread plates of other specifications and models, you can send the requirements to us. The customized tread plates can be made of steel grating of any model, and the size can be non-standard.
