Silver White Metal Stair Covers Stair Steel Grate Steps Grid Plate T4
Silver White Metal Stair Covers Stair Steel Grate Steps Grid Plate T4
Silver White Metal Stair Covers Stair Steel Grate Steps Grid Plate T4
Silver White Metal Stair Covers Stair Steel Grate Steps Grid Plate T4
Silver White Metal Stair Covers Stair Steel Grate Steps Grid Plate T4
Silver White Metal Stair Covers Stair Steel Grate Steps Grid Plate T4
Specifications
Brand Name :
Kaiheng Wire Mesh
Model Number :
kh018
Certification :
ISO 9001:2015
Place of Origin :
Anping,Hebei,China
MOQ :
negotiation
Price :
real-time quotes
Payment Terms :
Western Union, MoneyGram, T/T, D/A, L/C
Supply Ability :
2000㎡ per day
Delivery Time :
negotiation
Packaging Details :
Galvanized iron sheet binding & Wooden Pallet/Steel Pallet Or As required
name :
Steel ladder step grating plate
performance :
Bearing capacity and corrosion resistance
color :
silver
installation :
Bolt fixing
surface :
hot galvanized
material :
steel Q235 or as required
Description

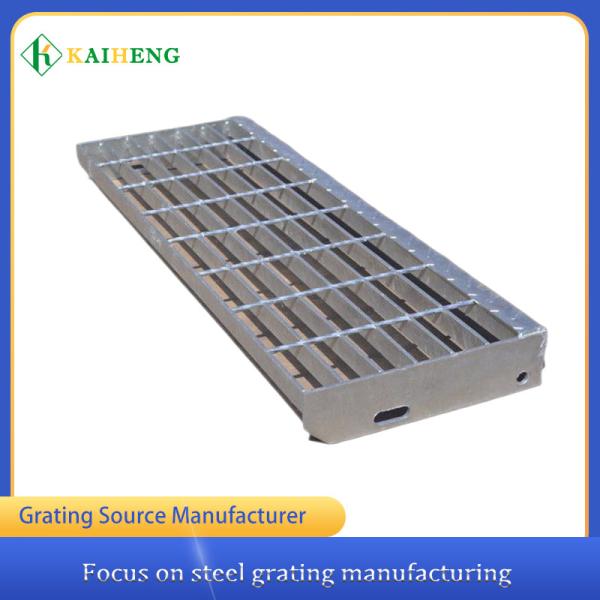

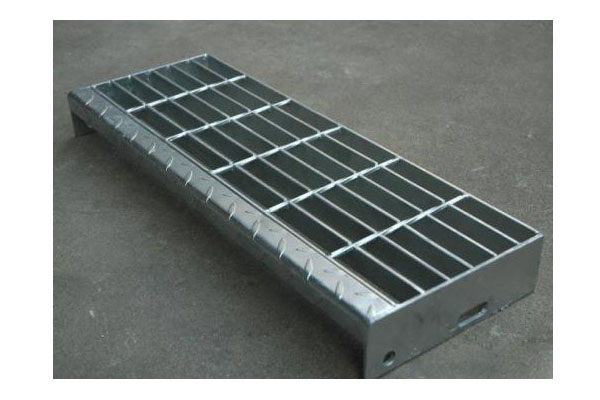

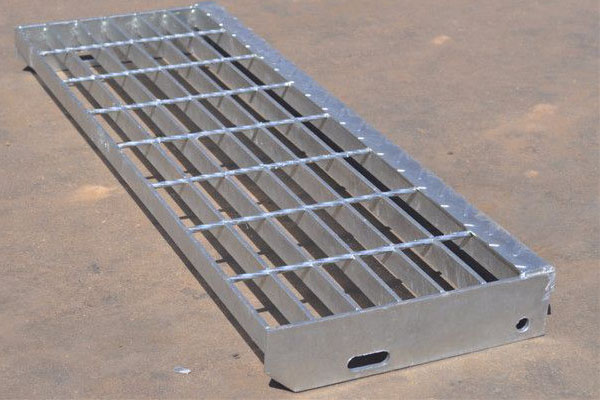

T4 Type Stair Step Plate Silver White Load-Bearing Grid Plate

The front step guard plate with T4 pattern is a kind of steel guard plate with T4 pattern. Q235 steel (supporting customization) is adopted for the step plate of steel ladder. The outer surface is hot-dip galvanized, and the width is usually between 0.5-1.0m.
It is not easy to rust. As the step board of steel ladder, the selection of steel grating has the advantages of not easy to accumulate dust and no cleaning. It is easy to install, ventilated, daylighting and heat dissipation, and anti-skid.
It is widely used in power plants, water plants and other factories, as well as platforms, walkways, cinemas, visiting platforms, parking lots and other large places in the fields of municipal engineering and environmental sanitation engineering.

Stairtread grating data type

Recommended Width(mm):

T1-T6 125 155 185 215 245 275 305
bearing bars pitch 30 30 30 30 30 30 30
T1-T2 T5-T6 125 165 -- 205 245 285 325
bearing bars pitch 40 40 40 40 40 40
T3-T4 115 155 -- 195 235 275 315
bearing bars pitch 40 40 40 40 40 40
T1-T2 T5-T6 -- -- 185 -- 245 -- 305
bearing bars pitch 60 60 60
T3-T4 -- 155 -- 215 -- 275 --
bearing bars pitch 60 60 60
Center distance of bolt hole 45 75 75 100 100 150 150


The corresponding relationship between the recommended size of the maximum length (mm) and the specification of flat steel is as follows:

bearing Specifications 25*3 25*5 32*5 40*5
bearing bars at 30mm pitch 550 900 1300 1600
bearing bars at 40mm pitch 450 750 1200 1500
bearing bars at 60mm pitch --- 550 850 1350

If you have some other questions for T4 type stair tread,you can contact with Kaiheng .

the steel ladder step grid plate T4 is mainly used below

Steel ladder treads are mainly used in environmental sanitation projects, municipal projects, power plants, sewage plants and cinemas.

How is the steel ladder step tread's surface?

In order to achieve the corrosion resistance of the steel ladder outdoors and not afraid of rain, the steel grating is usually hot-dip galvanized.The quality and requirements after galvanizing meet the provisions of GB / t13912.
