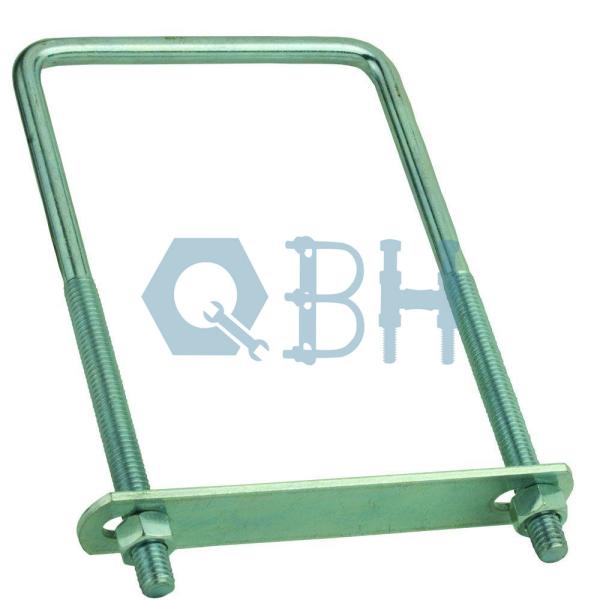

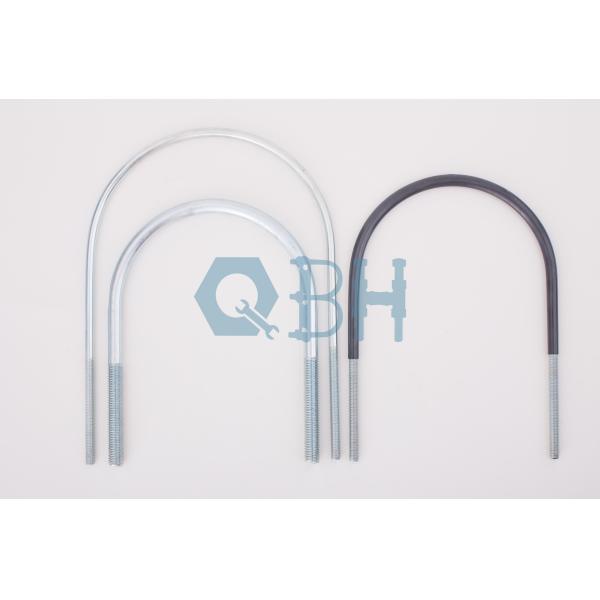

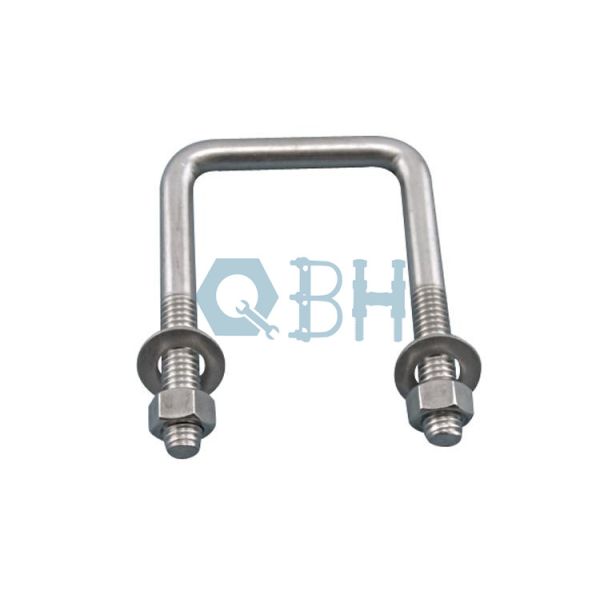

Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Carbon Steel M36 10.9 Stainless Steel Square Bend U Bolts
Specifications
Brand Name :
QBH
Model Number :
M8-M36
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
500kg
Price :
Negotiation
Payment Terms :
L/C, T/T,OA
Supply Ability :
500TON/MONTH
Delivery Time :
15DAYS
Packaging Details :
25kg Carton+900kg/Pallet or 5KG/CTN
Material :
Carbon steel,stainless steel 304 316
Size :
M6-M36
Product name :
FULL SIZE BODY U BOLTS
Grade :
4.8 6.8 8.8 10.9 12.9
Sample :
Provided,Free,Available free within 7days
Service :
One Stop Shopping,Customized OEM,OEM and ODM
Application :
shipping company
Package :
Cartons&pallets or according to customer's requirement,PP bag/paper packing,Small Packing+Carton Packing+Pallet
Process :
CNC milling/turning and automatic lathe
Length :
all kinds of length
Description

Specification

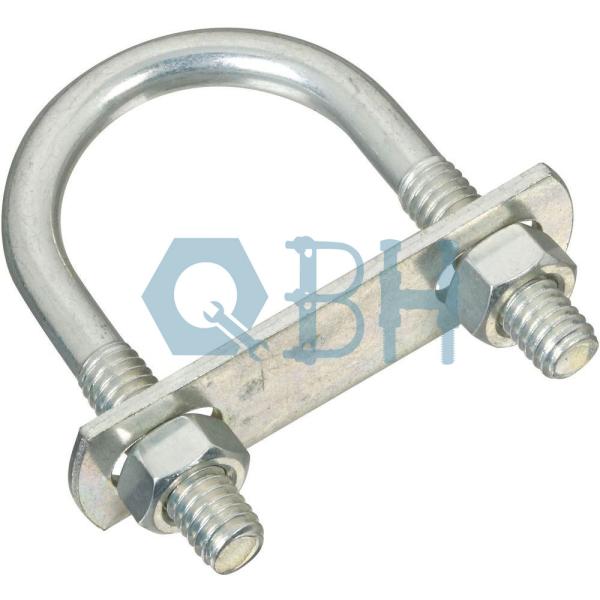

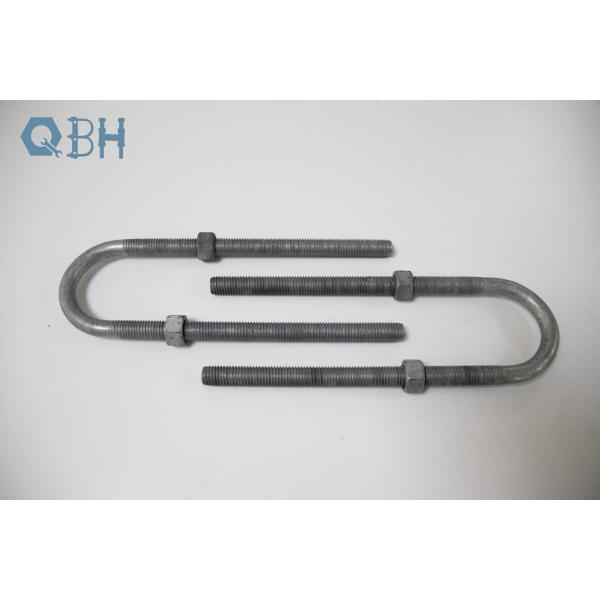

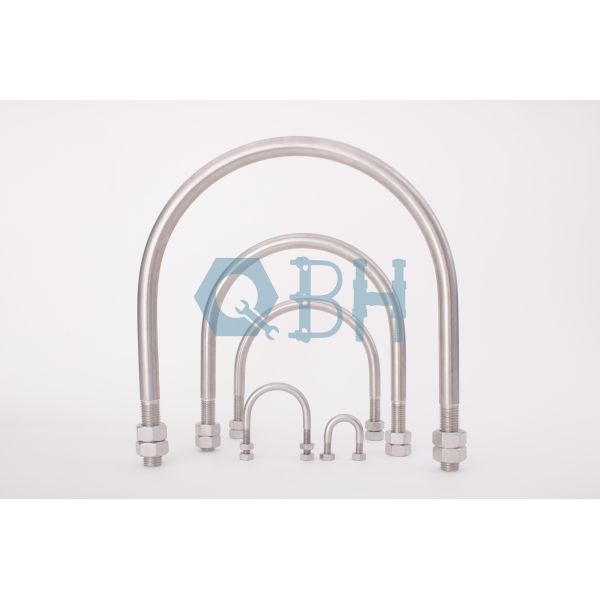

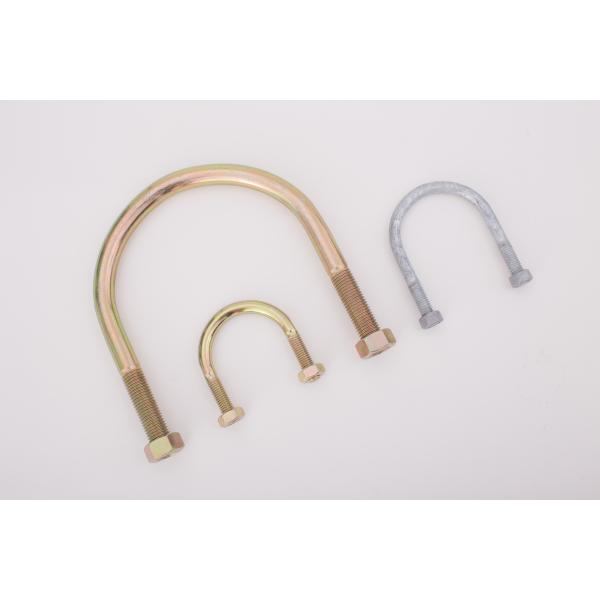

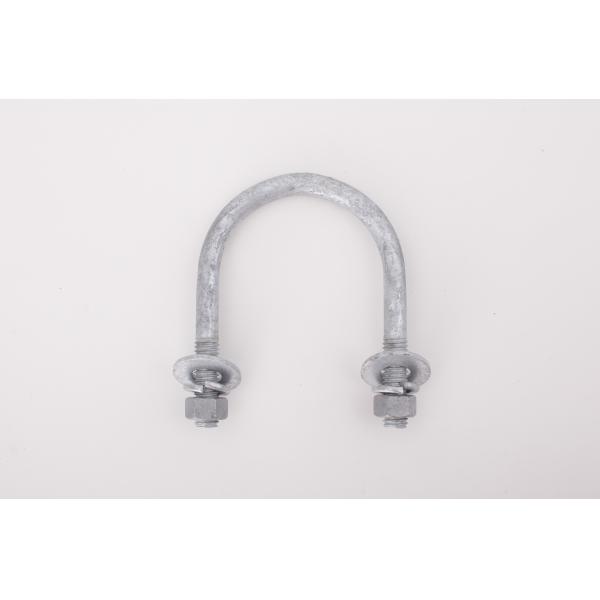

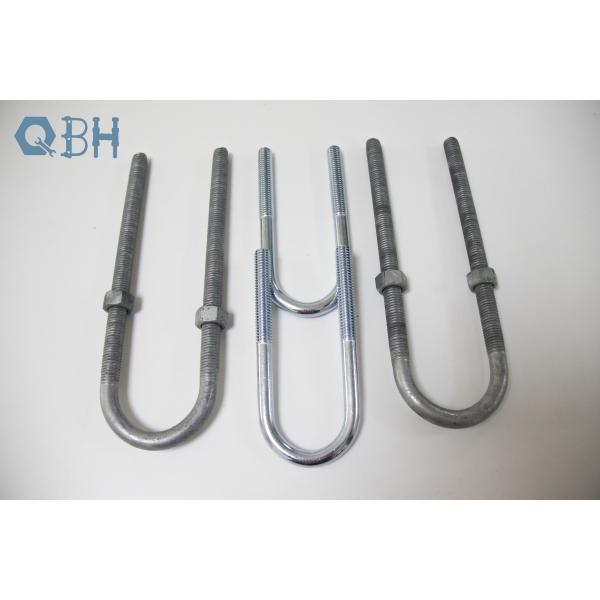

Stronger than routing clamps and hangers, U-bolts support

heavy pipe, tube, and conduit from ceilings, walls, and poles.

Black-oxide steel U-bolts have mild corrosion resistance. Zinc-

plated steel U-

bolts have good corrosion resistance in most environments. Galvanized steel

U-bolts have better corrosion resistance than black-oxide and zinc-plated

steel

U-bolts. Aluminum U-bolts are lighter weight and more corrosion resistant

than

steel U-bolts, but aren't as strong. 304 stainless steel U-bolts have excellent

corrosion resistance and good chemical resistance. 316 stainless steel U-

bolts have excellent corrosion and chemical resistance.

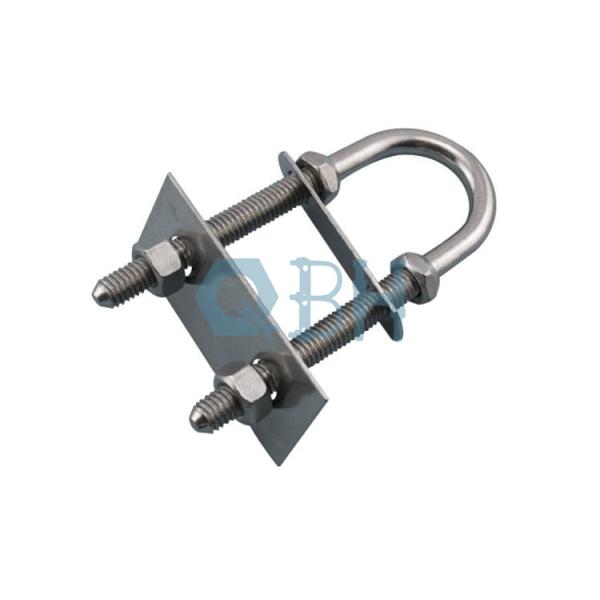

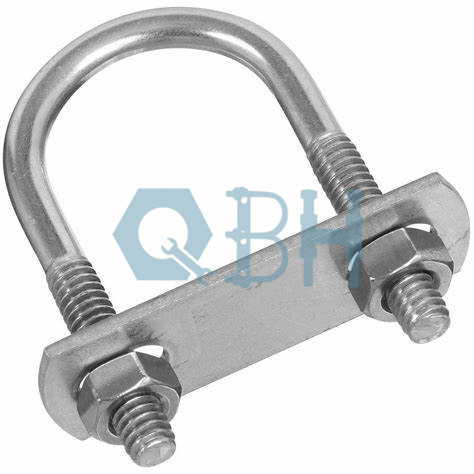

U-bolts with four nuts allow you to secure the U-bolt from the top and

the bottom.

Process flow

Cutting material ➨ shrink diameter ➨thread rolling ➨ bending ➨ make heat treatment(if need) ➨ Finish ➨ Packing

Materials and Chemical compstition

1008

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu Al
0.06 0.06 0.33 0.013 0.003 0.01 0 0.01 0.028

1035

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.34 0.13 0.73 0.012 0.002 0.02 0.01 0.02

10B21

CHEMICAL COMPOSI %
C Si Mn P S Cr B
0.2 0.04 0.81 0.017 0.007 0.017 0.0021

1045

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.45 0.23 0.58 0.014 0.006 0.057 0.008 0.016


stainless steel

　 化学成分CHEMICAL COMPOSI(% )
Type C碳 Si硅 Mn锰 P磷 S硫 Ni镍 Cr铬 Mo钼 Cu铜 Others
≤ ≤ ≤ ≤ ≤ ≥ ≥ ≥ ≈ 　
201Cu 0.08 1.00 7.5-10 0.06 0.03 4.00-6.00 14.0-17.0 　 2.0-3.0 　
201 0.15 1.00 8.50 0.06 0.03 3.50-5.50 16.0-18.0 　 　 N≤0.25
130M/202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0 　 　 N≤0.25
202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0 　 　 　
301 0.15 1.00 2.00 0.045 0.03 5.00-8.00 16.0-18.0 　 　 　
302 0.15 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0 　 　 　
XM7
(302HQ)		 0.08 1.00 2.00 0.045 0.03 8.50-10.5 17.0-9.00 　 3.0-4.0 　
303 0.15 1.00 2.00 0.20 ≥0.15 8.00-10.0 17.0-19.0 ≤0.60 　 　
303Cu 0.15 1.00 3.00 0.20 ≥0.15 8.0-10.0 17.0-19.0 ≤0.60 1.5-3.5 　
304 0.08 1.00 2.00 0.045 0.03 8.00-10.0 18.0-20.0 　 　 　
304H 0.08 1.00 2.00 0.045 0.03 8.0-10.0 18.0-20.0 　 　 　
304HC 0.08 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0 　 2.0-3.0 　
304HCM 0.08 1.00 2.00 0.045 0.03 8.0-10.0 17.0-19.0 　 2.5-4.0 　
304L 0.03 1.00 2.00 0.045 0.03 9.0-13.0 18.0-20.0 　 　 　
304M 0.06 1.00 2.00 0.045 0.03 8.50-10.0 18.0-20.0 　 　 　
305 0.12 1.00 2.00 0.045 0.03 10.5-13.0 17.0-19.0 　 　 　
305J1 0.08 1.00 2.00 0.045 0.03 11.0-13.5 16.5-19.0 　 　 　
309S 0.08 1.00 2.00 0.045 0.03 12.0-15.0 22.0-14.0 　 　 　
310S 0.08 1.50 2.00 0.045 0.03 19.0-22.0 24.0-26.0 　 　 　
314 0.25 15.-3.0 2.00 0.040 0.03 19.0--22.0 24.0-26.0 　 　 　
316 0.08 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 　 　
316Cu 0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 2.0-3.0 　
316L
(12Ni)		 0.03 1.00 2.00 0.045 0.03 12.0-15.0 16.0-18.0 2.0-3.0 　 　
316L
(10Ni)		 0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 　 　
321 0.08 1.00 2.00 0.045 0.03 9.00-13.0 17.0-19.0 　 Ti≤5*C%
410 0.15 　 1.00 　 0.03 　 11.5-13.5 　 　 　
416 0.15 　 1.25 　 ≥0.15 　 12.0-14.0 　 　 　
420 0.26-0.4 　 1.00 　 0.03 　 12.0-14.0 　 　 　
410L 0.30 1.00 1.00 0.040 0.03 　 11.5-13.5 　 　 　
430 0.12 0.75 1.00 0.040 0.03 　 16.0-18.0 　 　 　
430F 0.12 1.00 1.25 0.060 0.15 　 16.0-18.0 　 　 　
631(J1) 0.09 1.00 1.00 0.040 0.03 6.50-8.50 16.0-18.0 　 　 AL 0.75-1.5
2520 0.08 1.00 2.00 0.035 0.03 19.0-22.0 24.0-26.0 　 　 　
410 0.015 1.00 1.00 0.04 0.03 　 11.5-13.5 　 　 　

PACKING

QBH BULK

20-25KG/CTN,36CTNS/PALLET

20-30KG/BAGS,36BAGS/PALLET

ONE TON/BOXES

50KG/ IRON DRUM,12 IRON DRUMS/PALLET

QBH SMALL PACKING

Packing in small boxes according to customer’s requirements

Packing in plastic bag according to customer’s requirements

QBH PALLET TYPE

SOLID WOOD FUMIGATION PALLET

EURO Pallet

THREE SPLINT PALLET

WOODEN BOX

The advantages of QBH

  • QBH brand sales to the main quality assurance.
  • Years of export trade management, excellent service, word-of-mouth guarantee.
  • By working with TUV,escort for quality.
  • Customization of non-standard parts can be made according to customer's requirements and drawings.
  • For quality customers,we can provide a certain credit period.
