Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt
Specifications
Brand Name :
QBH
Model Number :
1/4--3/4
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
900kg
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500TON/MONTH
Delivery Time :
30DAYS
Packaging Details :
25KG/CTN,36CTN/PALLET or small packing
Standard :
ANSI B18.2.1
Material :
Carbon Steel and stainless steel
Size :
1/4 to 3/4 all kind of length
Finish :
ZP YZP HDG BLACK
Grade :
2,5,8
Packing :
Carton and pallet or according to the customer's requirement
Sample :
Free Sample
Thread :
Mushroom head square neck
Lead time :
Per on order quantity
Type :
Hexagon Head
Advantage :
we can manufacture according to client design,OEM / ODM / customized service provided
Oem :
yes,welcome
Description

Carbon Steel B18.2.1 304 GR2 304 Flanged Hex Head Bolt

Specification

Hex head flange bolts are used on vehicle frames, especially truck frames, and anywhere a hex washer head bolt is needed. The large bearing surface distributes clamping force over a large area, allowing them to be used with irregular and oversized holes. Hex head flange bolts are often used with Grade G Flange Style Lock Nuts to create a bolt/nut system that resists loosening and spans a wide area.

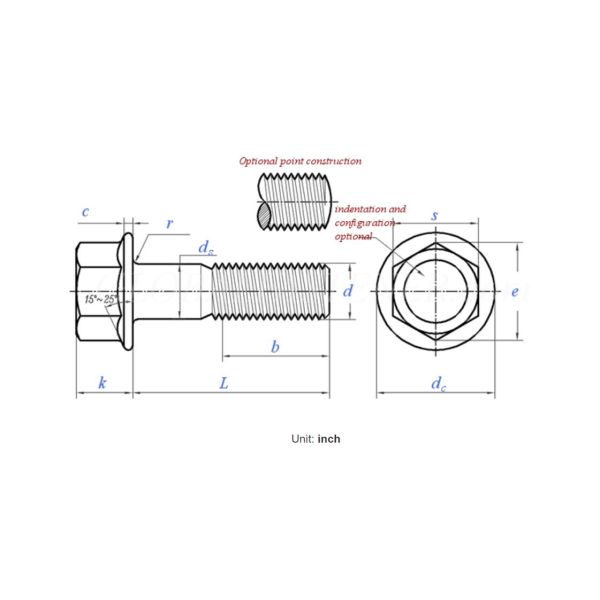

Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt

Thread Size
d
1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4
PP UNC
UNF
ds max
min
s max
min
e min
min
dc max
c min
k max
b L≤6
L＞6
r max
min
20 18 16 14 13 12 11 10
28 24 24 20 20 18 18 16
0.25 0.3125 0.375 0.4375 0.5 0.5625 0.625 0.75
0.245 0.3065 0.369 0.4305 0.493 0.5545 0.617 0.741
0.375 0.5 0.5625 0.625 0.75 0.8125 0.9375 1.125
0.367 0.489 0.551 0.612 0.736 0.798 0.922 1.1
0.433 0.577 0.65 0.722 0.866 0.938 1.083 1.299
0.409 0.548 0.618 0.685 0.825 0.895 1.034 1.234
0.56 0.68 0.81 0.93 1.07 1.19 1.33 1.59
0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11
0.28 0.32 0.39 0.46 0.51 0.57 0.62 0.73
0.75 0.875 1 1.125 1.25 1.375 1.5 1.75
1 1.125 1.25 1.375 1.5 1.625 1.75 2
0.025 0.025 0.025 0.025 0.025 0.045 0.045 0.045
0.015 0.015 0.015 0.015 0.015 0.02 0.02 0.02

Process flow

Cold forging

Annealing treatment(if need) ➨ wiredrawing ➨ clod forging ➨ thread rolling ➨make heat treatment(if need) ➨ Finish ➨ Packing

Hot forging

Cutting material ➨ hot forging ➨ turning ➨ shrink diameter(half thread) ➨thread rolling ➨ make heat treatment(if need) ➨ Finish ➨ Packing

Product Grade


Carbon Steel B18.2.1 GR2 Flanged Hex Head Bolt

Materials and Chemical compstition

1008

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu Al
0.06 0.06 0.33 0.013 0.003 0.01 0 0.01 0.028

1035

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.34 0.13 0.73 0.012 0.002 0.02 0.01 0.02

10B21

CHEMICAL COMPOSI %
C Si Mn P S Cr B
0.2 0.04 0.81 0.017 0.007 0.017 0.0021

1045

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.45 0.23 0.58 0.014 0.006 0.057 0.008 0.016

40CR

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.4 0.21 0.54 0.015 0.008 0.95 0.02 0.02

35CRMO

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu Mo
0.35 0.22 0.59 0.01 0.003 0.93 0.01 0.01 0.21

42CRMO

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu Mo
0.42 0.27 0.92 0.013 0.004 1.01 0.03 0.04 0.2

stainless steel

　 化学成分CHEMICAL COMPOSI(% )
Type C碳 Si硅 Mn锰 P磷 S硫 Ni镍 Cr铬 Mo钼 Cu铜 Others
≤ ≤ ≤ ≤ ≤ ≥ ≥ ≥ ≈ 　
201Cu 0.08 1.00 7.5-10 0.06 0.03 4.00-6.00 14.0-17.0 　 2.0-3.0 　
201 0.15 1.00 8.50 0.06 0.03 3.50-5.50 16.0-18.0 　 　 N≤0.25
130M/202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0 　 　 N≤0.25
202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0 　 　 　
301 0.15 1.00 2.00 0.045 0.03 5.00-8.00 16.0-18.0 　 　 　
302 0.15 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0 　 　 　
XM7
(302HQ)		 0.08 1.00 2.00 0.045 0.03 8.50-10.5 17.0-9.00 　 3.0-4.0 　
303 0.15 1.00 2.00 0.20 ≥0.15 8.00-10.0 17.0-19.0 ≤0.60 　 　
303Cu 0.15 1.00 3.00 0.20 ≥0.15 8.0-10.0 17.0-19.0 ≤0.60 1.5-3.5 　
304 0.08 1.00 2.00 0.045 0.03 8.00-10.0 18.0-20.0 　 　 　
304H 0.08 1.00 2.00 0.045 0.03 8.0-10.0 18.0-20.0 　 　 　
304HC 0.08 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0 　 2.0-3.0 　
304HCM 0.08 1.00 2.00 0.045 0.03 8.0-10.0 17.0-19.0 　 2.5-4.0 　
304L 0.03 1.00 2.00 0.045 0.03 9.0-13.0 18.0-20.0 　 　 　
304M 0.06 1.00 2.00 0.045 0.03 8.50-10.0 18.0-20.0 　 　 　
305 0.12 1.00 2.00 0.045 0.03 10.5-13.0 17.0-19.0 　 　 　
305J1 0.08 1.00 2.00 0.045 0.03 11.0-13.5 16.5-19.0 　 　 　
309S 0.08 1.00 2.00 0.045 0.03 12.0-15.0 22.0-14.0 　 　 　
310S 0.08 1.50 2.00 0.045 0.03 19.0-22.0 24.0-26.0 　 　 　
314 0.25 15.-3.0 2.00 0.040 0.03 19.0--22.0 24.0-26.0 　 　 　
316 0.08 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 　 　
316Cu 0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 2.0-3.0 　
316L
(12Ni)		 0.03 1.00 2.00 0.045 0.03 12.0-15.0 16.0-18.0 2.0-3.0 　 　
316L
(10Ni)		 0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 　 　
321 0.08 1.00 2.00 0.045 0.03 9.00-13.0 17.0-19.0 　 Ti≤5*C%
410 0.15 　 1.00 　 0.03 　 11.5-13.5 　 　 　
416 0.15 　 1.25 　 ≥0.15 　 12.0-14.0 　 　 　
420 0.26-0.4 　 1.00 　 0.03 　 12.0-14.0 　 　 　
410L 0.30 1.00 1.00 0.040 0.03 　 11.5-13.5 　 　 　
430 0.12 0.75 1.00 0.040 0.03 　 16.0-18.0 　 　 　
430F 0.12 1.00 1.25 0.060 0.15 　 16.0-18.0 　 　 　
631(J1) 0.09 1.00 1.00 0.040 0.03 6.50-8.50 16.0-18.0 　 　 AL 0.75-1.5
2520 0.08 1.00 2.00 0.035 0.03 19.0-22.0 24.0-26.0 　 　 　
410 0.015 1.00 1.00 0.04 0.03 　 11.5-13.5 　 　 　

Finish

PLAIN ZP YZP BLACK HDG DACROMET GEOMET CHROME NICKEL AND SO ON

PACKING

QBH BULK

20-25KG/CTN,36CTNS/PALLET

20-30KG/BAGS,36BAGS/PALLET

ONE TON/BOXES

50KG/ IRON DRUM,12 IRON DRUMS/PALLET

QBH SMALL PACKING

Packing in small boxes according to customer’s requirements

Packing in plastic bag according to customer’s requirements

QBH PALLET TYPE

SOLID WOOD FUMIGATION PALLET

EURO Pallet

THREE SPLINT PALLET

WOODEN BOX

The advantages of QBH

  • QBH brand sales to the main quality assurance.
  • Years of export trade management, excellent service, word-of-mouth guarantee.
  • By working with TUV,escort for quality.
  • Customization of non-standard parts can be made according to customer's requirements and drawings.
  • For quality customers,we can provide a certain credit period.
