DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt
Specifications
Brand Name :
QBH
Model Number :
DIN444 M6-M36
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
900kg
Price :
Negotiation
Payment Terms :
L/C, T/T,OA
Supply Ability :
200TON/MONTH
Delivery Time :
30DAYS
Packaging Details :
BULK or according customer requirement
Material :
Carbon steel stainless steel
standard :
DIN444
SIZE :
M6-M36
SURFACE :
ZP YZP HDG BLACK
Description

DIN444 Eyebolts Carbon Steel ZP HDG YZP BLACK Or Stainless Steel 304 316 For A Range Of Maritime Activities.

Description

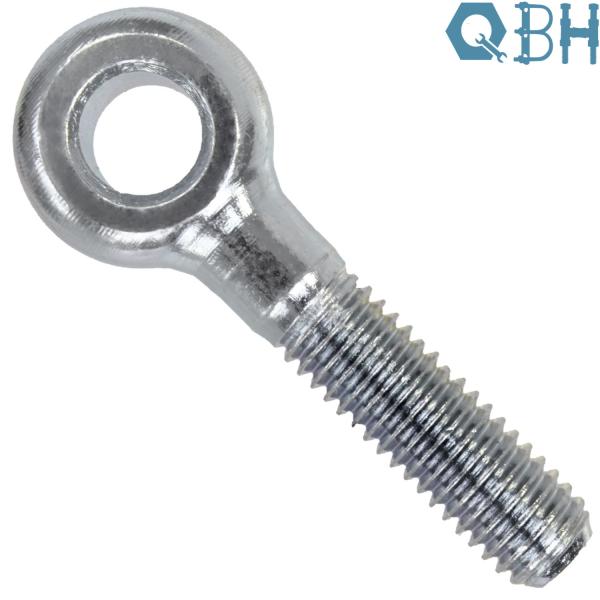

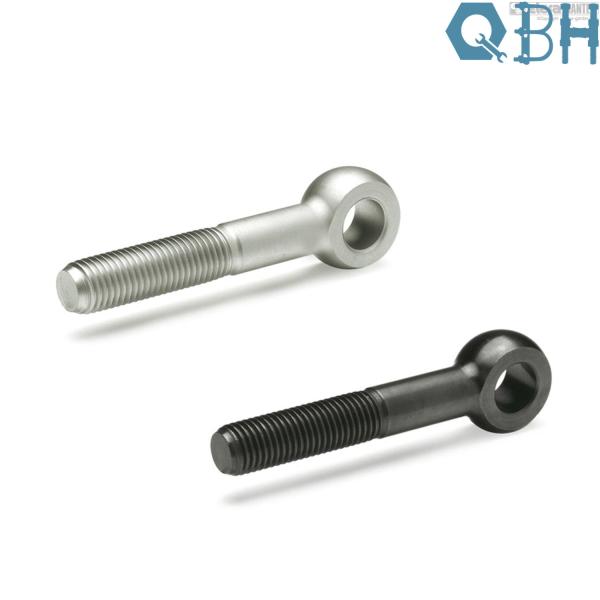

DIN 444 eye swing eye bolt,also known as lifting eye bolt,conform to DIN 444 specification,made from superior carbon steel,the surface finish is Electric galvanized.
We have a varied selection of hard-wearing marine grade eye bolts that are suitable for a range of maritime activities.
Our range of DIN 444 Eye Swing Bolts is available in standard as well as customized sizes.
Stainless steel DIN 444 eye swing bolt is also available.

DIN 444 - Eyebolts

Current norm: DIN 444
Equivalent norms: CSN 021167; PN 82425; UNI 6058;

DIN444 ZP HDG YZP BLACK M6 To M36 Carbon Steel Bolt

Screw Thread
d
M5 M6 M8 M10 M12 M16 M20 M24 (M27)
P Pitch
b L≤125
125＜L≤200
L＞200
d2 min=nominal size
max
Sd Tpye A, B and C max
Tpye A min
Tpye B and C min
r Nominal Size
max
min
s Type A max
min
Type B and C max
min
0.8 1 1.25 1.5 1.75 2 2.5 3 3
16 18 22 26 30 38 46 54 60
- - 28 32 36 44 52 60 66
- - - - 49 57 65 73 79
5 6 8 10 12 16 18 22 24
5.03 6.03 8.036 10.036 12.043 16.043 18.043 22.052 24.052
12 14 18 20 25 32 40 45 50
10.9 12.9 16.9 18.7 23.7 30.4 38.4 43.4 48.4
11.57 13.57 17.57 19.48 24.48 31.38 39.38 44.38 49.38
2.5 4 4 4 6 6 6 10 10
3.75 6 6 6 9 9 9 15 15
1.875 3 3 3 4.5 4.5 4.5 7.5 7.5
8 9 11 14 17 19 24 28 30
7.52 8.52 10.3 13.3 16.3 18.16 23.16 27.16 29.16
6 7 9 12 14 17 22 25 27
5.88 6.85 8.85 11.82 13.82 16.82 21.79 24.79 26.79

Screw Thread
d
(M27) M30 M30 (M33) M36 M36 (M39) (M39)
P Pitch
b L≤125
125＜L≤200
L＞200
d2 min=nominal size
max
Sd Tpye A, B and C max
Tpye A min
Tpye B and C min
r Nominal Size
max
min
s Type A max
min
Type B and C max
min
3 3.5 3.5 3.5 4 4 4 4
60 66 66 - - - - -
66 72 72 78 84 84 90 90
79 85 85 91 97 97 103 103
25 27 28 30 32 33 35 36
25.052 27.052 28.052 30.052 32.062 33.062 35.062 36.062
50 55 55 60 65 65 70 70
48.4 53.1 53.1 58.1 63.1 63.1 68.1 68.1
49.38 54.26 54.26 59.26 64.26 64.26 69.26 69.26
10 10 10 16 16 16 16 16
15 15 15 22.4 22.4 22.4 22.4 22.4
7.5 7.5 7.5 12.8 12.8 12.8 12.8 12.8
30 34 34 38 41 41 46 46
29.16 33 33 37 40 40 45 45
27 30 30 34 38 38 41 41
26.79 29.79 29.79 33.75 37.75 37.75 40.75 40.75

Materand Chemical compstitionials

Carbon steel

1008

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu Al
0.06 0.06 0.33 0.013 0.003 0.01 0 0.01 0.028

1035

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.34 0.13 0.73 0.012 0.002 0.02 0.01 0.02

10B21

CHEMICAL COMPOSI %
C Si Mn P S Cr B
0.2 0.04 0.81 0.017 0.007 0.017 0.0021

1045

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.45 0.23 0.58 0.014 0.006 0.057 0.008 0.016

40CR

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu
0.4 0.21 0.54 0.015 0.008 0.95 0.02 0.02

35CRMO

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu Mo
0.35 0.22 0.59 0.01 0.003 0.93 0.01 0.01 0.21

42CRMO

CHEMICAL COMPOSI %
C Si Mn P S Cr Ni Cu Mo
0.42 0.27 0.92 0.013 0.004 1.01 0.03 0.04 0.2

Finish

PLAIN ZP YZP BLACK HDG DACROMET GEOMET CHROME NICKEL AND SO ON

Stainless steel

CHEMICAL COMPOSI(% )
Type C Si Mn P S Ni Cr Mo Cu Others
≤ ≤ ≤ ≤ ≤ ≥ ≥ ≥ ≈ 　
201Cu 0.08 1.00 7.5-10 0.06 0.03 4.00-6.00 14.0-17.0 　 2.0-3.0 　
201 0.15 1.00 8.50 0.06 0.03 3.50-5.50 16.0-18.0 　 　 N≤0.25
130M/202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0 　 　 N≤0.25
202 0.15 1.00 7.5-10 0.06 0.03 4.00-6.00 17.0-19.0 　 　 　
301 0.15 1.00 2.00 0.045 0.03 5.00-8.00 16.0-18.0 　 　 　
302 0.15 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0 　 　 　
XM7
(302HQ)		 0.08 1.00 2.00 0.045 0.03 8.50-10.5 17.0-9.00 　 3.0-4.0 　
303 0.15 1.00 2.00 0.20 ≥0.15 8.00-10.0 17.0-19.0 ≤0.60 　 　
303Cu 0.15 1.00 3.00 0.20 ≥0.15 8.0-10.0 17.0-19.0 ≤0.60 1.5-3.5 　
304 0.08 1.00 2.00 0.045 0.03 8.00-10.0 18.0-20.0 　 　 　
304H 0.08 1.00 2.00 0.045 0.03 8.0-10.0 18.0-20.0 　 　 　
304HC 0.08 1.00 2.00 0.045 0.03 8.00-10.0 17.0-19.0 　 2.0-3.0 　
304HCM 0.08 1.00 2.00 0.045 0.03 8.0-10.0 17.0-19.0 　 2.5-4.0 　
304L 0.03 1.00 2.00 0.045 0.03 9.0-13.0 18.0-20.0 　 　 　
304M 0.06 1.00 2.00 0.045 0.03 8.50-10.0 18.0-20.0 　 　 　
305 0.12 1.00 2.00 0.045 0.03 10.5-13.0 17.0-19.0 　 　 　
305J1 0.08 1.00 2.00 0.045 0.03 11.0-13.5 16.5-19.0 　 　 　
309S 0.08 1.00 2.00 0.045 0.03 12.0-15.0 22.0-14.0 　 　 　
310S 0.08 1.50 2.00 0.045 0.03 19.0-22.0 24.0-26.0 　 　 　
314 0.25 15.-3.0 2.00 0.040 0.03 19.0--22.0 24.0-26.0 　 　 　
316 0.08 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 　 　
316Cu 0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 2.0-3.0 　
316L
(12Ni)		 0.03 1.00 2.00 0.045 0.03 12.0-15.0 16.0-18.0 2.0-3.0 　 　
316L
(10Ni)		 0.03 1.00 2.00 0.045 0.03 10.0-14.0 16.0-18.0 2.0-3.0 　 　
321 0.08 1.00 2.00 0.045 0.03 9.00-13.0 17.0-19.0 　 Ti≤5*C%
410 0.15 　 1.00 　 0.03 　 11.5-13.5 　 　 　
416 0.15 　 1.25 　 ≥0.15 　 12.0-14.0 　 　 　
420 0.26-0.4 　 1.00 　 0.03 　 12.0-14.0 　 　 　
410L 0.30 1.00 1.00 0.040 0.03 　 11.5-13.5 　 　 　
430 0.12 0.75 1.00 0.040 0.03 　 16.0-18.0 　 　 　
430F 0.12 1.00 1.25 0.060 0.15 　 16.0-18.0 　 　 　
631(J1) 0.09 1.00 1.00 0.040 0.03 6.50-8.50 16.0-18.0 　 　 AL 0.75-1.5
2520 0.08 1.00 2.00 0.035 0.03 19.0-22.0 24.0-26.0 　 　 　

PACKING

QBH BULK

20-25KG/CTN,36CTNS/PALLET

20-30KG/BAGS,36BAGS/PALLET

ONE TON/BOXES

50KG/ IRON DRUM,12 IRON DRUMS/PALLET

QBH SMALL PACKING

Packing in small boxes according to customer’s requirements

Packing in plastic bag according to customer’s requirements

QBH PALLET TYPE

SOLID WOOD FUMIGATION PALLET

EURO Pallet

THREE SPLINT PALLET

WOODEN BOX

The advantages of QBH

  • QBH brand sales to the main quality assurance.
  • Years of export trade management, excellent service, word-of-mouth guarantee.
  • By working with TUV,escort for quality.
  • Customization of non-standard parts can be made according to customer's requirements and drawings.
  • For quality customers,we can provide a certain credit period.
